L80018 Bend (body) 5" 50 bar CS/ZN

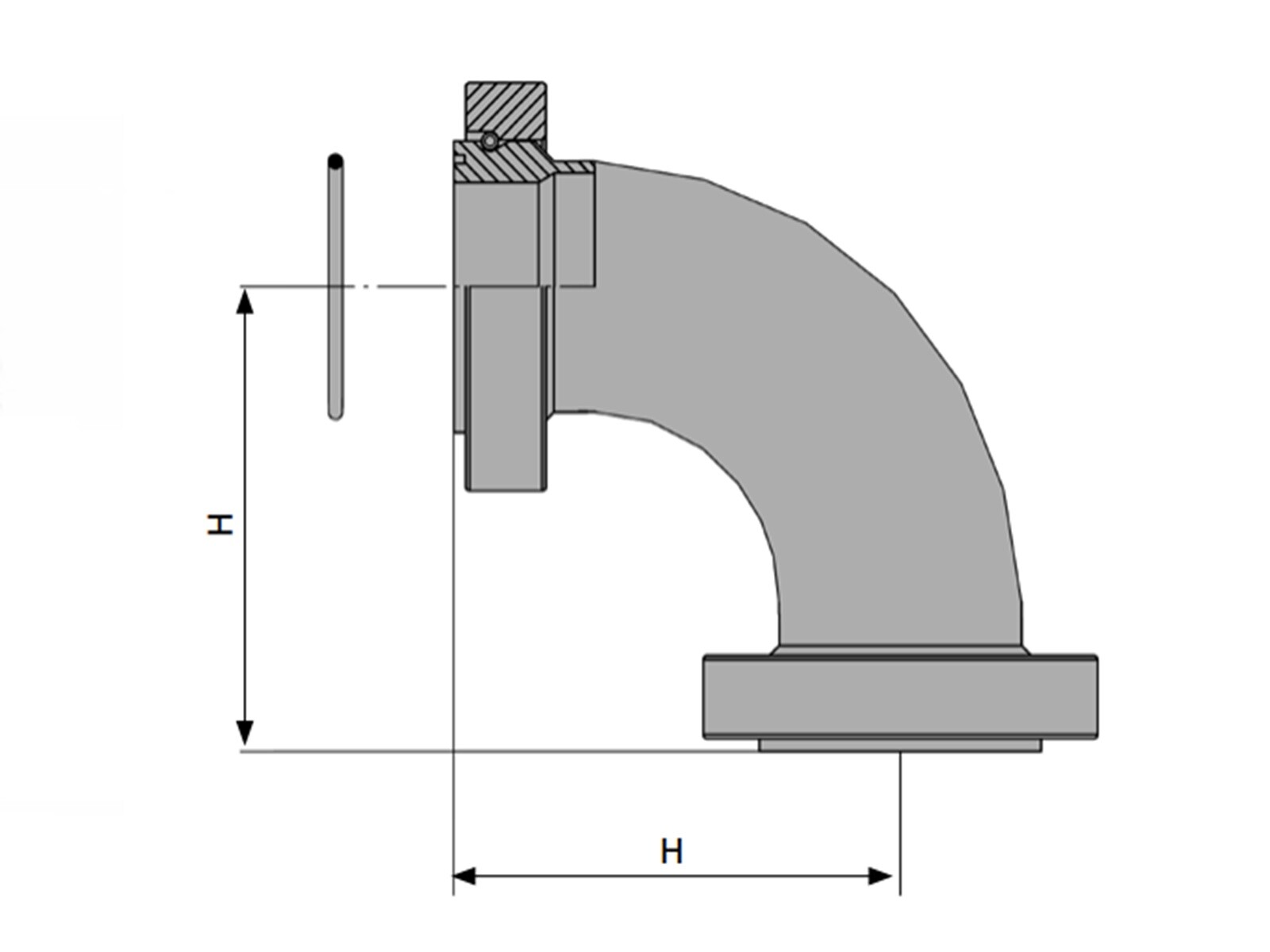

GS-Hydron 50bar 90° pipe angle (not including flanges, gaskets or lock ring).
Partnumber:
GSL80018
Package size:
1 kpl
Min. order quantity is:
1 kpl
Bend radius
190.5 mm
Brand Name
GS-Hydro
Flange
5 "
Flange SAE/DIN
50BAR
H
236 mm
Material
Steel
Size
5 "
Surface treatment
Electro zinc plated
Temperature max.
+60 °C
Temperature min.
-20 °C
Package size
1 kpl
Barcode
487255
Gross weight
7,39 Kg
Net weight
7,39 Kg
Country of origin
IT
GS-Hydron 50bar 90° pipe angle (not including flanges, gaskets or lock ring).
Note: Opening 3D files requires a program that supports the file format
