132N Flare flange 90° (SAE) 2" 16 bar CS/ZN
GS-Hydron 10-40bar series 90° spreadable loose fitting.
Partnumber:
GS132N
Package size:
1 kpl
Min. order quantity is:
1 kpl

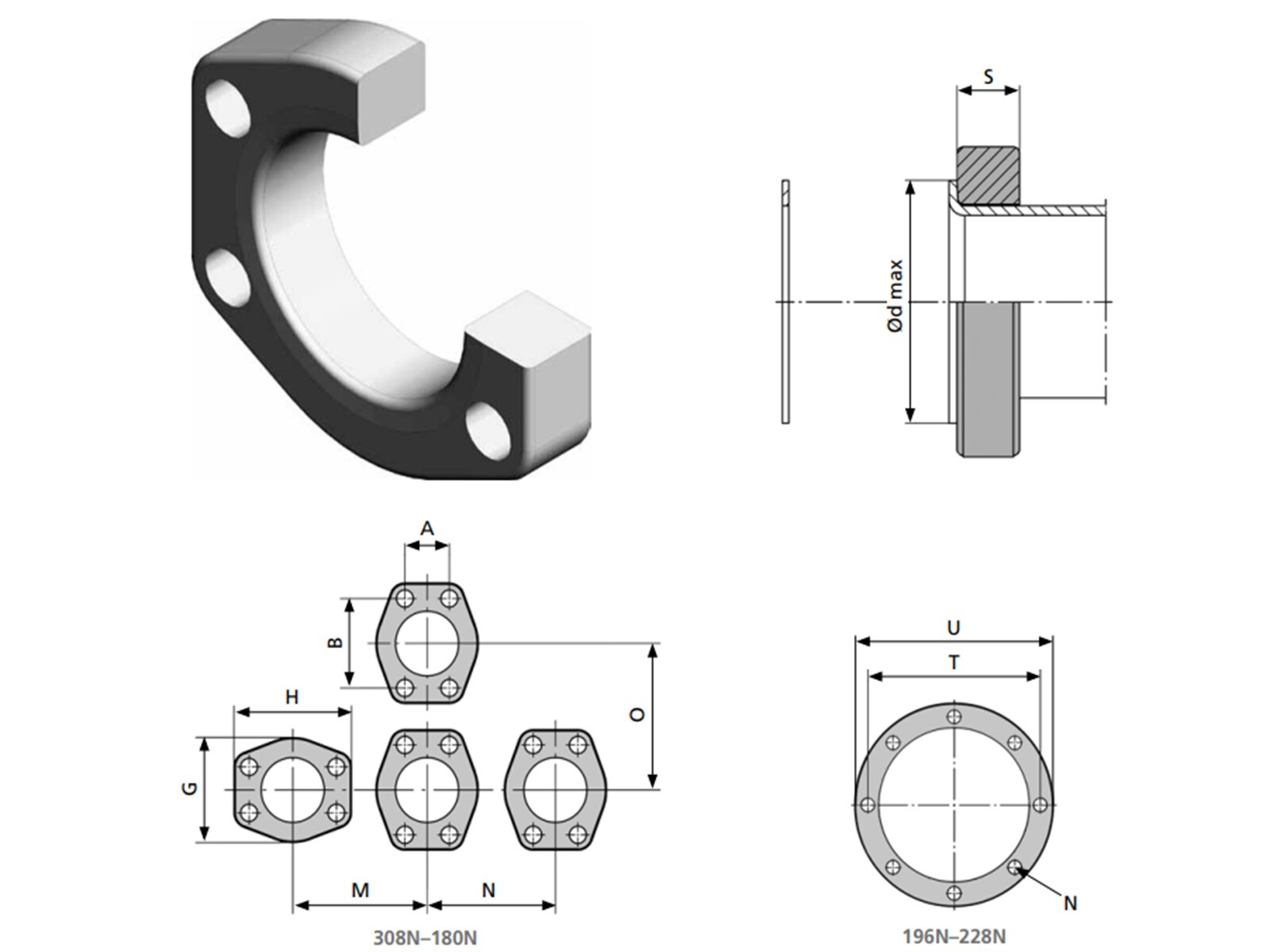

A
42,9 mm
B
77,8 mm
Bolt dimension
M12x70 mm
Brand Name
GS-Hydro
Diameter pipe
60 mm
Flange SAE/DIN
16BAR
G
97 mm
H
102 mm
M
104 mm
Material
Steel
N
102 mm
Number of bolt holes
4
O
107 mm
Pressure max.
16 bar
S
20 mm
Size
2 "
Surface treatment
Electro zinc plated
Temperature max.
+60 °C
Temperature min.
-20 °C
d
76 mm
Package size
1 kpl
Barcode
486475
Gross weight
0,70 Kg
Net weight
0,70 Kg
Country of origin
IT
GS-Hydron 10-40bar series 90° spreadable loose fitting.
Note: Opening 3D files requires a program that supports the file format
