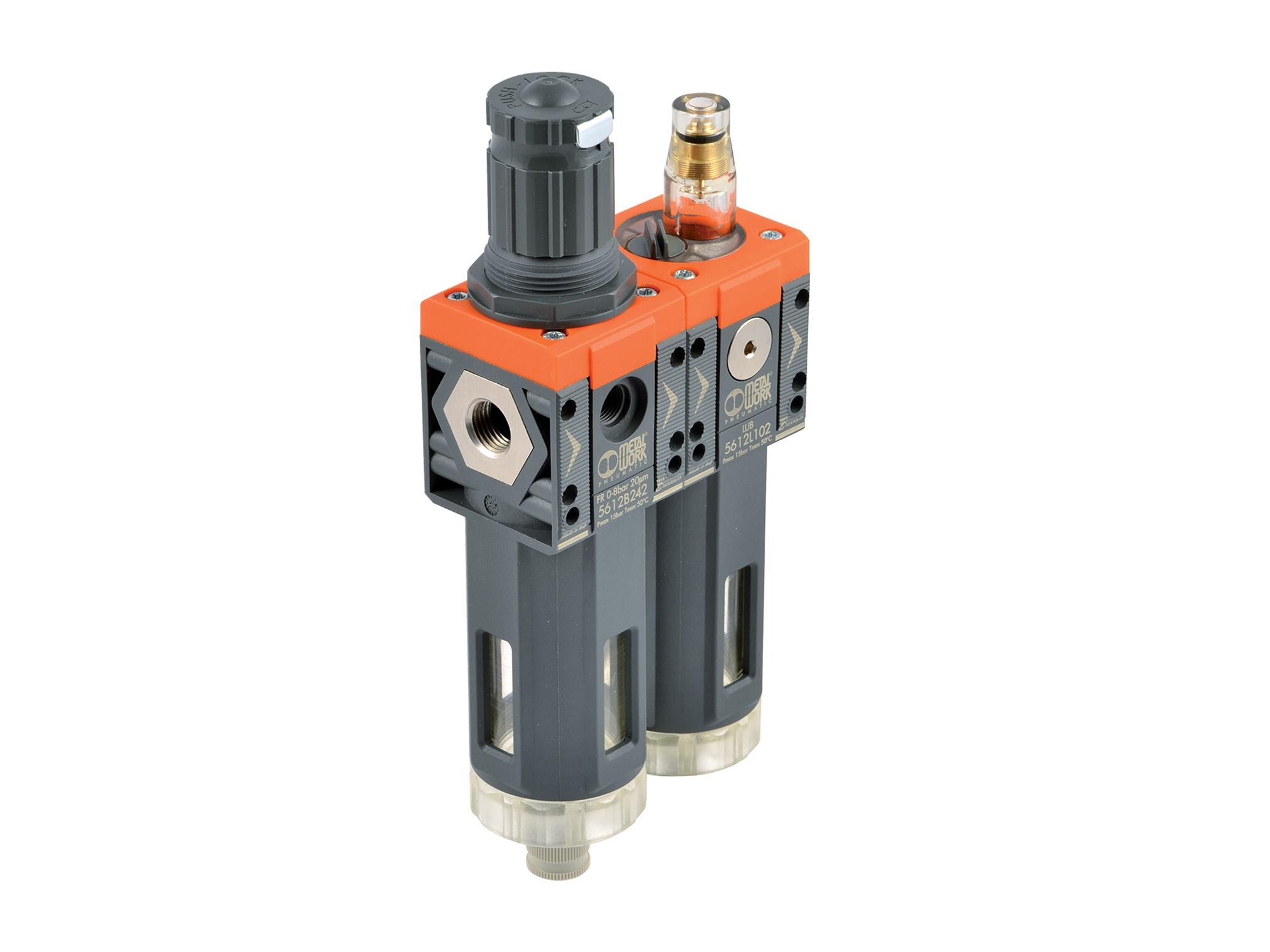

Filter-regulator + lubricator
R 3/8" 20um 0-2bar manual drain plastic frame
Partnumber:
FRLUB06-SY1
Package size:
1 pcs
Min. order quantity is:
1 pcs

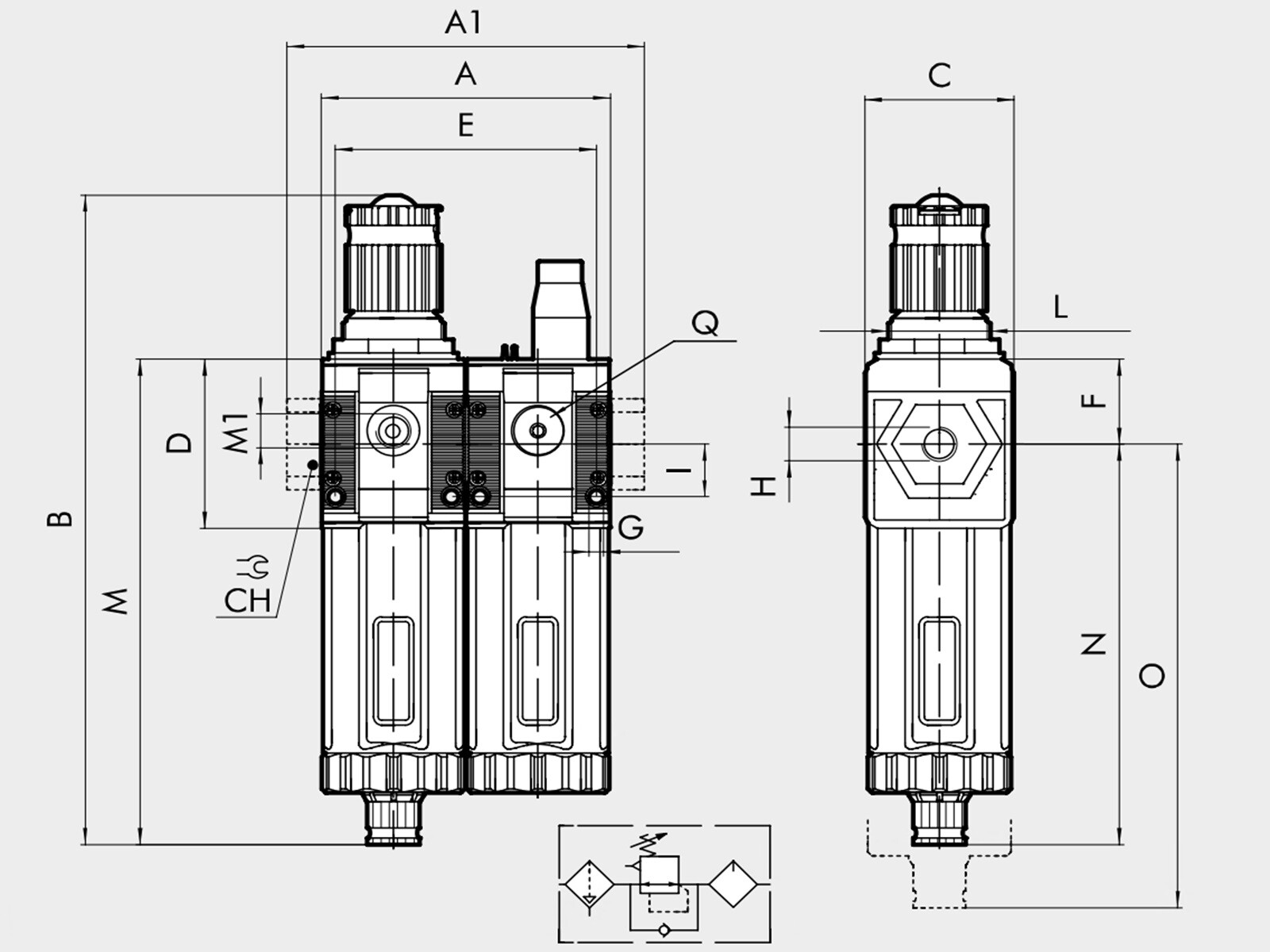

A
84 mm
A1
86 mm
B
198 mm
Brand Name
Metal Work
C
44 mm
D
51.5 mm
E
75.3 mm
F
25.8 mm
Filtration degree
20 my
Flow air nominal
350 lpm
G
Reikä M4 pultille
H
G 3/8" BSP
I
16 mm
L
M30x1.5
M
148 mm
M1
G 1/8" BSP
Material
Technopolymer
Model code
5613B24L103
N
122.2 mm
O
202 mm
Pressure max.
15 bar
Pressure setting max.
8 bar
Pressure setting min.
0 bar
Q
G 1/8" BSP
Sealing material
NBR
Temperature max.
+50 °C
Temperature min.
-10 °C
Thread
G 3/8 BSP
Thread inner
G 3/8 BSP
Package size
1 pcs
Barcode
450198
Gross weight
Kg
Net weight
0,55 Kg
Country of origin
deu
Intrastat code
11111111
R 3/8" 20um 0-2bar manual drain plastic frame
Note: Opening 3D files requires a program that supports the file format
