1" SAE split flange halves 6000 PSI
Flange half SAE 6000 PSI, according to ISO 6162-2 Sold as 1 half, for a complete flange order two.
Partnumber:
FC3425-16
Package size:
50 kpl
Min. order quantity is:
1 kpl

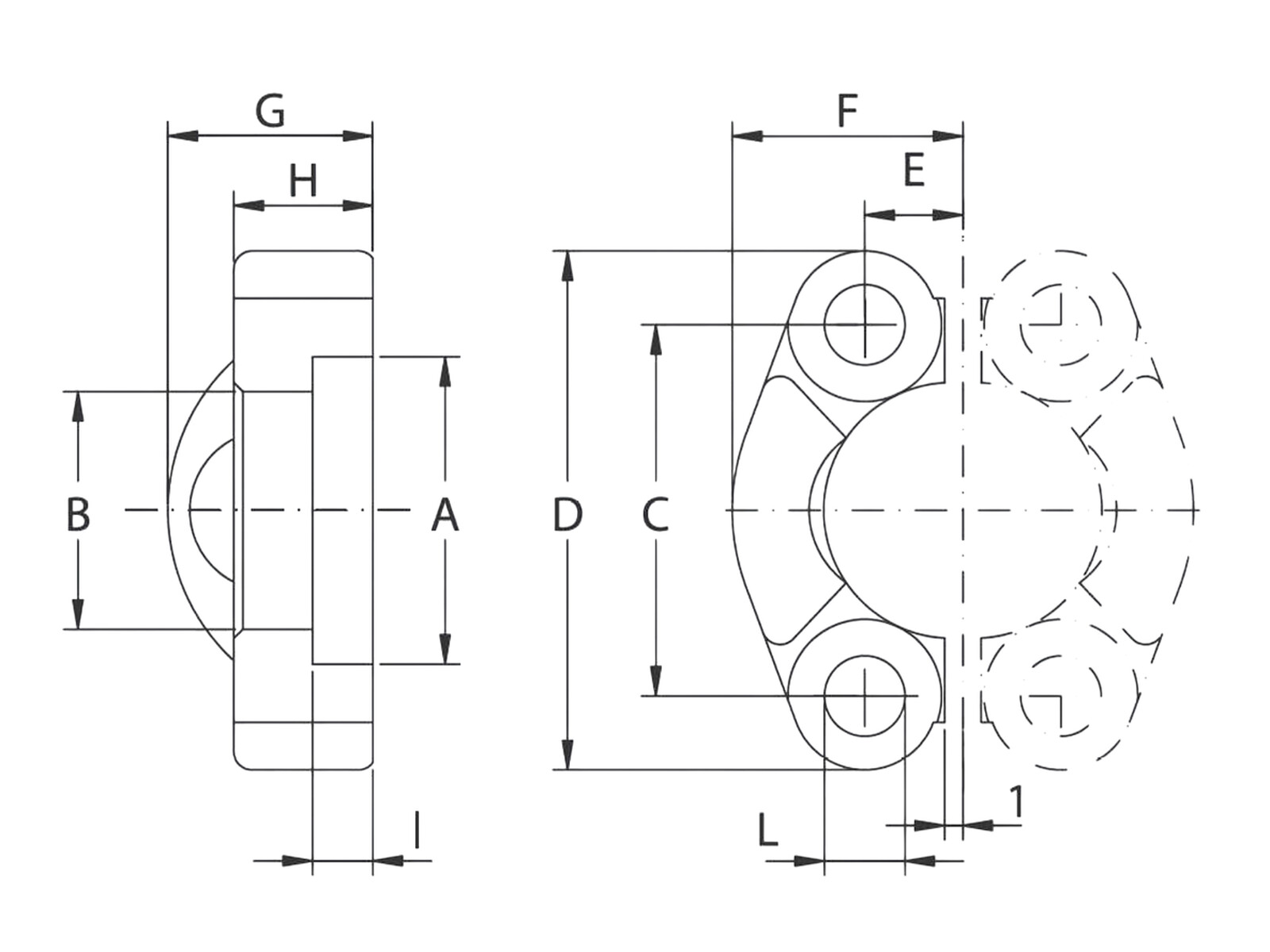

A
48,41 mm
B
38,86 mm
Bolt dimension
M12x45 mm
Brand Name
Hydraspecma
C
57,15 mm
D
81 mm
Diameter flange
38.8 mm
E
13,89 mm
F
34,8 mm
Flange
1 "
Flange SAE/DIN
6000 PSI
G
33 mm
H
24 mm
I
9,02 mm
L
13 mm
Material
Steel
Number of bolts
2
O-ring
32,93X3,53 mm
Pressure max.
414 bar
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Temperature max.
+100 °C
Temperature min.
-30 °C
Package size
50 kpl
Barcode
396473
Gross weight
0,27 Kg
Net weight
0,27 Kg
Country of origin
DEU
Intrastat code
73079100
Flange half SAE 6000 PSI, according to ISO 6162-2 Sold as 1 half, for a complete flange order two.
