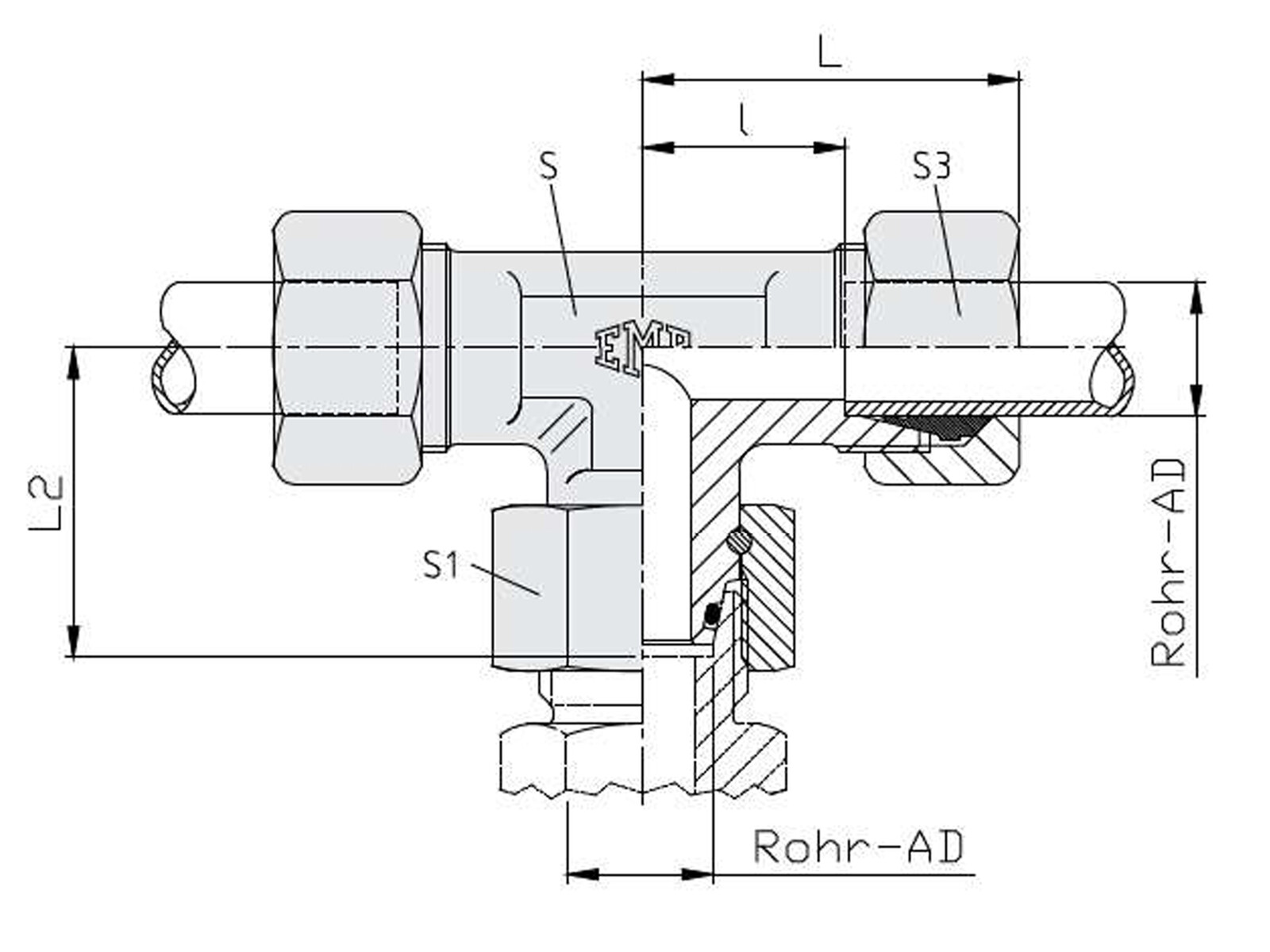

Adjustable Tee - ø14S - with O-ring FI-ETD-14S-B-W3-DKO
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Artikelnummer:
EES-14DKOX
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Gates Tube Fittings GmbH
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
14 mm
L
40 mm
L2
35 mm
Material
Steel
Model code
FI-ETD-14S-V-W3-DKO
Pressure max.
630 bar
REACH compliant
Yes
RoHs compliant
Yes
S
19 mm
S1
27 mm
S3
27 mm
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+200 °C
Temperature min.
-25 °C
Thread inner metric
M22x1,5
Thread outer metric
M22x1,5
l
22 mm
Förpackningsstorlek
1 pcs
Streckkod
394361
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
DEU
Intrastat artikelkod
73071110
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
