Adapter Rak Ø8 mm 1/4
Adapter Rak Ø8 mm 1/4
Osanumero:
C02250828
Pakkauskoko:
1 pcs
Pienin tilausmäärä on:
1 pcs

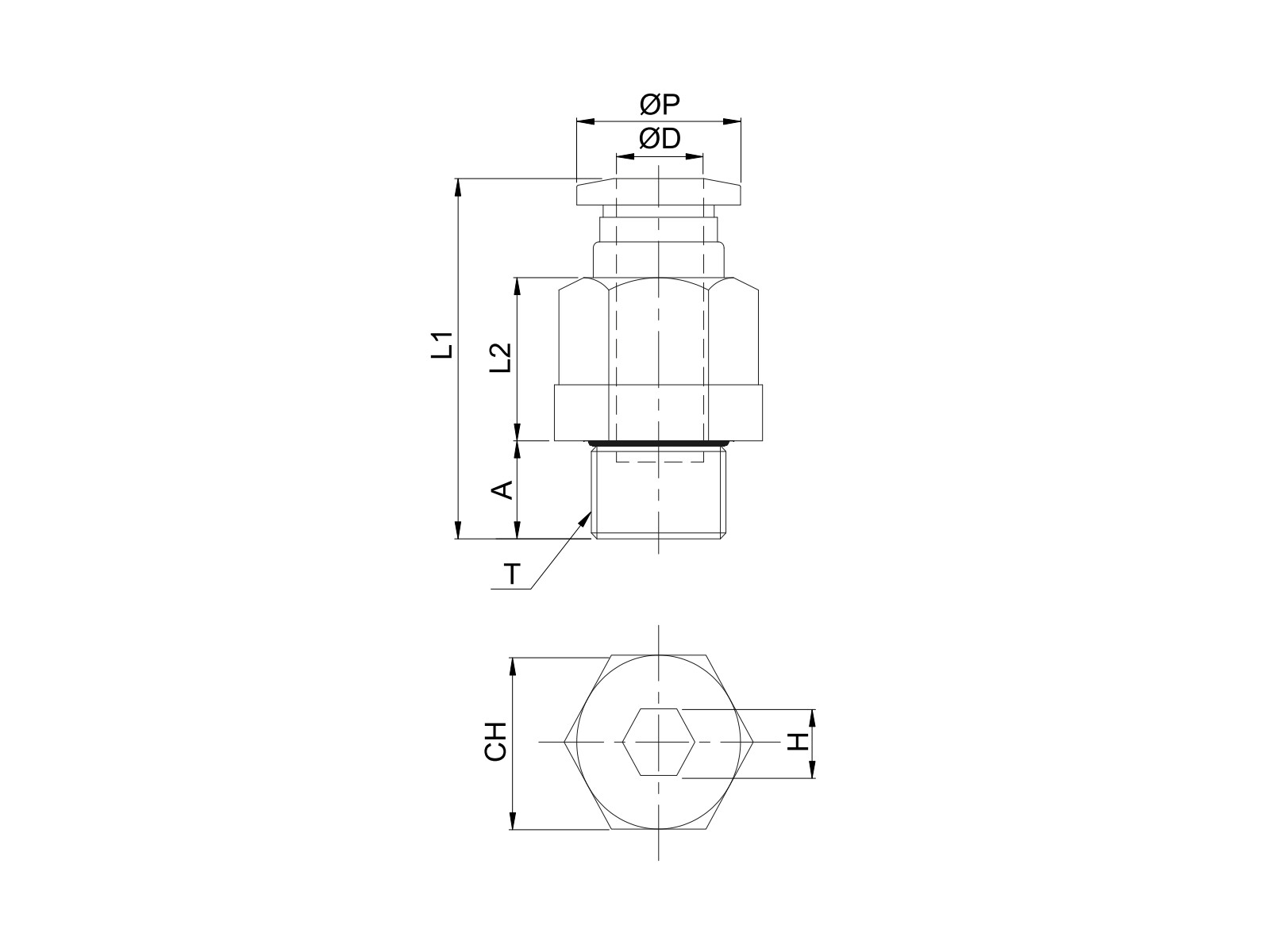

A
5,8 mm
Angle
0 °
Area of use
Compressed air, Vacuum
Brand Name
Norgren
CH
14 mm
Diameter pipe
8 mm
H
6 mm
L1
22,2 mm
L2
7 mm
Material
Brass, NBR, PBT-plast, POM(Acetal), Stainless steel, Zinc
Pressure max.
16 bar
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR
Series
Pneufit C
Standard
Silicone Free
Standard ISO
ISO 14743
T
G 1/4 BSP
Temperature max.
+60 °C
Temperature min.
-20 °C
Thread
G 1/4 BSP
Thread ISO standard
ISO 228
Torque tightening
15 Nm
Tube Insertion Depth
18.8 mm
Tube Tollerance
ØD1 ± 0,1 mm
Vacuum max.
-0.9 bar
ØD
8 mm
ØP
13,8 mm
Pakke str.
1 pcs
Stregkode
170612
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
swe
Adapter Rak Ø8 mm 1/4
