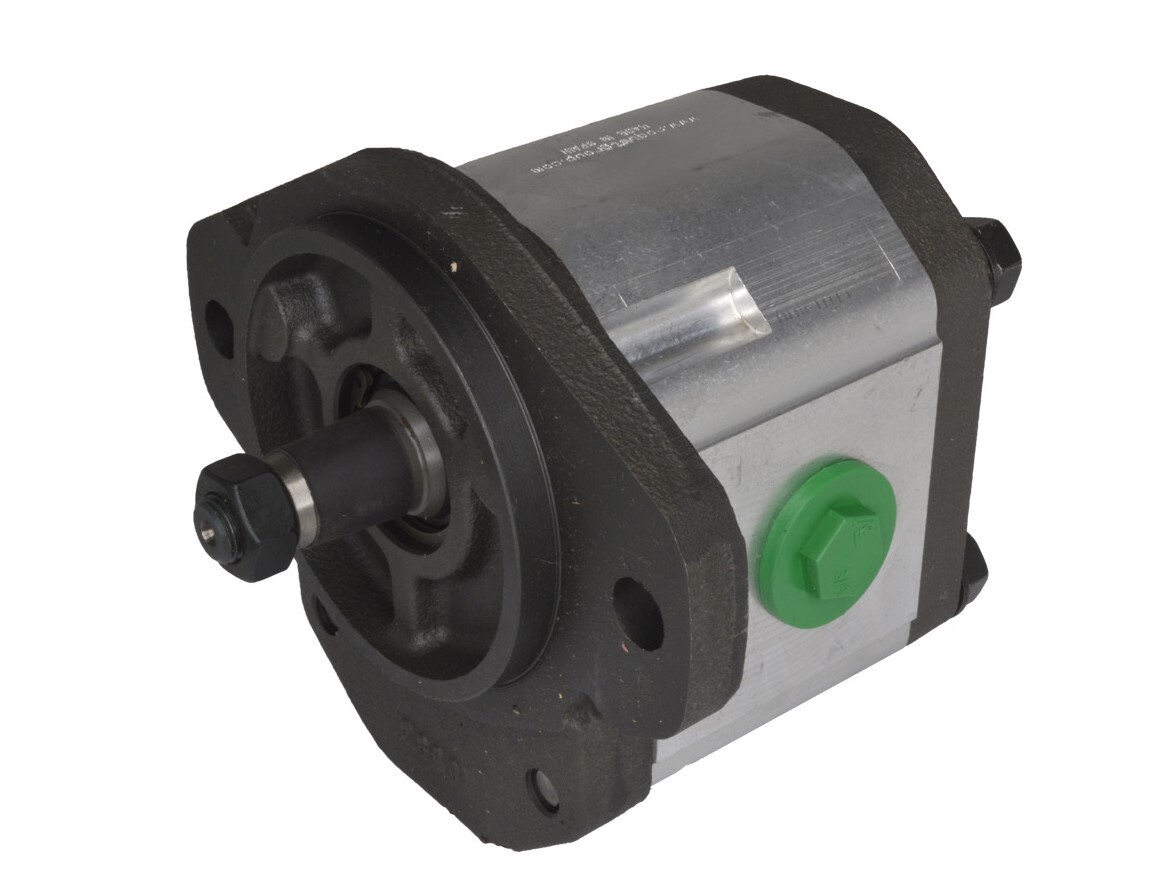

Gear pump 44cm³/r
1:8 kartio. SAE B. kierteet
Partnumber:
1PLA66IE09R
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Hydraspecma
Contamination level max.
-/19/16 - ISO 4406
Continuous rotation max.
2300 rpm
Displacement
44 cm3
Inlet
G 1 BSP
Material
Aluminium
Mounting flange
SAE-B2
Number of mounting holes
2
Oil viscocity recommended
20 - 80 cSt
Outlet
G 3/4 BSP
Pressure intermittent max.
225 bar
Pump group
3
Recess
101,6 mm
Shaft cone
1:8
Shaft keyway
4,0 mm
Package size
1 kpl
Barcode
453573
Gross weight
Kg
Net weight
9,14 Kg
Country of origin
esp
Intrastat code
84136031
1:8 kartio. SAE B. kierteet
