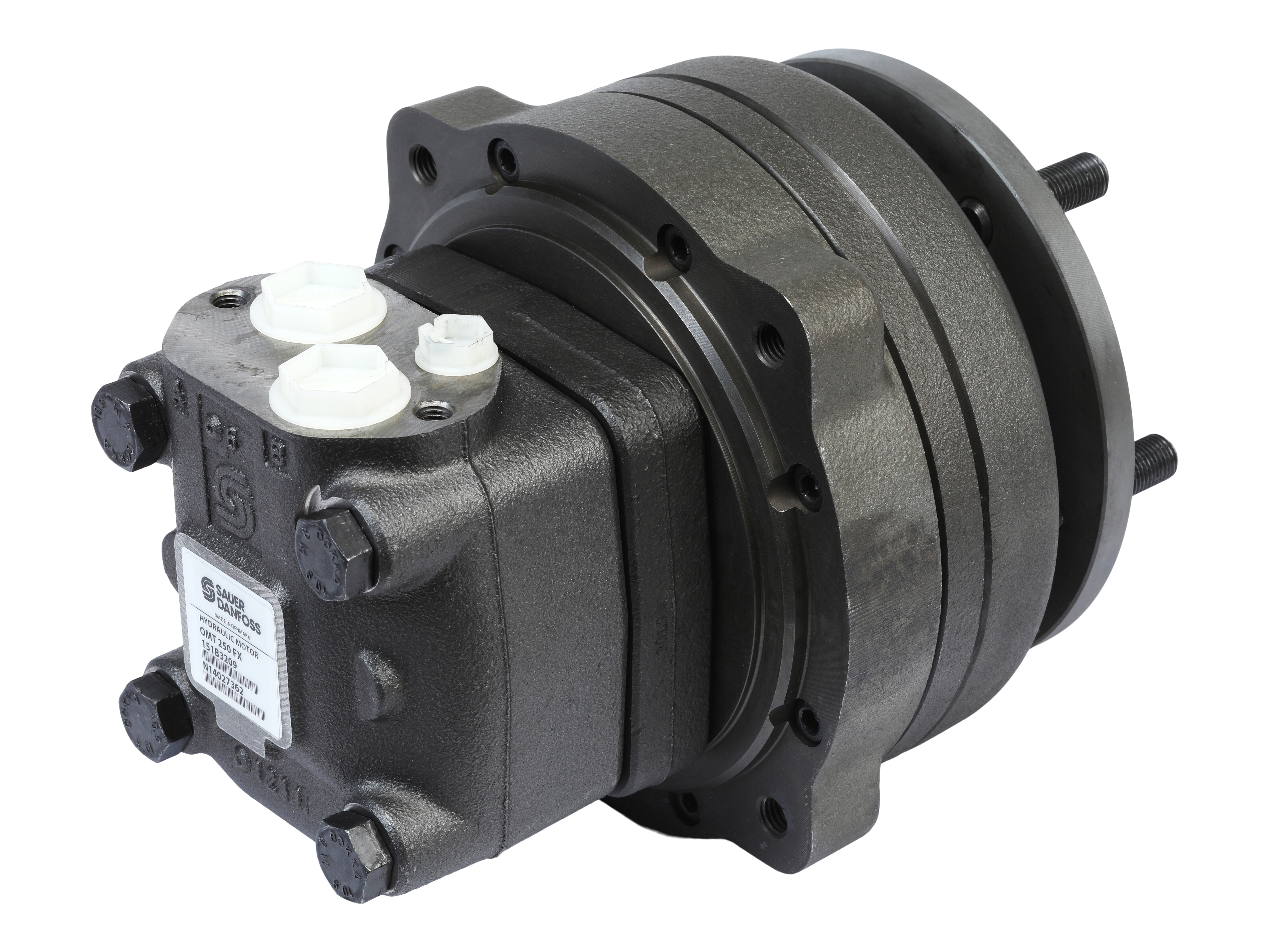

OMT 200 FX HYDRAULIC MOTOR
Jarrun pitomomentti 1200 Nm
Varenummer:
151B3208
Pakke str.:
1 kpl
Min. bestillingsenhed er:
1 kpl
Brand Name
Danfoss
Contamination level max.
22/20/16 - ISO 4406
Continuous power max.
33.5 kW
Continuous rotation max.
625 rpm
Displacement
201.4 cm3
Drainport
G 1/4 BSP
Holes circle
200 mm
L
195 mm
L1
16,5 mm
L2
145 mm
L3
82 mm
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
200 bar
Recess
107,0 mm
Shaft cone
1:10
Shaft type
Wheelflange
Temperature ambient max.
+90 °C
Temperature ambient min.
-30 °C
Torque continuous max.
590 Nm
Working ports
G 3/4 BSP
Förpackningsstorlek
1 kpl
Streckkod
333664
Bruttovikt
32,00 Kg
Nettovikt
32,00 Kg
Ursprungsland
Intrastat artikelkod
84122981
Jarrun pitomomentti 1200 Nm
