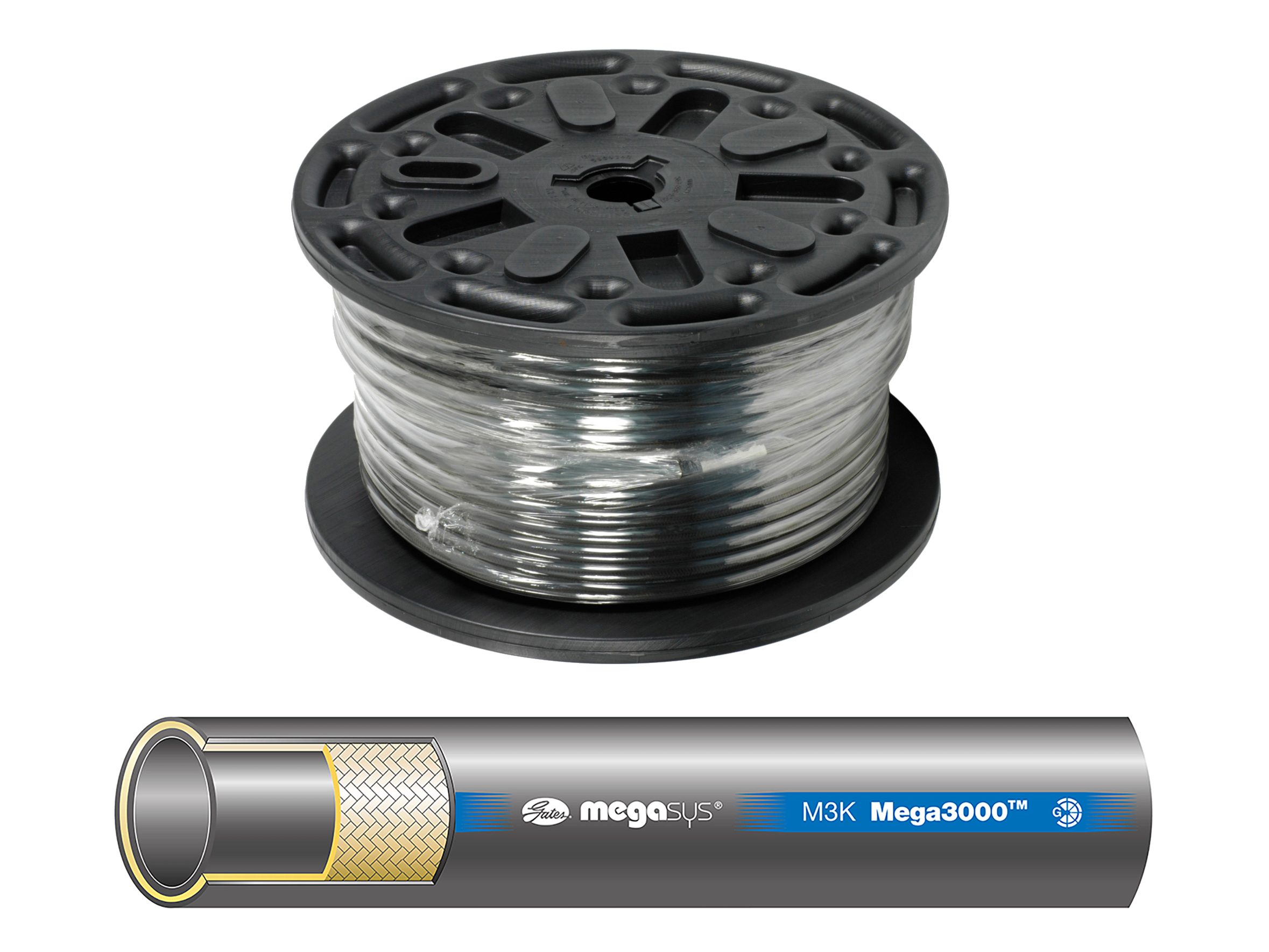

    M3K hydraulic hoses

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Hose size Pressure max. Hose type Bend radius
    03M3K 3/16" Hydraulic hose M3K - 225 bar - 1SC 3/16 " 225 bar M3K 46 mm
    04M3K 1/4" Hydraulic hose M3K - 225 bar - 1SC 1/4 " 225 bar M3K 40 mm
    04M3K-RL200 1/4" Hydraulic hose M3K - 225 bar - 1SC - 200M reel 1/4 " 225 bar M3K 40 mm
    05M3K 5/16" Hydraulic hose M3K - 225 bar - 1SC 5/16 " 225 bar M3K 45 mm
    06M3K 3/8" Hydraulic hose M3K - 225 bar - 1SC 3/8 " 225 bar M3K 50 mm
    06M3K-RL150 3/8" Hydraulic hose M3K - 225 bar - 1SC - 150M reel 3/8 " 225 bar M3K 50 mm
    08M3K 1/2" Hydraulic hose M3K - 225 bar - 1SC 1/2 " 225 bar M3K 70 mm
    08M3K-RL100 1/2" Hydraulic hose M3K - 225 bar - 1SC - 100M reel 1/2 " 225 bar M3K 70 mm
    10M3K 5/8" Hydraulic hose M3K - 225 bar - 2SC 5/8 " 225 bar M3K 75 mm
    12M3K 3/4" Hydraulic hose M3K - 225 bar - 2SC 3/4 " 225 bar M3K 95 mm
    16M3K 1" Hydraulic hose M3K - 225 bar - 2SC 1 " 225 bar M3K 115 mm
    16M3K-RL50 1" Hydraulic hose M3K - 225 bar - 2SC - 50M reel 1 " 225 bar M3K 115 mm
    Area of use
    Diesel, Grease, Oil, Water
    Brand Name
    Gates
    Cover
    NBR/PVC
    Flameresistant
    Yes
    Hose type
    M3K
    Hoseapprovals
    ABS, BV, DNV, LR, MSHA
    Pressure burst min.
    900
    Pressure max.
    225
    REACH compliant
    Yes
    RoHs compliant
    Yes
    Standard EN
    EN 857 1SC, EN 857 2SC
    Standard ISO
    ISO 11237 R17, ISO 18752 TYPE B
    Standard SAE
    SAE 100R17
    Temperature intermittent max.
    +120
    Temperature max.
    +100
    Temperature min.
    -40
    Tube
    NBR (Nitrile)
