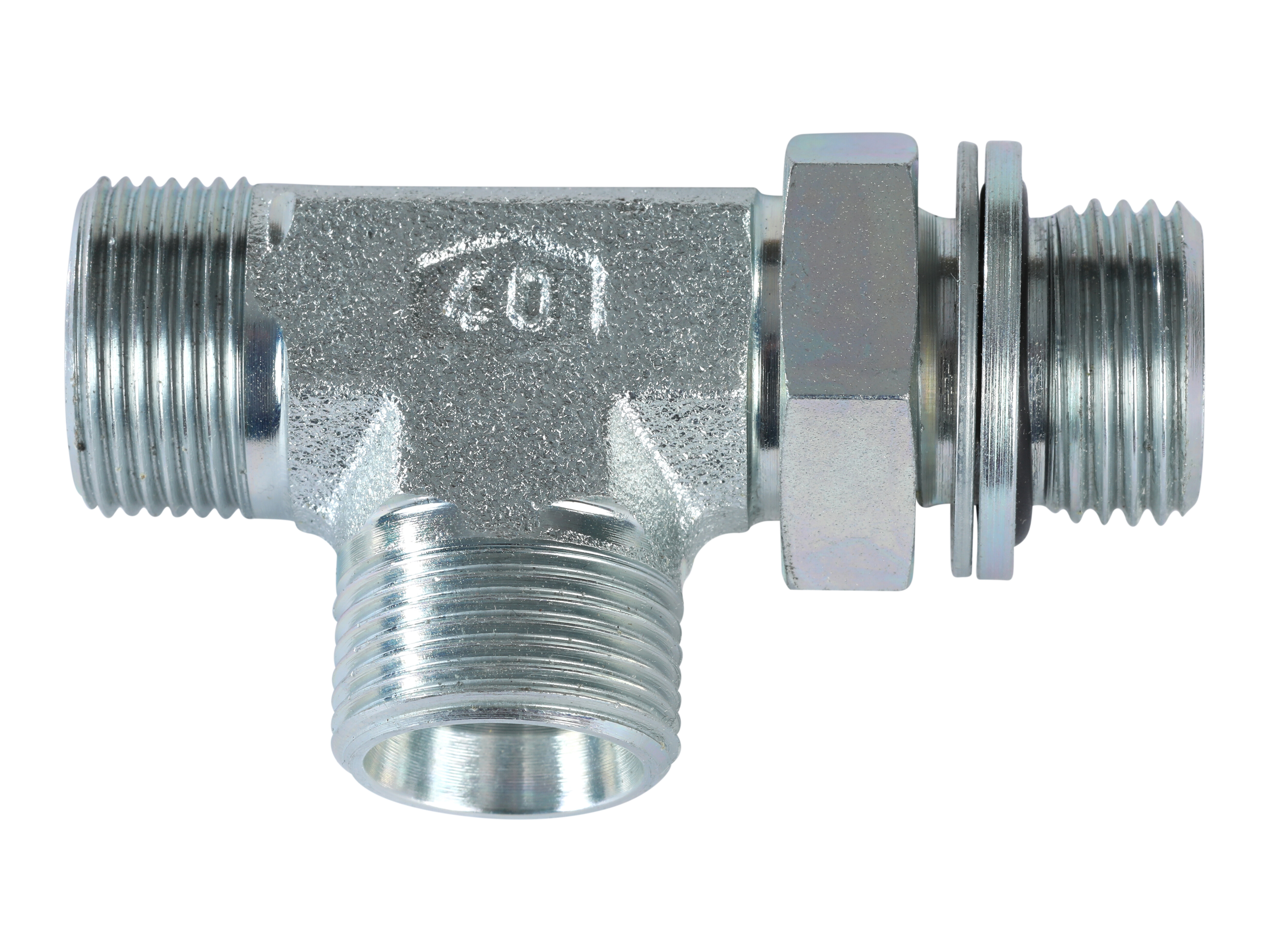

L-fitting adjustable - L-series - Male x Male x BSP male counter nut

Stud branch tee swivel - ø10L x 1/4" BSP

Stud branch tee stilbar - ø15L x 1/2" BSP

L stud adjustable - ø12L x 3/8" BSP

L stud stilbar - ø15L x 1/2" BSP

Stud branch tee swivel - ø10L x 1/4" BSP

SELECT VARIANT

Partnumber	Description	Thread outer metric	Thread outer	Diameter pipe	Pressure max.
CE10RL/OAX	Stud branch tee swivel - ø10L x 1/4" BSP	M16x1,5	G 1/4 BSP	10 mm	315 bar
CE15RL/OAX	Stud branch tee stilbar - ø15L x 1/2" BSP	M22x1,5	G 1/2 BSP	15 mm	250 bar
DE12RL/OAX	L stud adjustable - ø12L x 3/8" BSP	M18x1,5	G 3/8 BSP	12 mm	250 bar
DE15RL/OAX	L stud stilbar - ø15L x 1/2" BSP	M22x1,5	G 1/2 BSP	15 mm	250 bar
FXTEE10LR14OK	Stud branch tee swivel - ø10L x 1/4" BSP	M16x1,5	G 1/4 BSP	10 mm	315 bar

Material

Steel

REACH compliant

Yes

RoHs compliant

Yes

Series

Temperature max.

+100

Temperature min.

-35

Type

Forged
