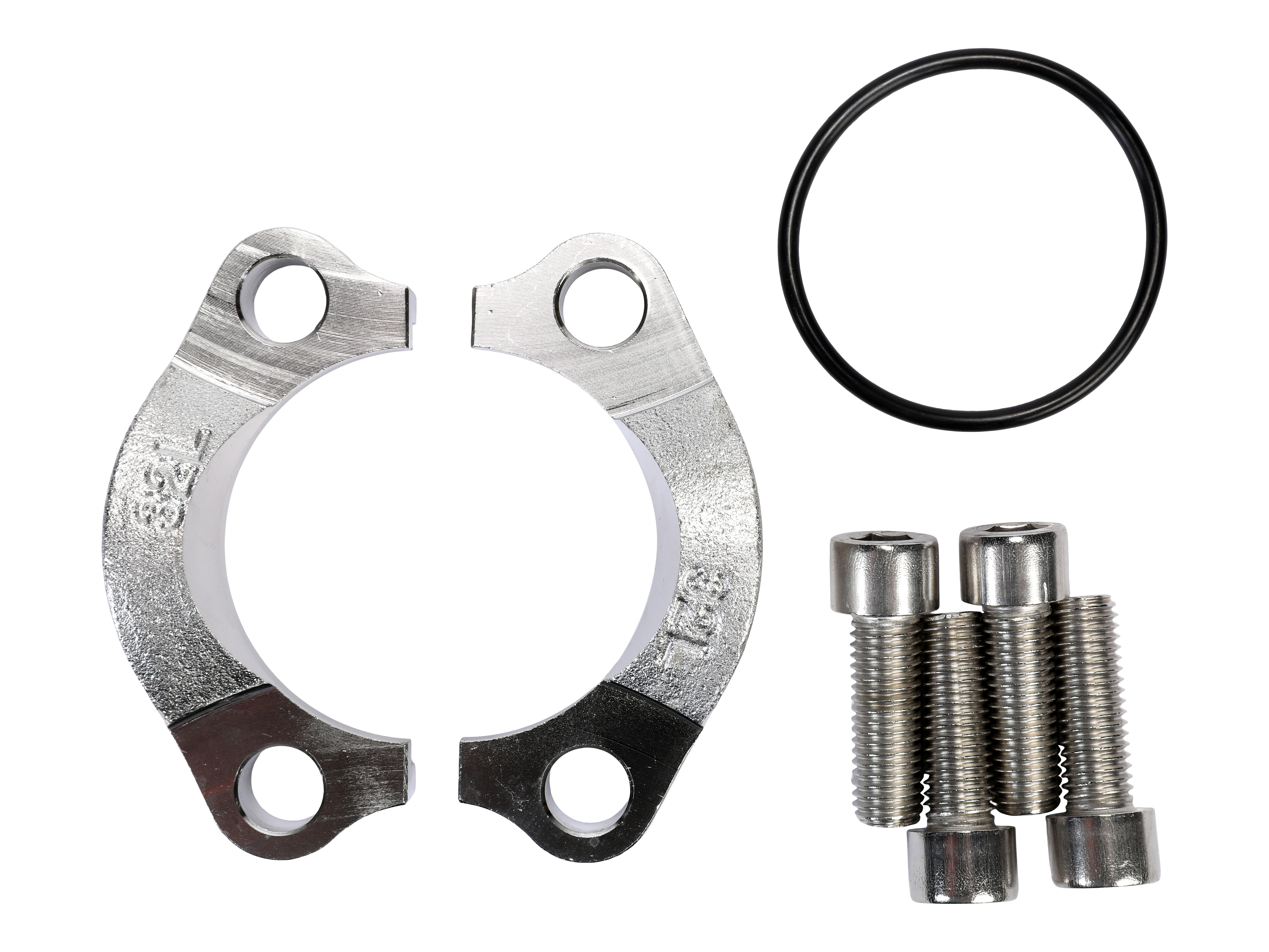

Split flange kit SAE 3000 PSI with O-ring and MM bolts stainless - AFX3-M

Split flange kit SAE 3000 PSI with O-ring and MM bolts stainless - AFX3-M

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter flange Bolt dimension Pressure max. Flange
AFX305M Splitflange 1.1/2" SAE3000 - stainless AISI316L 60.3 mm M12x35 mm 210 bar 1.1/2 "
AFX306M Splitflange 2" SAE3000 - stainless AISI316L 71.4 mm M12x35 mm 210 bar 2 "
AFX308M Splitflange 3" SAE3000 - stainless AISI316L 101.6 mm M16x50 mm 160 bar 3 "
Brand Name
Havit
Flange SAE/DIN
3000 PSI
Material
Stainless steel
Material quality
1.4404 / AISI316L
Number of bolts
4
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperature max.
+90
Temperature min.
-40
