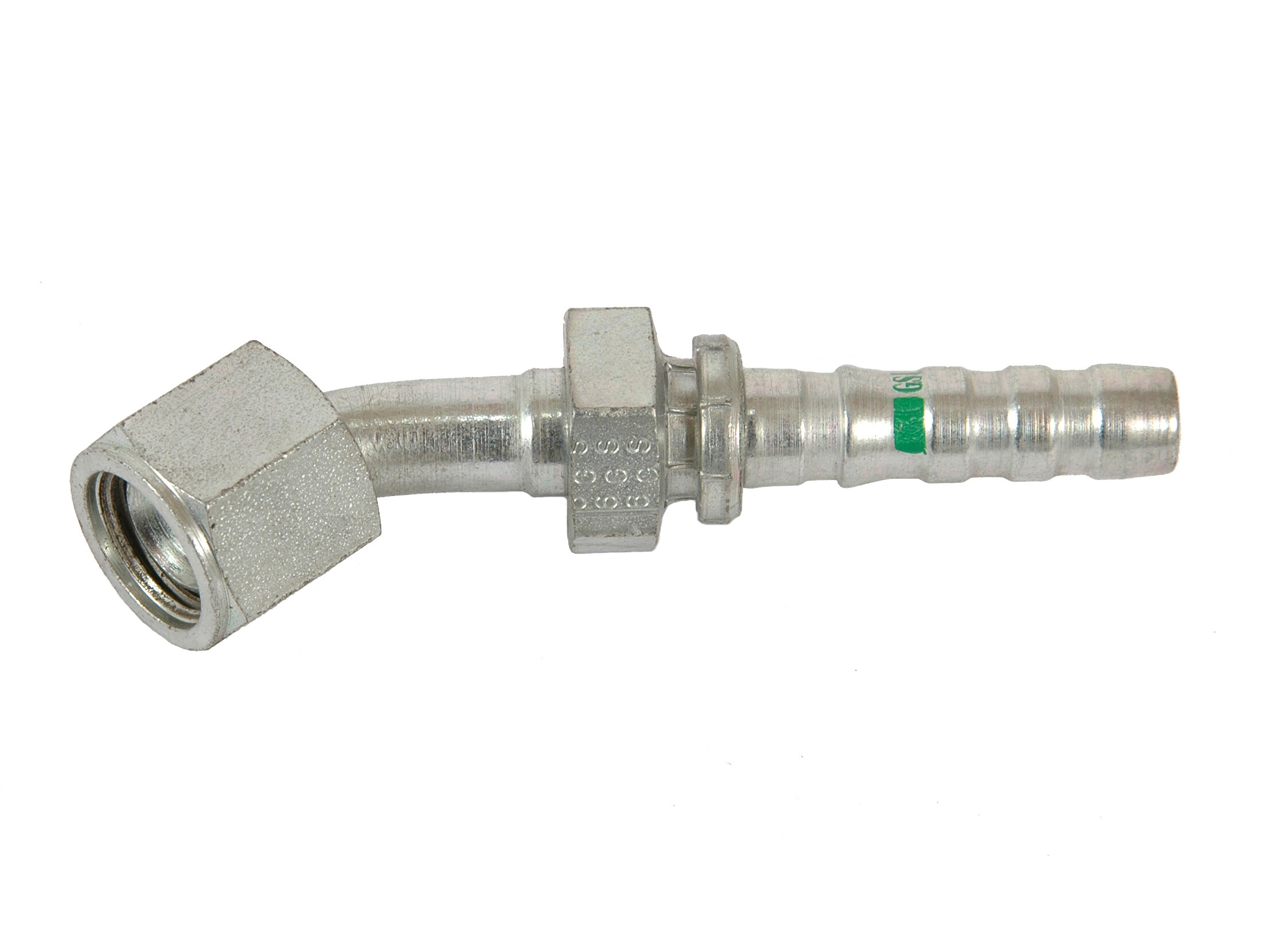

JIC union nut, 37° cone face, 45° elbow (FJX45 - NJ45)

JIC union nut, 37° cone face, 45° elbow (FJX45 - NJ45)

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread Hose size Angle Hose coupling type
GS0606NJ45 3/8" Insert - 9/16"-18 JIC female - 45° 9/16-18 JIC 3/8 " 45 ° For separate ferrule
GS0608NJ45 3/8" Insert - 3/4"-16 JIC female - 45° 3/4-16 JIC 3/8 " 45 ° For separate ferrule
GS0808NJ45 1/2" Insert - 3/4"-16 JIC female - 45° 3/4-16 JIC 1/2 " 45 ° For separate ferrule
GS0810NJ45 1/2" Insert - 7/8"-14 JIC female - 45° 7/8-14 JIC 1/2 " 45 ° For separate ferrule
GS1010NJ45 5/8" Insert - 7/8"-14 JIC female - 45° 7/8-14 JIC 5/8 " 45 ° For separate ferrule
GS1012NJ45 5/8" Insert - 1.1/16"-12 JIC female - 45° 1.1/16-12 JIC 5/8 " 45 ° For separate ferrule
GS1212NJ45 3/4" Insert - 1.1/16"-12 JIC female - 45° 1.1/16-12 JIC 3/4 " 45 ° For separate ferrule
GS1216NJ45 3/4" Insert - 1.5/16"-12 JIC female - 45° 1.5/16-12 JIC 3/4 " 45 ° For separate ferrule
GS1616NJ45 1" Insert - 1.5/16"-12 JIC female - 45° 1.5/16-12 JIC 1 " 45 ° For separate ferrule
GS1620NJ45 1" Insert - 1.5/8"-12 JIC female - 45° 1.5/8-12 JIC 1 " 45 ° For separate ferrule
GS2020NJ45 1.1/4" Insert - 1.5/8"-12 JIC female - 45° 1.5/8-12 JIC 1.1/4 " 45 ° For separate ferrule
Angle
45
Brand Name
Gates
Corrosion resistance
500 hours salt spray ASTM B-117
Hose coupling type
For separate ferrule
Material
Steel
REACH compliant
Yes
RoHs compliant
Yes
Surface treatment
TuffCoat™
