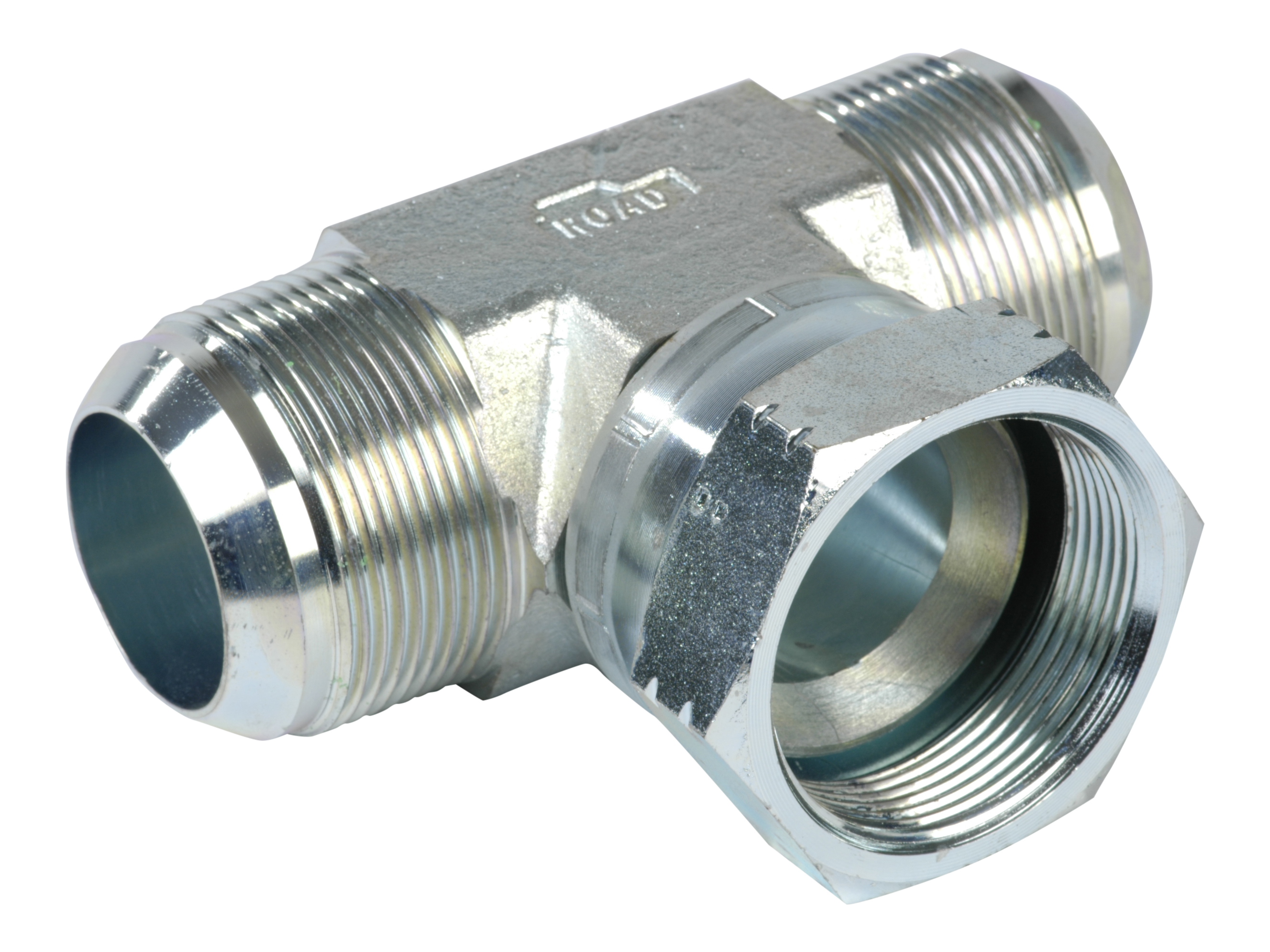

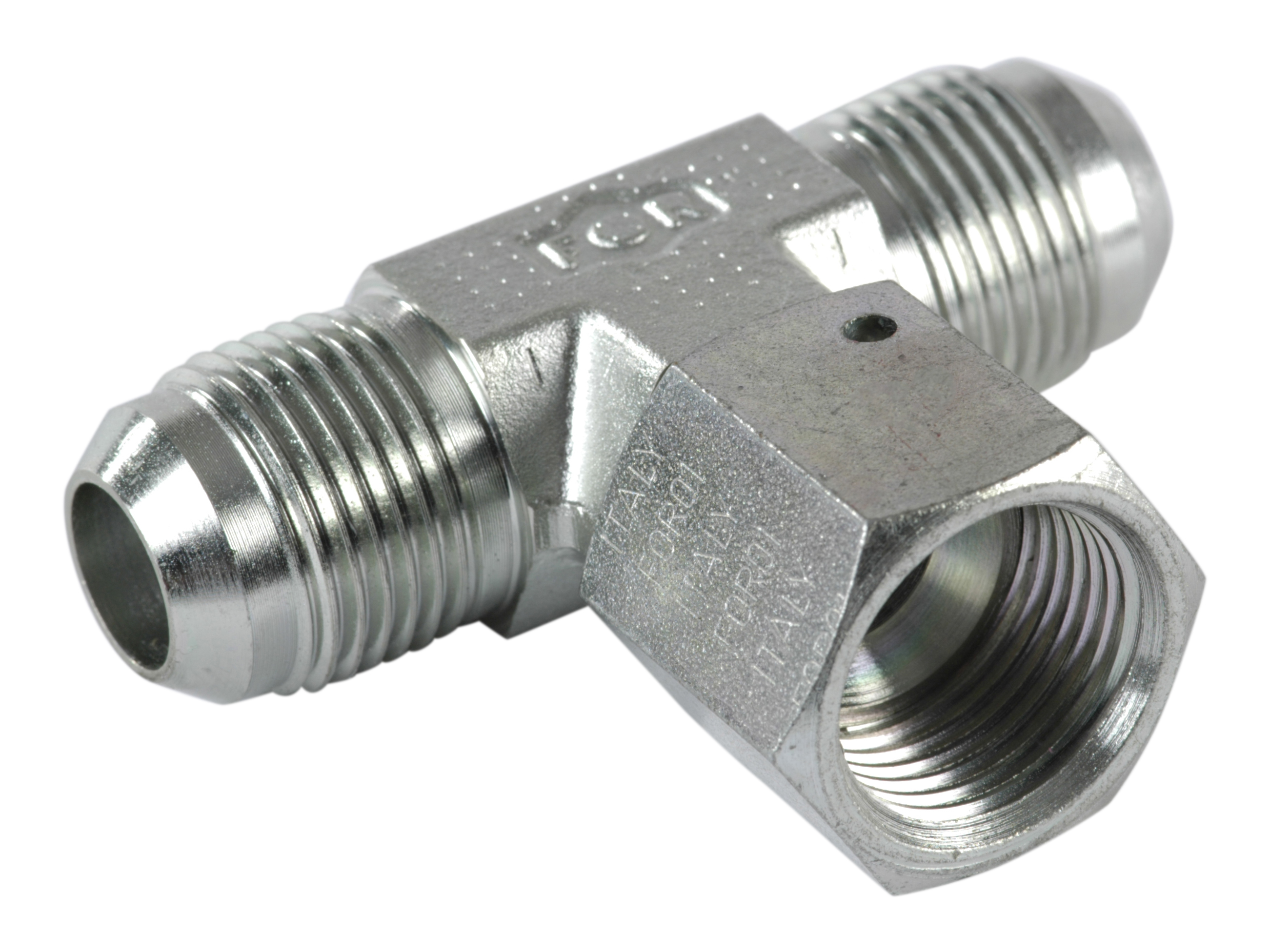

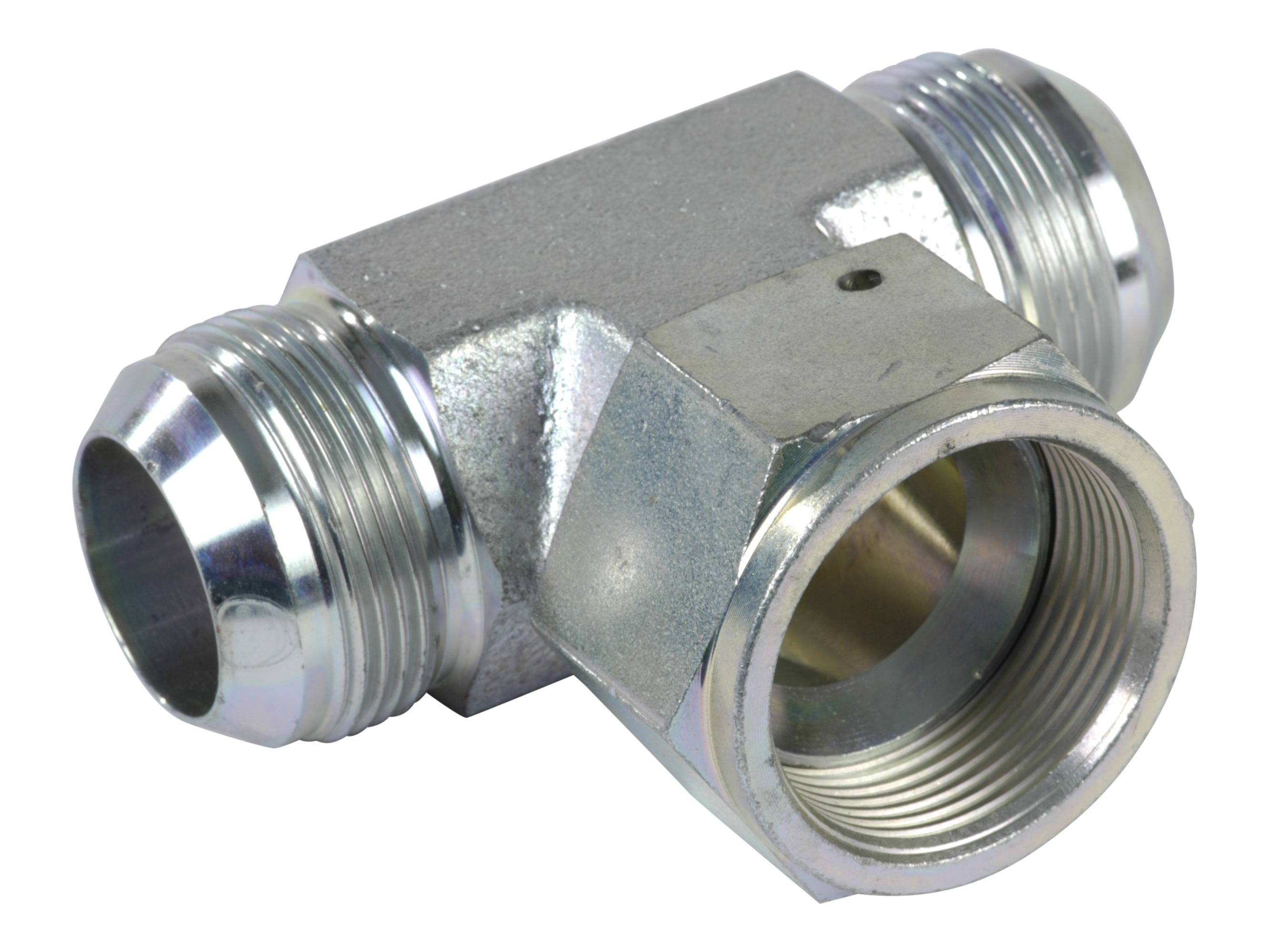

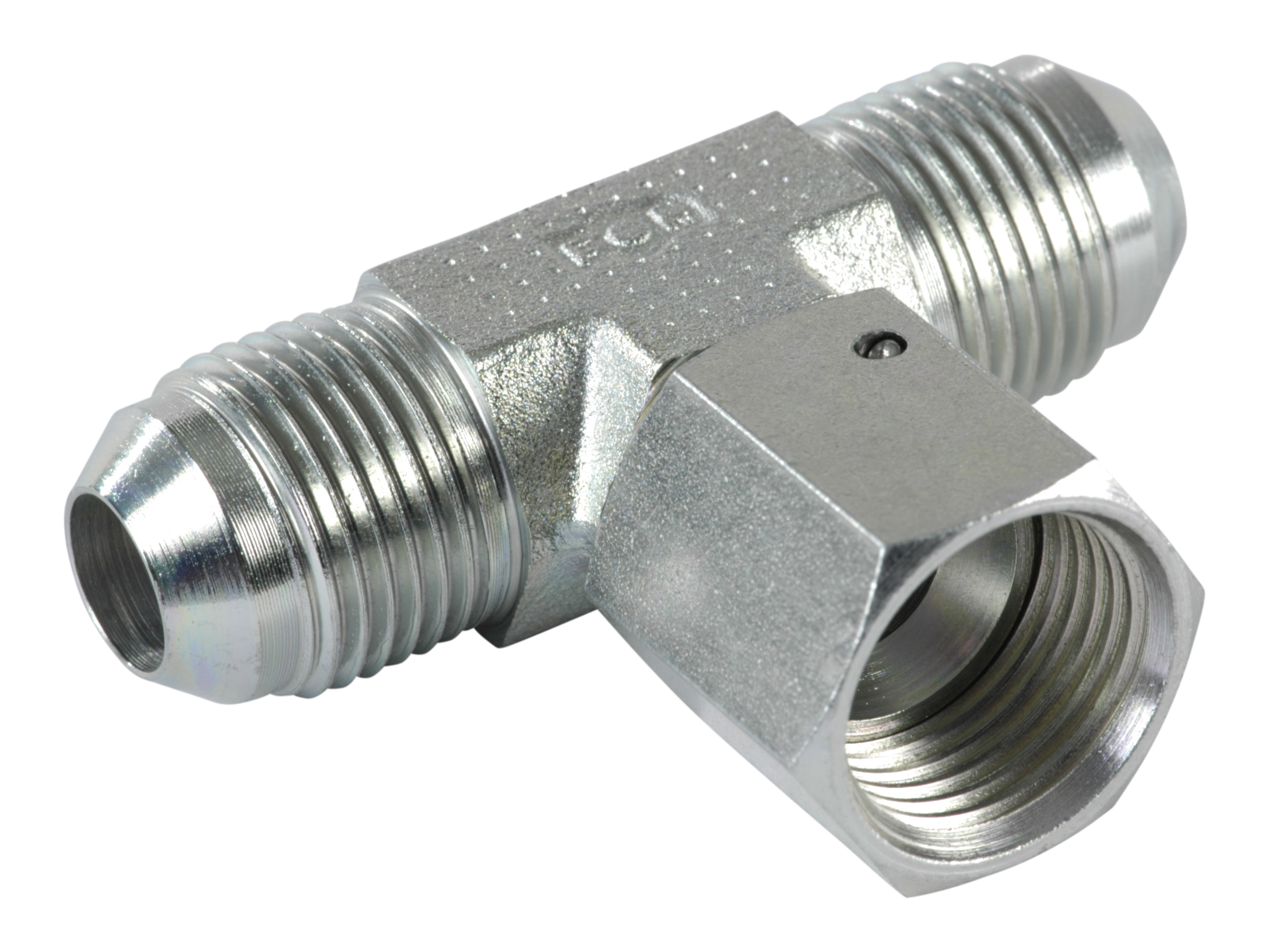

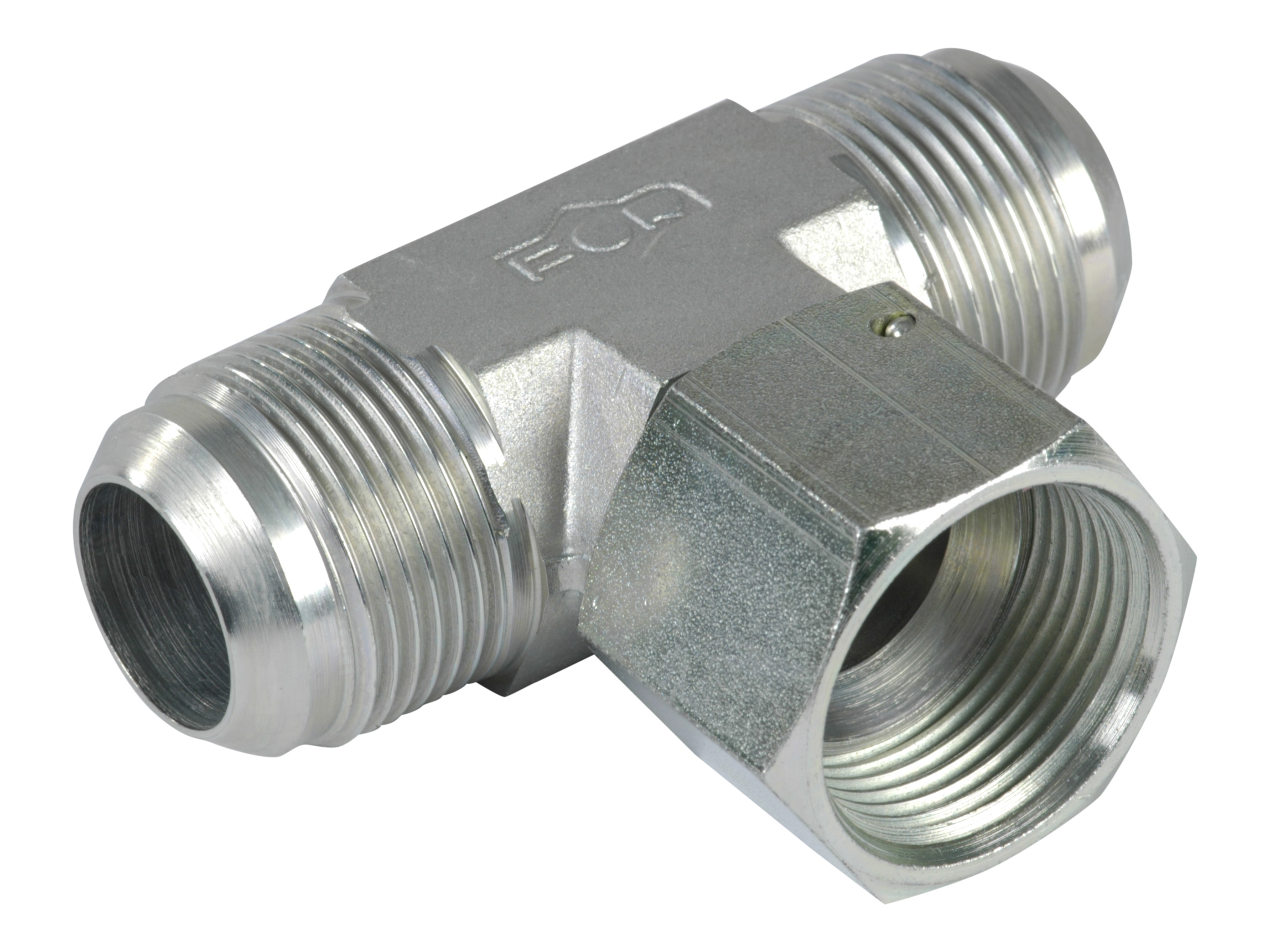

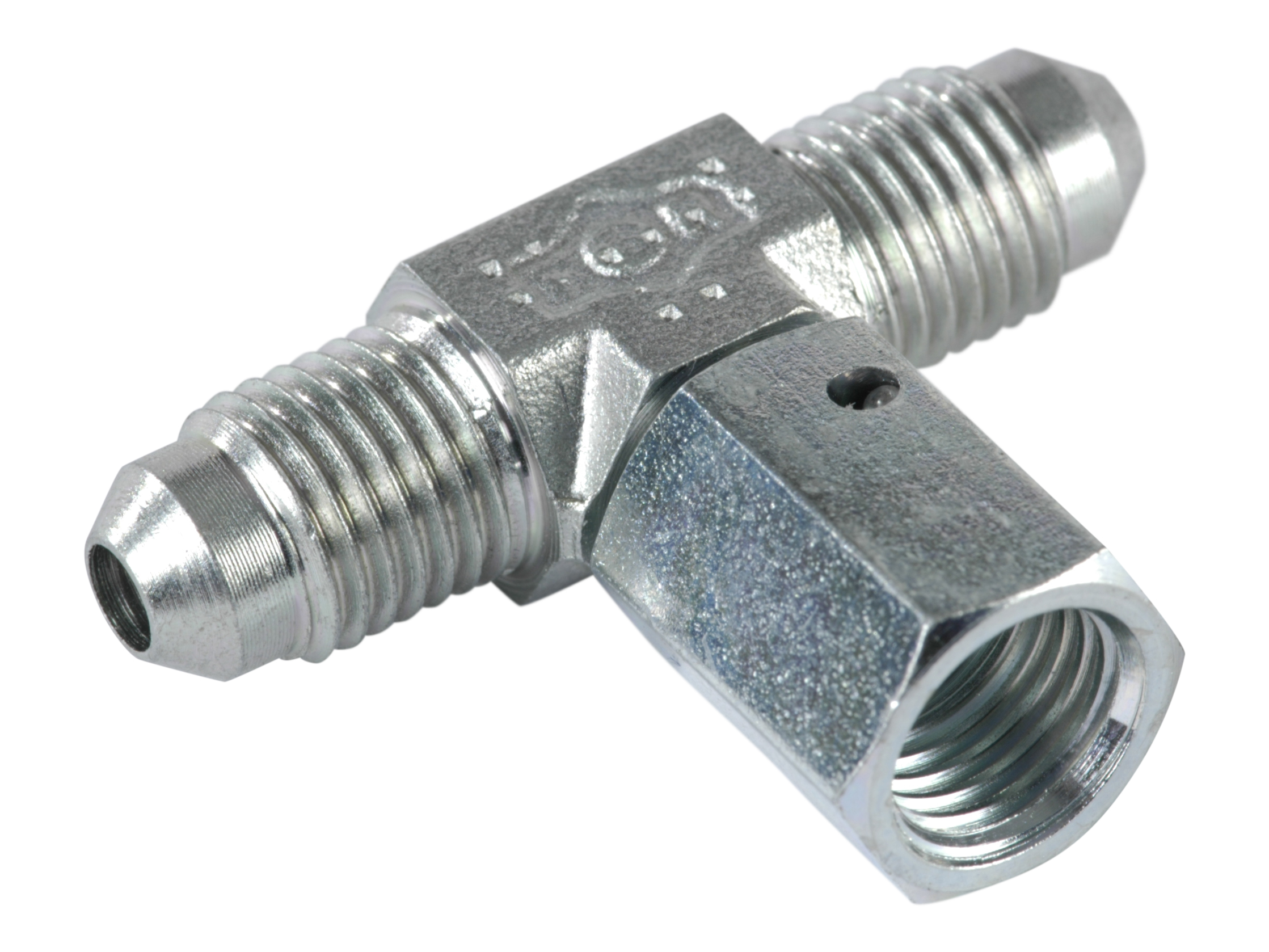

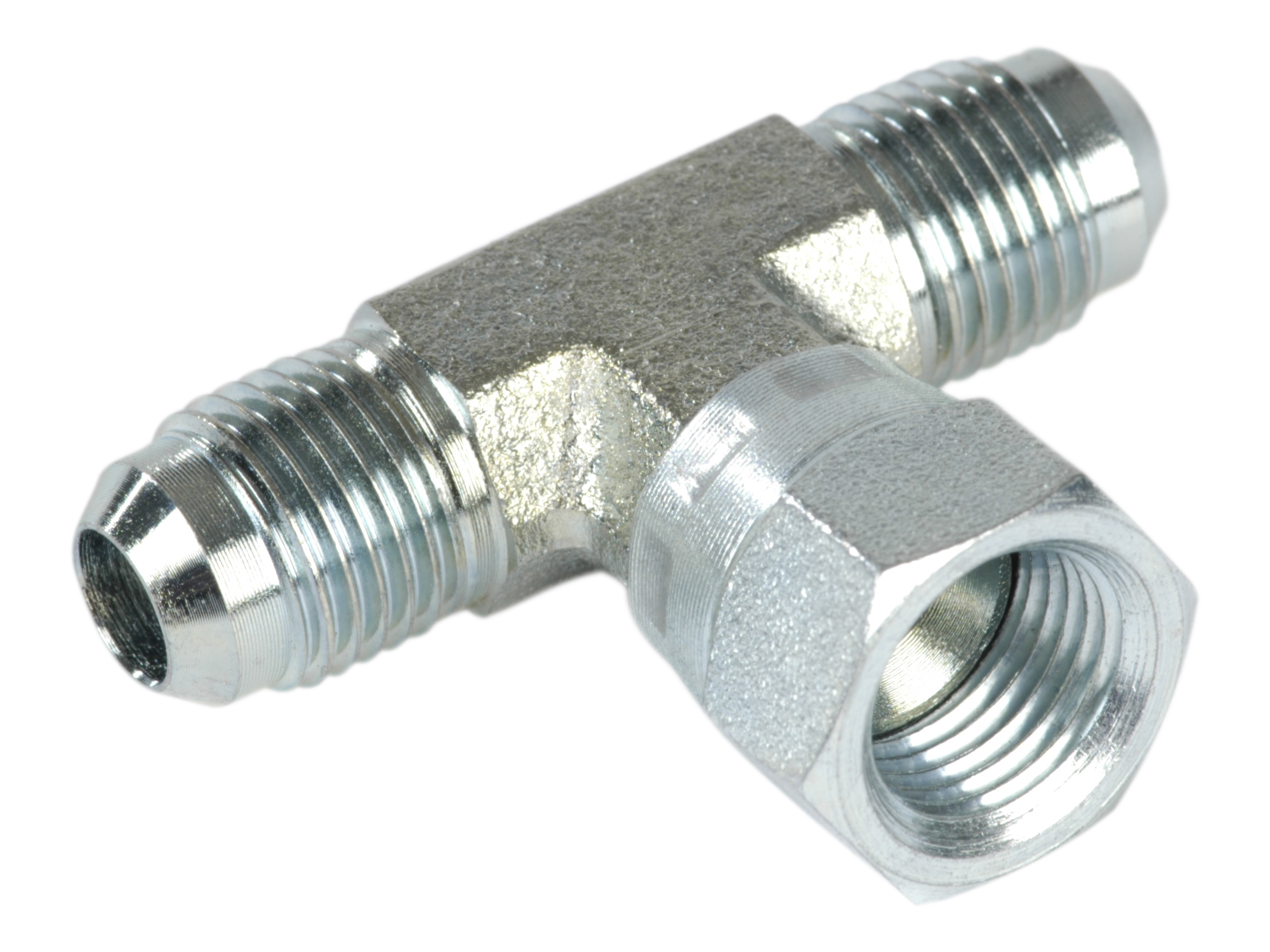

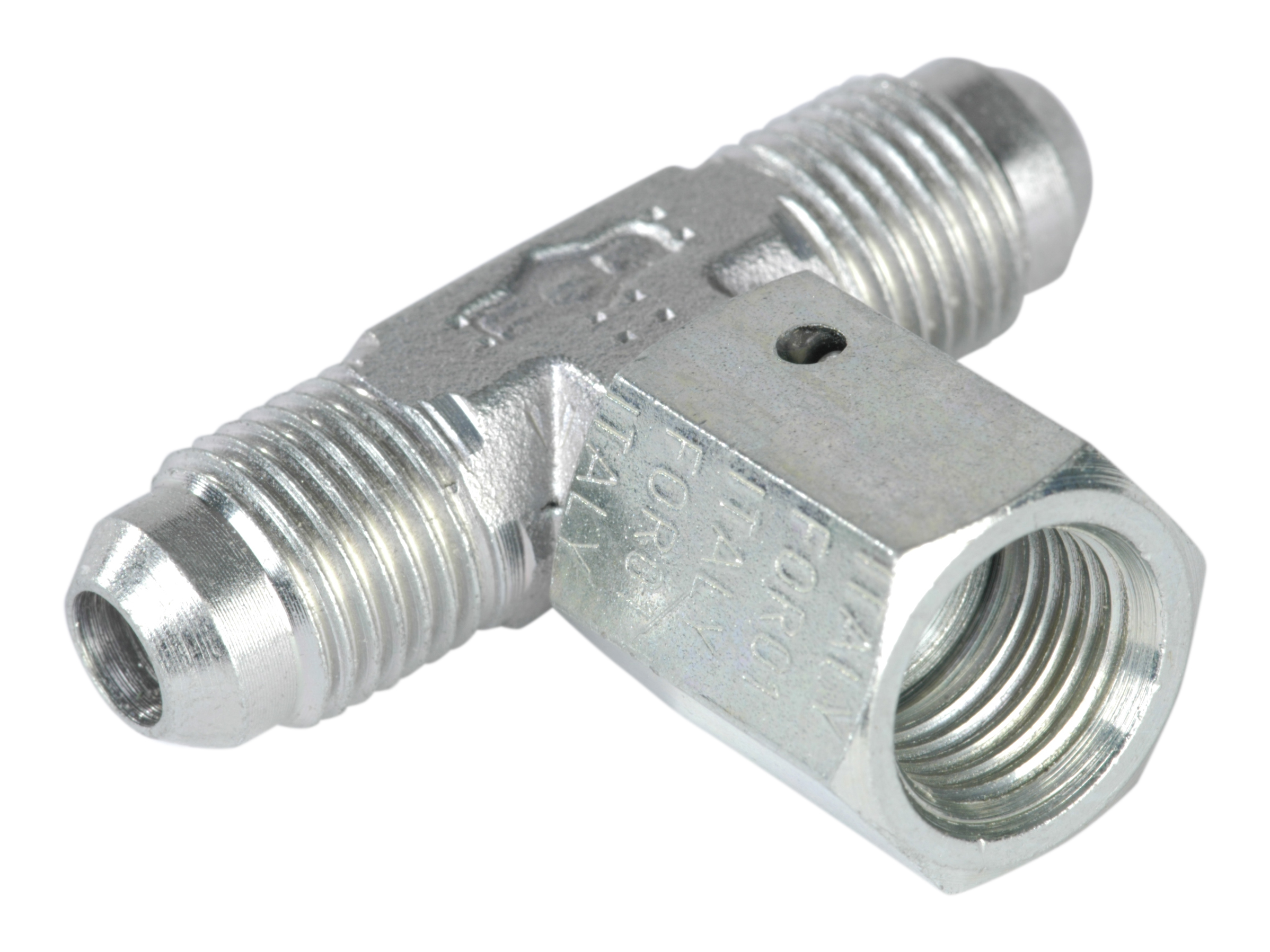

T-adapter JIC male x JIC union nut x JIC male

SELECT VARIANT
Partnumber Description Diameter pipe Thread inner Thread outer Pressure max.
TGL-06 S685-06TG Tee with nut 6 mm 7/16-20 JIC 7/16-20 JIC 450 bar
TGL-08 S685-08TG Tee with nut 8 mm 1/2-20 JIC 1/2-20 JIC 416 bar
TGL-10 S685-10TG Tee with nut 10 mm 9/16-18 JIC 9/16-18 JIC 350 bar
TGL-12 S685-12TG Tee with nut 12 mm 3/4-16 JIC 3/4-16 JIC 350 bar
TGL-16 S685-16TG Tee with nut 16 mm 7/8-14 JIC 7/8-14 JIC 350 bar
TGL-20 S685-20TG Tee with nut 20 mm 1.1/16-12 JIC 1.1/16-12 JIC 300 bar
TGL-25 S685-25TG Tee with nut 25 mm 1.5/16-12 JIC 1.5/16-12 JIC 290 bar
TGL-32 S685-30TG Tee with nut 32 mm 1.5/8-12 JIC 1.5/8-12 JIC 240 bar
TGL-38 S685-38TG Tee with nut 38 mm 1.7/8-12 JIC 1.7/8-12 JIC 250 bar
Brand Name
FOR

Corrosion resistance
1400 hours salt spray DIN EN ISO 9227

Material
Steel

Surface treatment
Electro-galvanized / White chromatized
