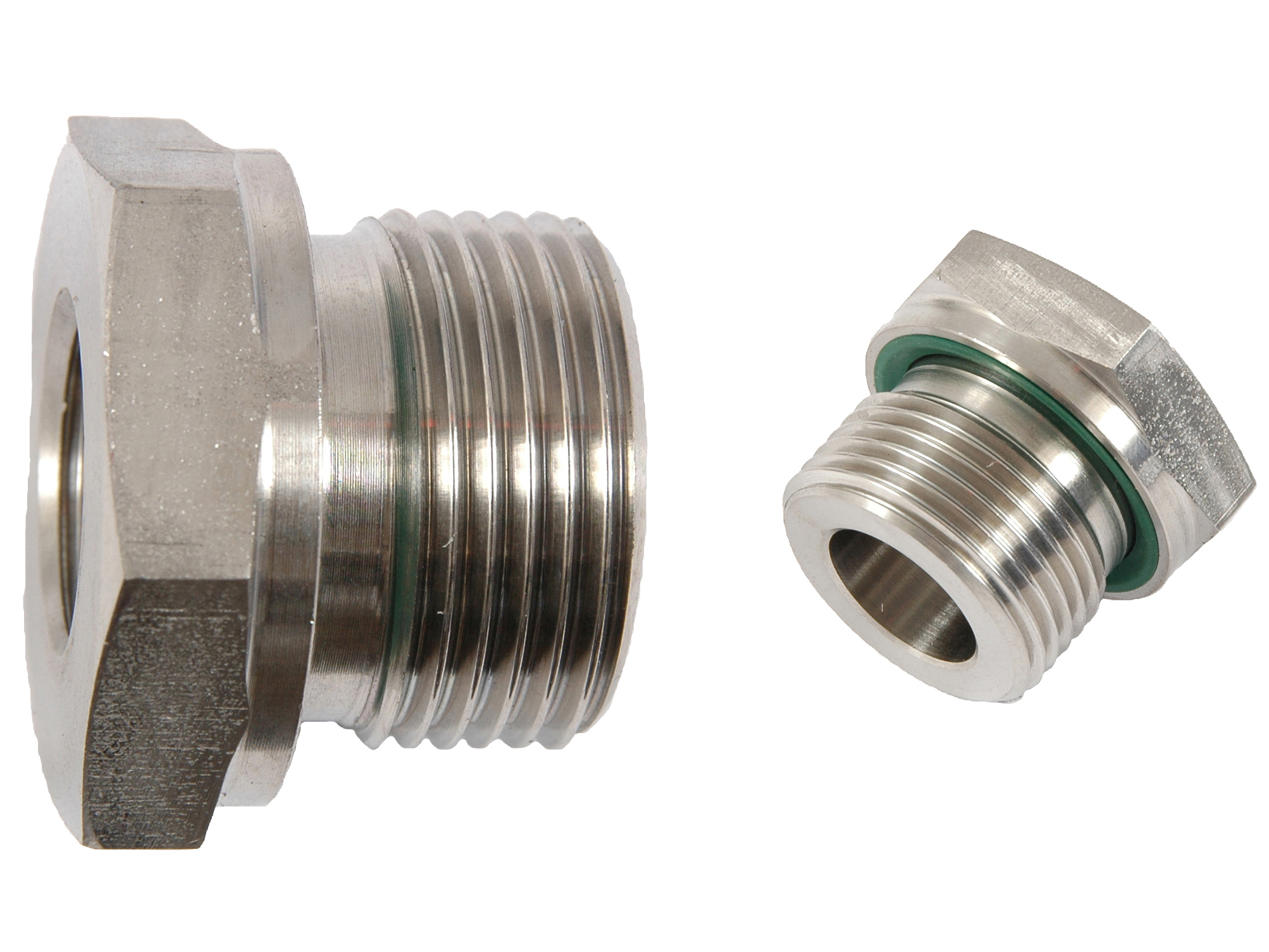

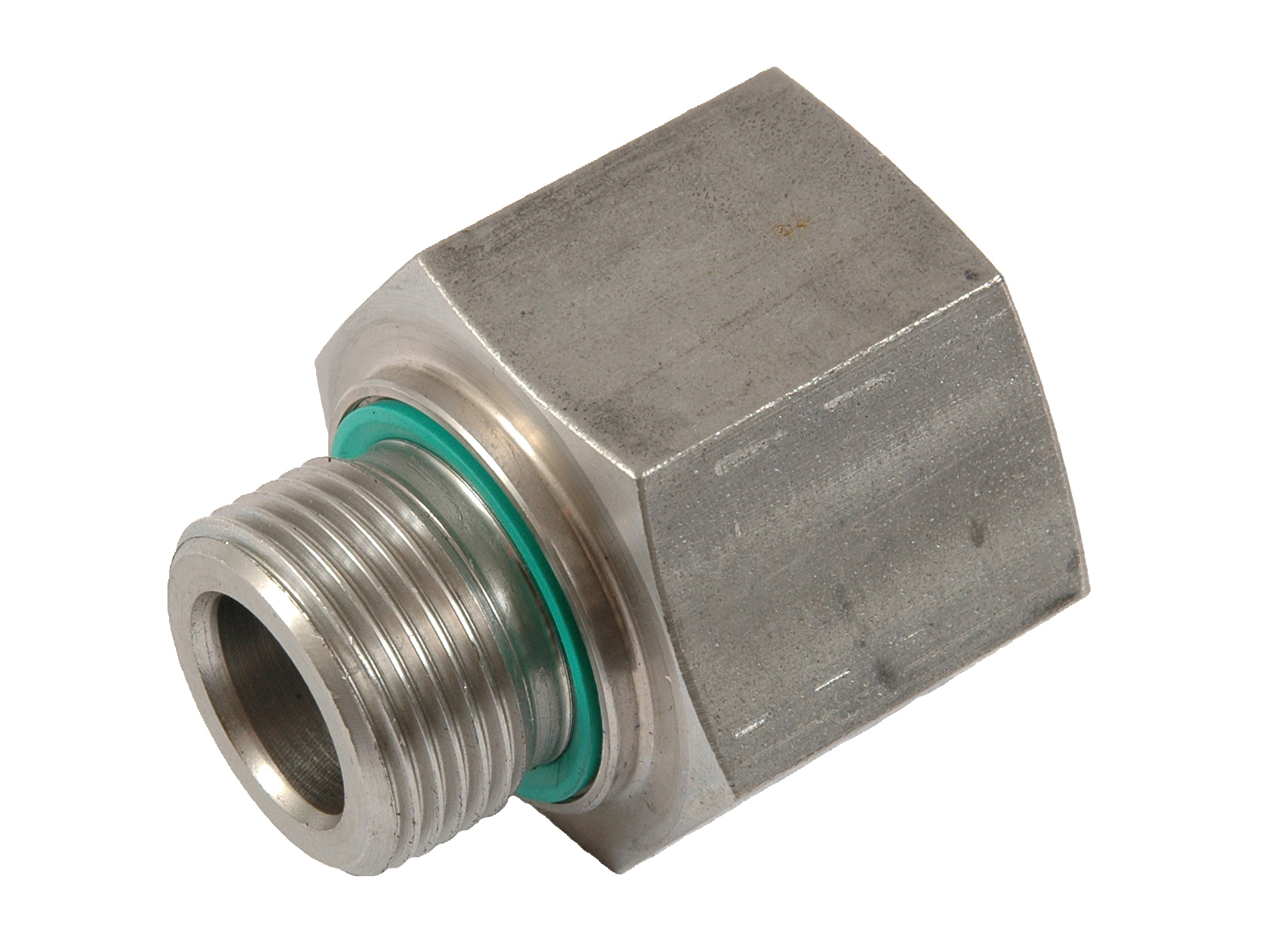

Adapter BSP male x BSP female WD seal stainless

SELECT VARIANT

Partnumber	Description	Gänga utv.	Gänga inv.	Tryck max.
RI1-11/2/71	Reduction - 1" BSP x 1.1/2" BSP female - AISI316	G 1 BSP	G 1.1/2 BSP	250 bar
RI1/2WD1/4/7	Reduction - 1/2" BSP x 1/4" BSP female - WD seal - AISI316	G 1/2 BSP	G 1/4 BSP	400 bar
RI1/2WD1/71	Reduction - 1/2" BSP x 1 BSP female - WD seal - AISI316	G 1/2 BSP	G 1 BSP	400 bar
RI1/2WD1/8/7	Reduction - 1/2" BSP x 1/8" BSP female - WD seal - AISI316	G 1/2 BSP	G 1/8 BSP	400 bar
RI1/2WD3/4/7	Reduction - 1/2" BSP x 3/4" BSP female - WD seal - AISI316	G 1/2 BSP	G 3/4 BSP	400 bar
RI1/2WD3/8/7	Reduction - 1/2" BSP x 3/8" BSP female - WD seal - AISI316	G 1/2 BSP	G 3/8 BSP	630 bar
RI1/4WD1/2/7	Reduction - 1/4" BSP x 1/2" BSP female - WD seal - AISI316	G 1/4 BSP	G 1/2 BSP	630 bar
RI1/4WD1/8/7	Reduction - 1/4" BSP x 1/8" BSP female - WD seal - AISI316	G 1/4 BSP	G 1/8 BSP	400 bar
RI1/4WD3/4/7	Reduction - 1/4" BSP x 3/4" BSP female - WD seal - AISI316	G 1/4 BSP	G 3/4 BSP	400 bar
RI1/4WD3/8/7	Reduction - 1/4" BSP x 3/8" BSP female - WD seal - AISI316	G 1/4 BSP	G 3/8 BSP	630 bar
RI1/8WD1/4/7	Reduction - 1/8" BSP x 1/4" BSP female - WD seal - AISI316	G 1/8 BSP	G 1/4 BSP	630 bar
RI1/8WD3/8/7	Reduction - 1/8" BSP x 3/8" BSP female - WD seal - AISI316	G 1/8 BSP	G 3/8 BSP	630 bar
RI11/2WD1/71	Reduction - 1.1/2" BSP x 1" BSP female - WD seal - AISI316	G 1.1/2 BSP	G 1 BSP	250 bar
RI11/4WD1/71	Reduction - 1.1/4" BSP x 1 BSP female - WD seal - AISI316	G 1.1/4 BSP	G 1 BSP	315 bar
RI112WD114/7	Reduction - 1.1/2" BSP x 1.1/4"BSP female -WD seal -AISI316	G 1.1/2 BSP	G 1.1/4 BSP	250 bar
RI112WD12/71	Reduction - 1.1/2" BSP x 1/2" BSP female -WD seal - AISI316	G 1.1/2 BSP	G 1/2 BSP	250 bar
RI112WD34/71	Reduction - 1.1/2" BSP x 3/4" BSP female -WD seal - AISI316	G 1.1/2 BSP	G 3/4 BSP	250 bar
RI114WD112/7	Reduction - 1.1/4" BSP x 1.1/2"BSP female -WD seal -AISI316	G 1.1/4 BSP	G 1.1/2 BSP	250 bar
RI114WD12/71	Reduction - 1.1/4" BSP x 1/2" BSP female -WD seal - AISI316	G 1.1/4 BSP	G 1/2 BSP	315 bar
RI114WD34/71	Reduction - 1.1/4" BSP x 3/4" BSP female -WD seal - AISI316	G 1.1/4 BSP	G 3/4 BSP	315 bar
RI12WD114/71	Reduction - 1/2" BSP x 1.1/4" BSP female -WD seal - AISI316	G 1/2 BSP	G 1.1/4 BSP	400 bar
RI1WD1/2/71	Reduction - 1" BSP x 1/2" BSP female - WD seal - AISI316	G 1 BSP	G 1/2 BSP	315 bar
RI1WD1/4/71	Reduction - 1" BSP x 1/4" BSP female - WD seal - AISI316	G 1 BSP	G 1/4 BSP	315 bar
RI1WD11/2/71	Reduction - 1" BSP x 1.1/2" BSP female - AISI316	G 1 BSP	G 1.1/2 BSP	250 bar
RI1WD11/4/71	Reduction - 1" BSP x 1.1/4" BSP female - WD seal - AISI316	G 1 BSP	G 1.1/4 BSP	250 bar
RI1WD3/4/71	Reduction - 1" BSP x 3/4" BSP female - WD seal - AISI316	G 1 BSP	G 3/4 BSP	315 bar
RI1WD3/8/71	Reduction - 1" BSP x 3/8" BSP female - WD seal - AISI316	G 1 BSP	G 3/8 BSP	315 bar
RI3/4WD1/2/7	Reduction - 3/4" BSP x 1/2" BSP female - WD seal - AISI316	G 3/4 BSP	G 1/2 BSP	315 bar
RI3/4WD1/4/7	Reduction - 3/4" BSP x 1/4" BSP female - WD seal - AISI316	G 3/4 BSP	G 1/4 BSP	315 bar
RI3/4WD1/71	Reduction - 3/4" BSP x 1" BSP female - WD seal - AISI316	G 3/4 BSP	G 1 BSP	400 bar
RI3/4WD3/8/7	Reduction - 3/4" BSP x 3/8" BSP female - WD seal - AISI316	G 3/4 BSP	G 3/8 BSP	315 bar
RI3/8WD1/2/7	Reduction - 3/8" BSP x 1/2" BSP female - WD seal - AISI316	G 3/8 BSP	G 1/2 BSP	630 bar
RI3/8WD1/4/7	Reduction - 3/8" BSP x 1/4" BSP female - WD seal - AISI316	G 3/8 BSP	G 1/4 BSP	400 bar
RI3/8WD1/8/7	Reduction - 3/8" BSP x 1/8" BSP female - WD seal - AISI316	G 3/8 BSP	G 1/8 BSP	400 bar
RI3/8WD3/4/7	Reduction - 3/8" BSP x 3/4" BSP female - WD seal - AISI316	G 3/8 BSP	G 3/4 BSP	400 bar
RI34WD112/71	Reduction - 3/4" BSP x 1.1/2" BSP female -WD seal - AISI316	G 3/4 BSP	G 1.1/2 BSP	250 bar
RI34WD114/71	Reduction - 3/4" BSP x 1.1/4" BSP female -WD seal - AISI316	G 3/4 BSP	G 1.1/4 BSP	250 bar

Specifications
Dimensions and shipping (select variant)

Materialkvalitet

1.4571 / AISI316Ti

Märke namn

Volz

Packningsmaterial

FKM/FPM (Viton®)

Temperatur max.

+200

Temperatur min.

-25

Product information
Measure sketch (select variant)
