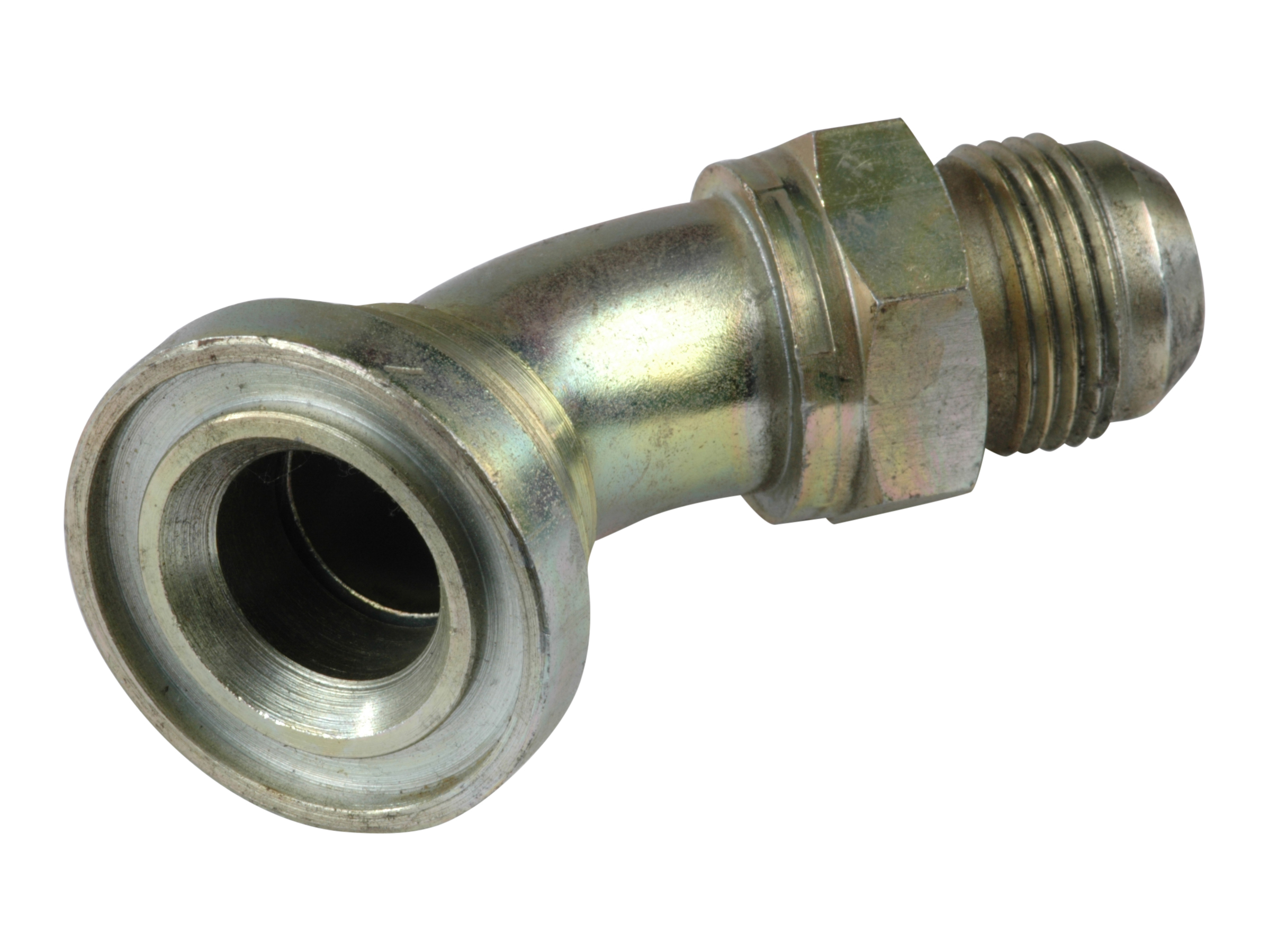

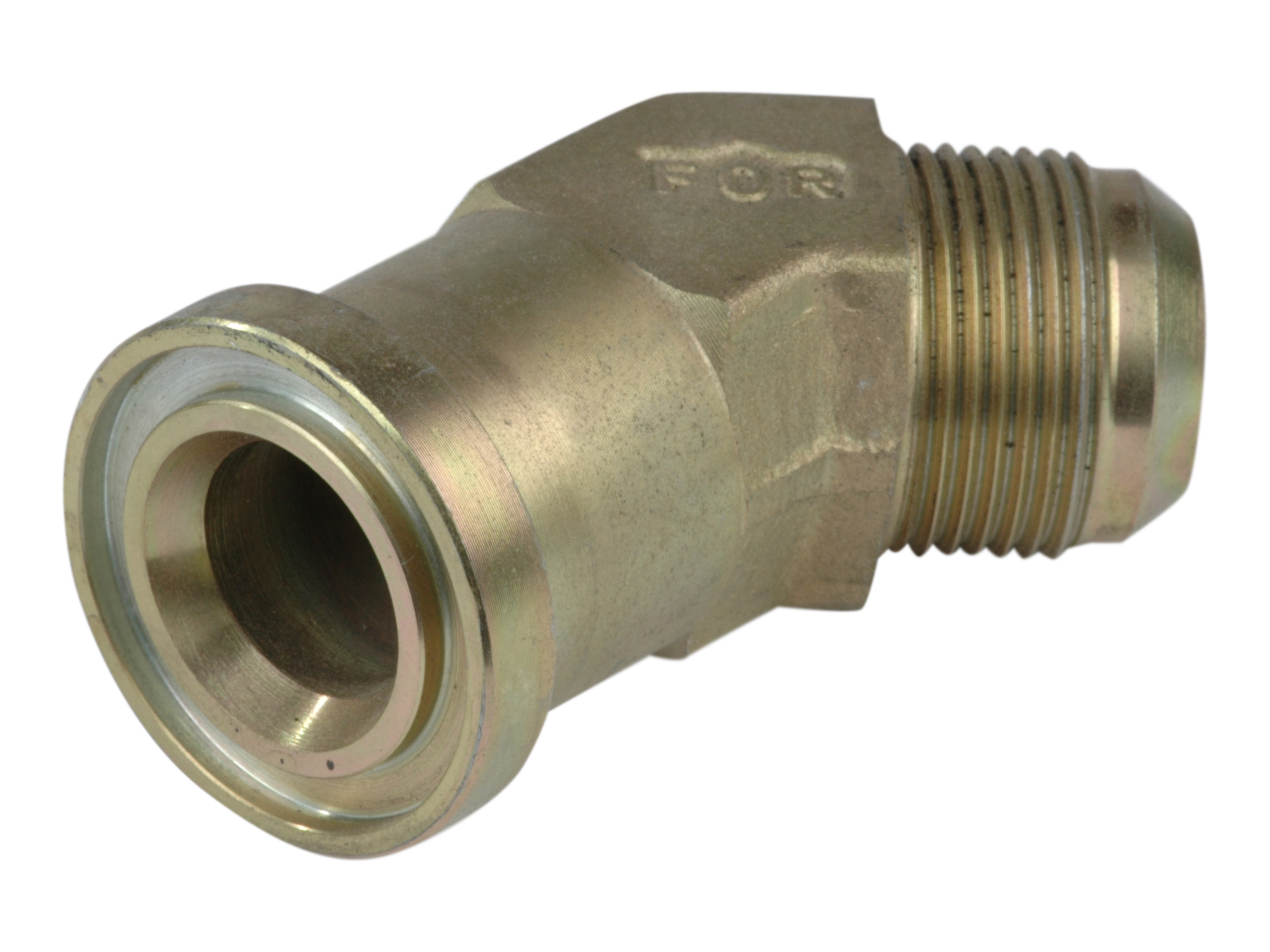

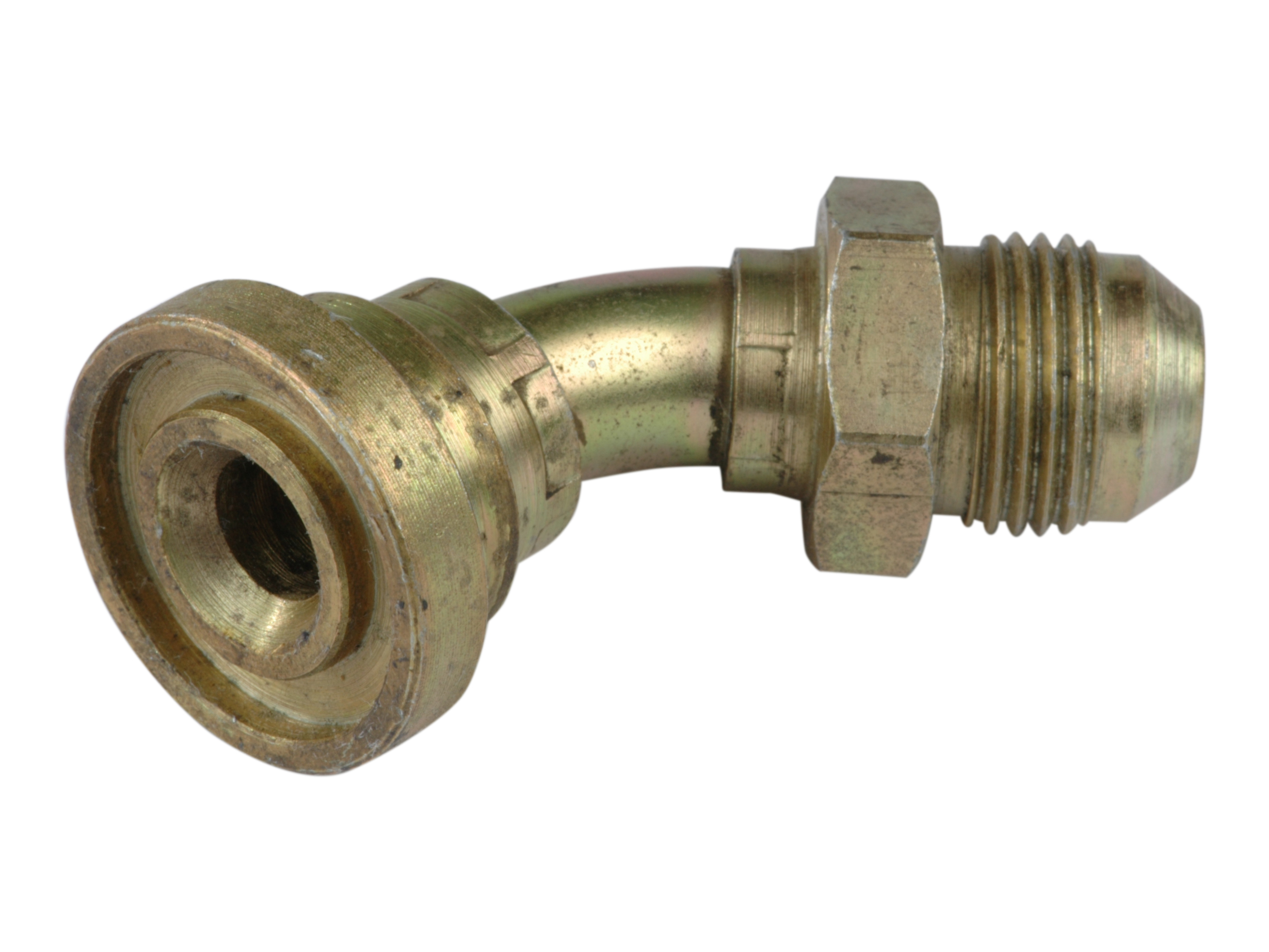

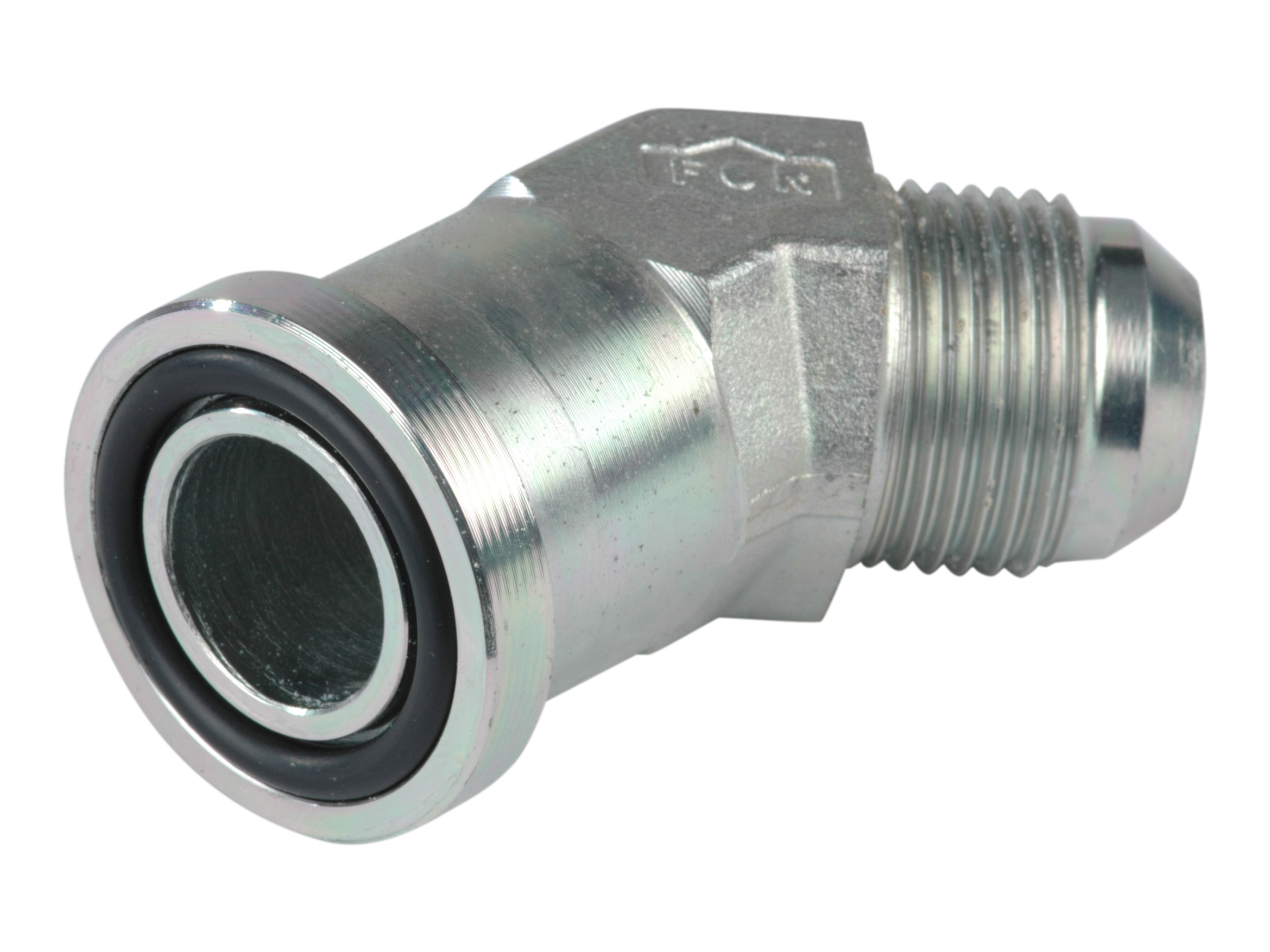

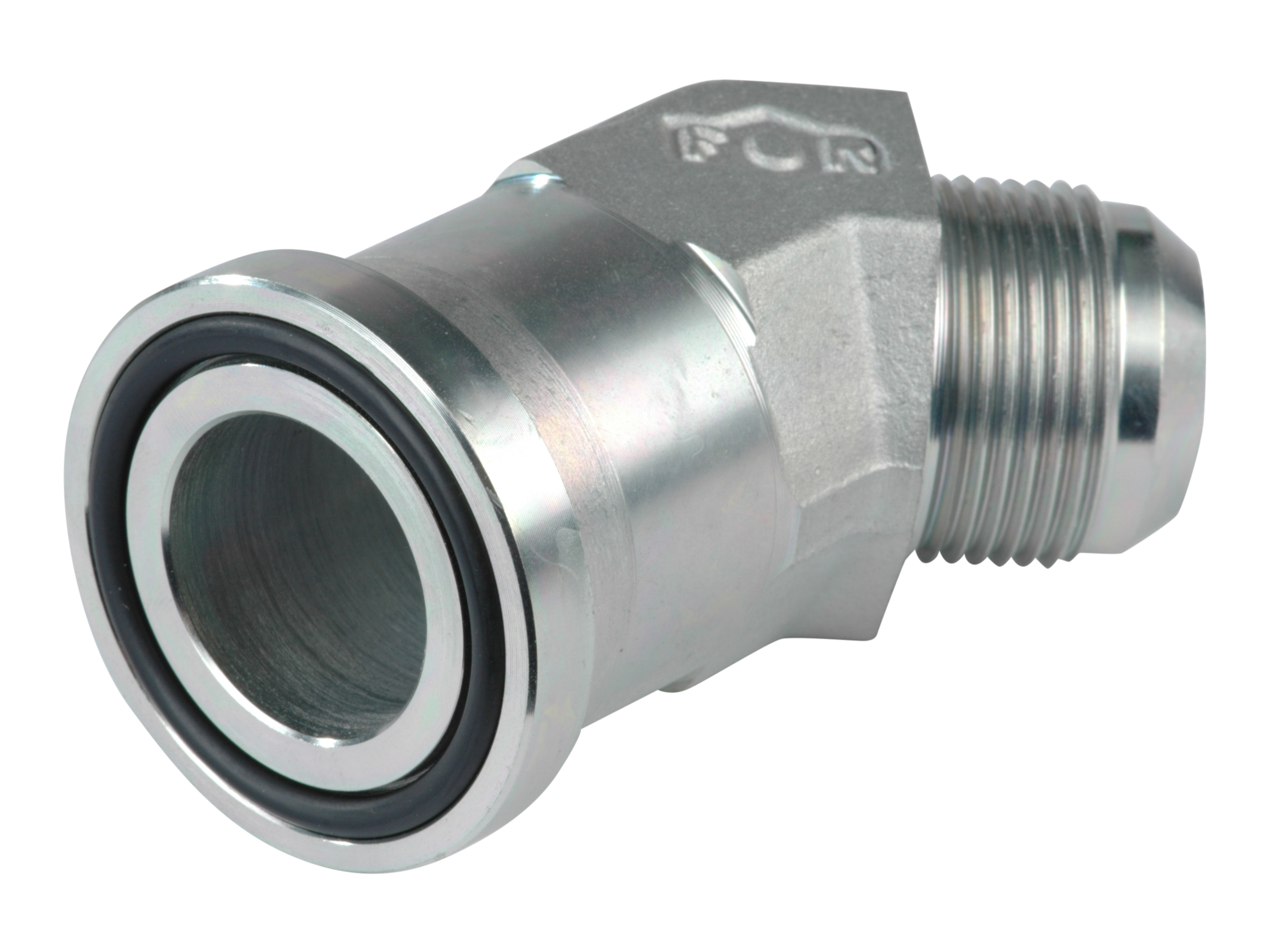

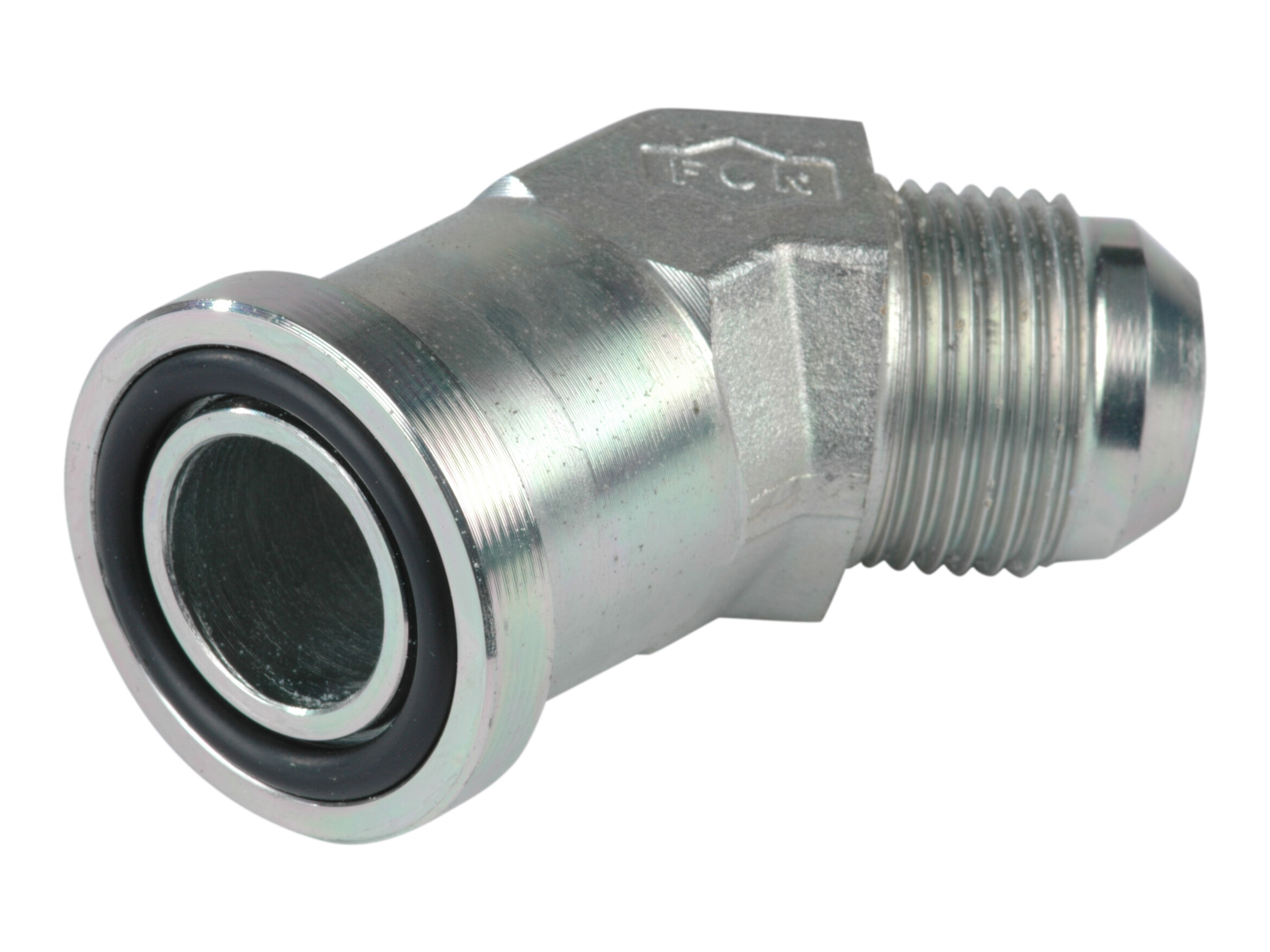

Elbow adapter 45° JIC male x SAE flange 3000 psi - 26PA

Elbow 3/4 JICx1/2 flange 45 °.

Elbow 1.1/16 JICx3/4 flange 45 °.

Elbow 1.1/16 JICx1 flange 45 °.

Elbow 1.5/16 JICx1 flange 45 °.

Elbow1.5/16 JICx1.1/4 flange 45 °

VÆLG VARIANT

Varenummer	Beskrivelse	Flange SAE/DIN	Flange	Gevind udvendig
26PA0808	Elbow 3/4 JICx1/2 flange 45 °.	3000 PSI	1/2 "	3/4-16 JIC
26PA1212	Elbow 1.1/16 JICx3/4 flange 45 °.	3000 PSI	3/4 "	1.1/16-12 JIC
26PA1216	Elbow 1.1/16 JICx1 flange 45 °.	3000 PSI	1 "	1.1/16-12 JIC
26PA1616	Elbow 1.5/16 JICx1 flange 45 °.	3000 PSI	1 "	1.5/16-12 JIC
26PA1620	Elbow1.5/16 JICx1.1/4 flange 45 °	3000 PSI	1.1/4 "	1.5/16-12 JIC

Flange SAE/DIN

3000 PSI

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Steel

Mærke navn

FOR

Overfladebehandling

Electro zinc plated

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Vinkel
