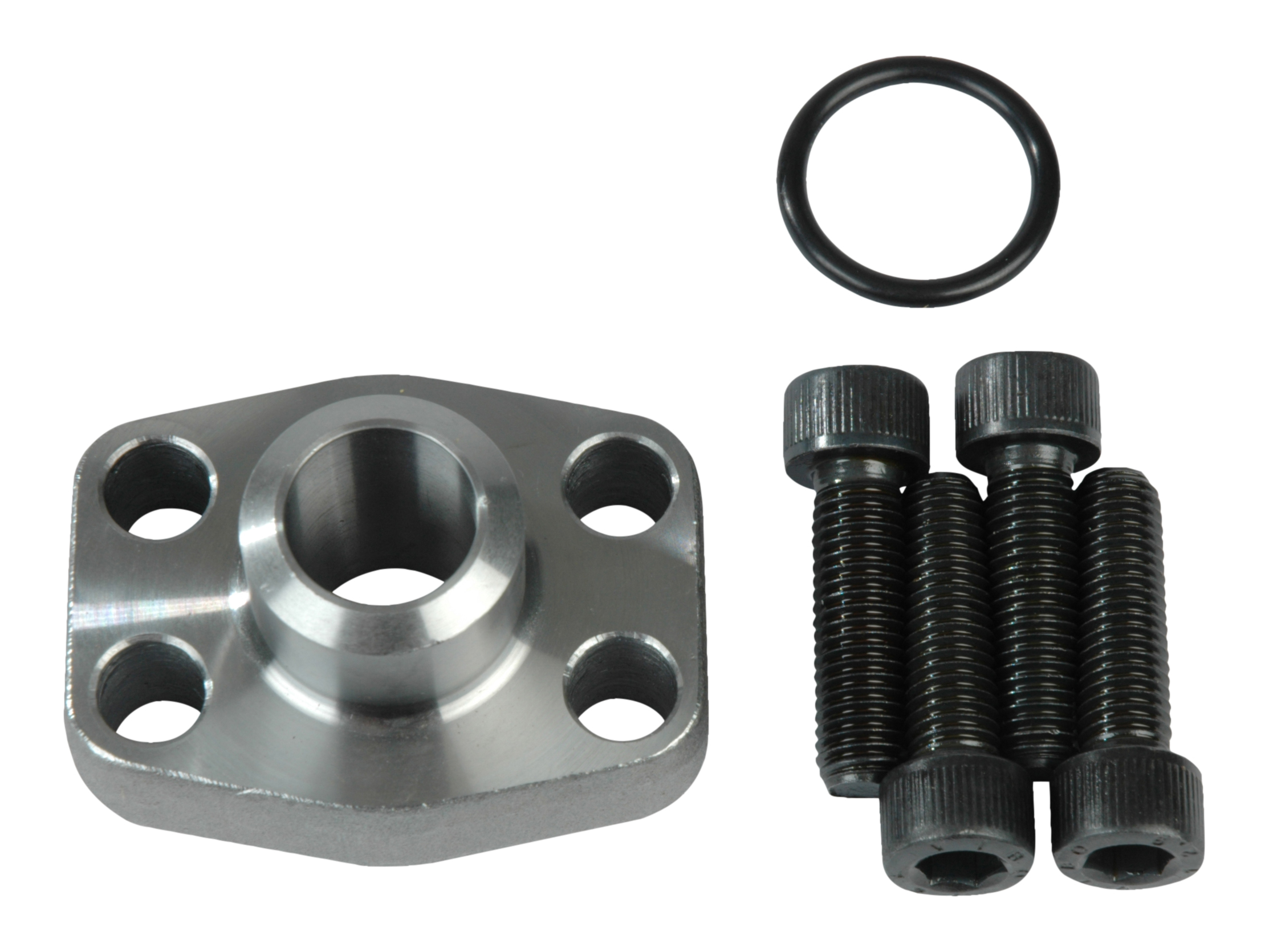

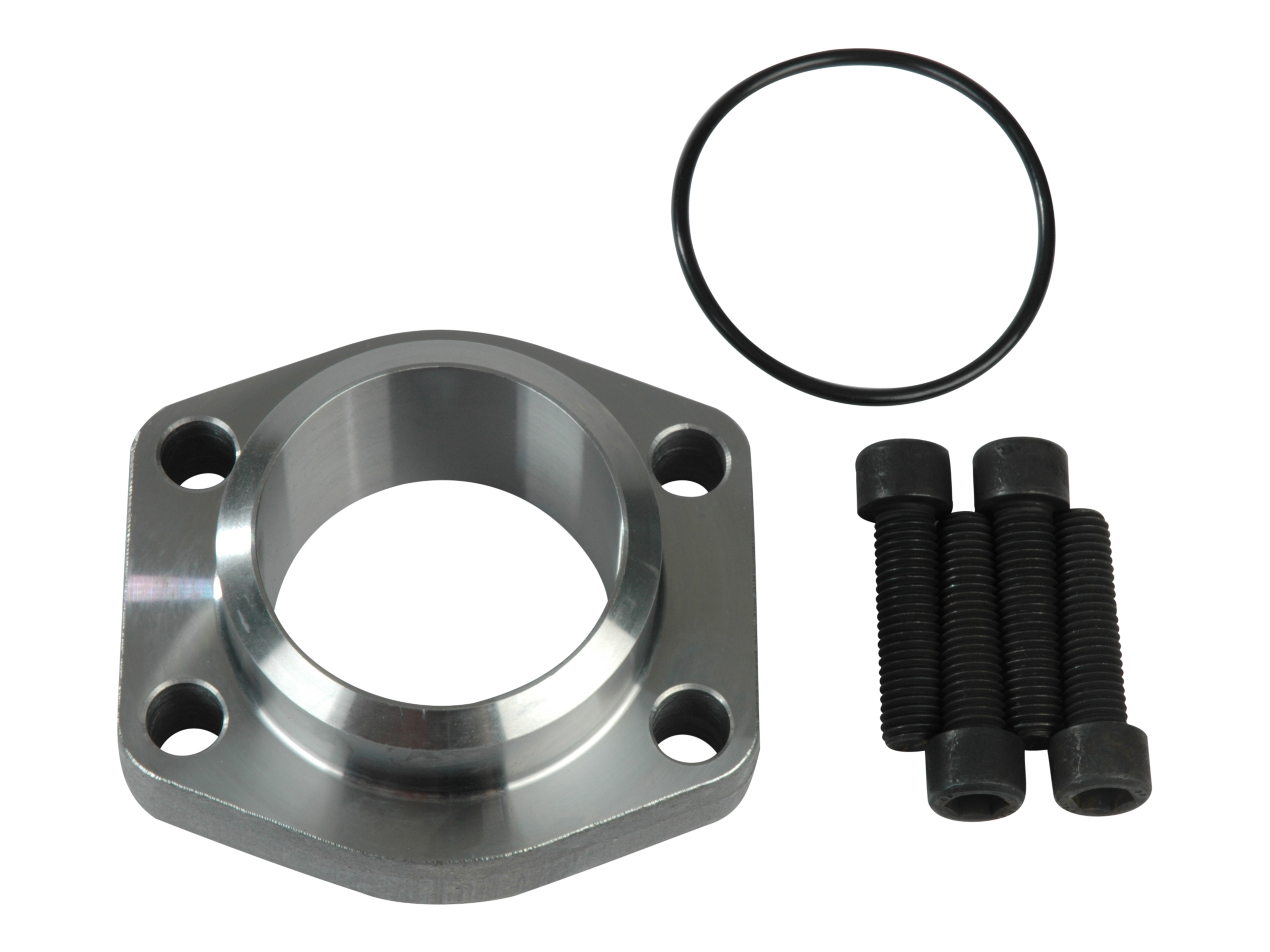

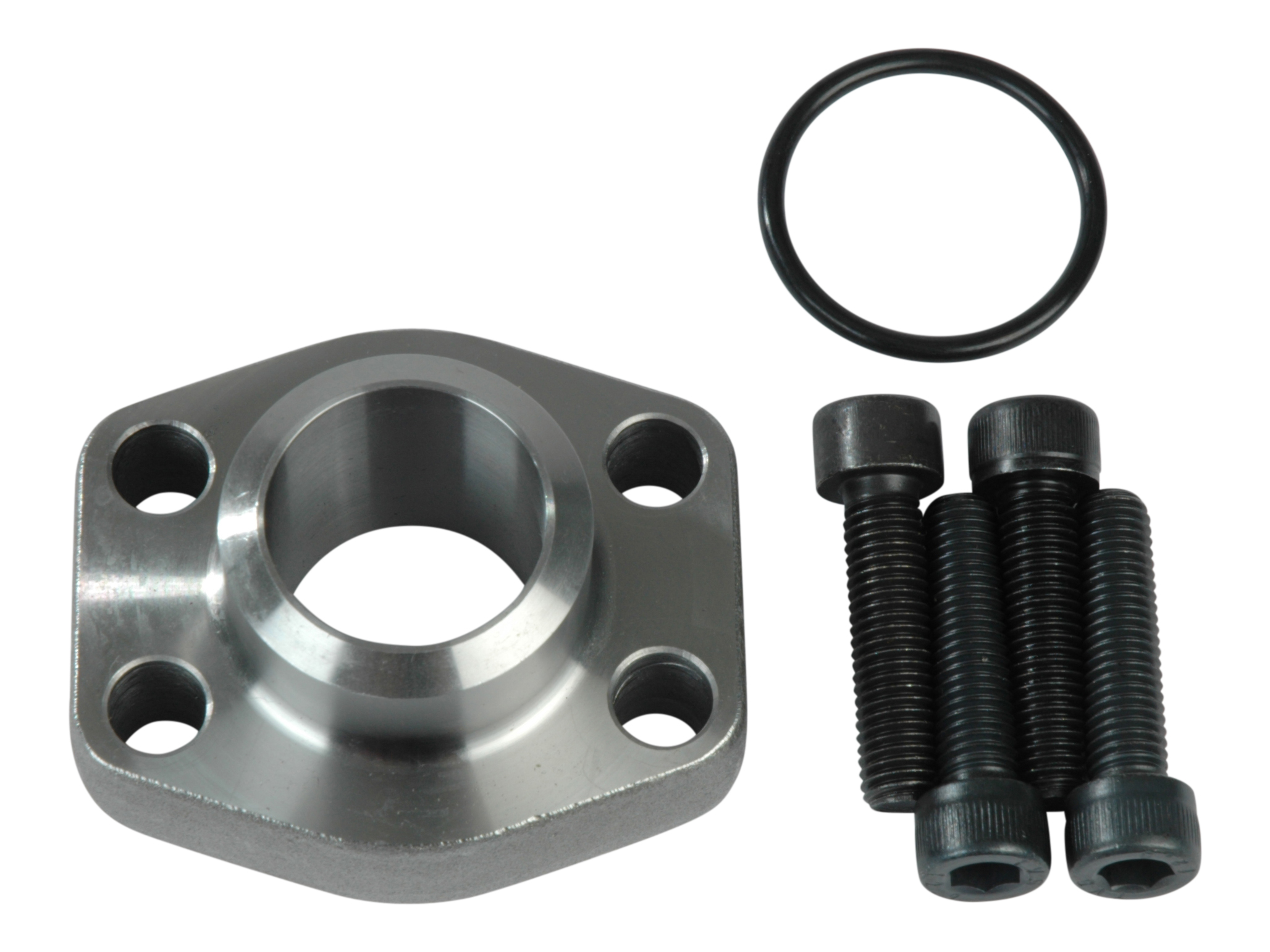

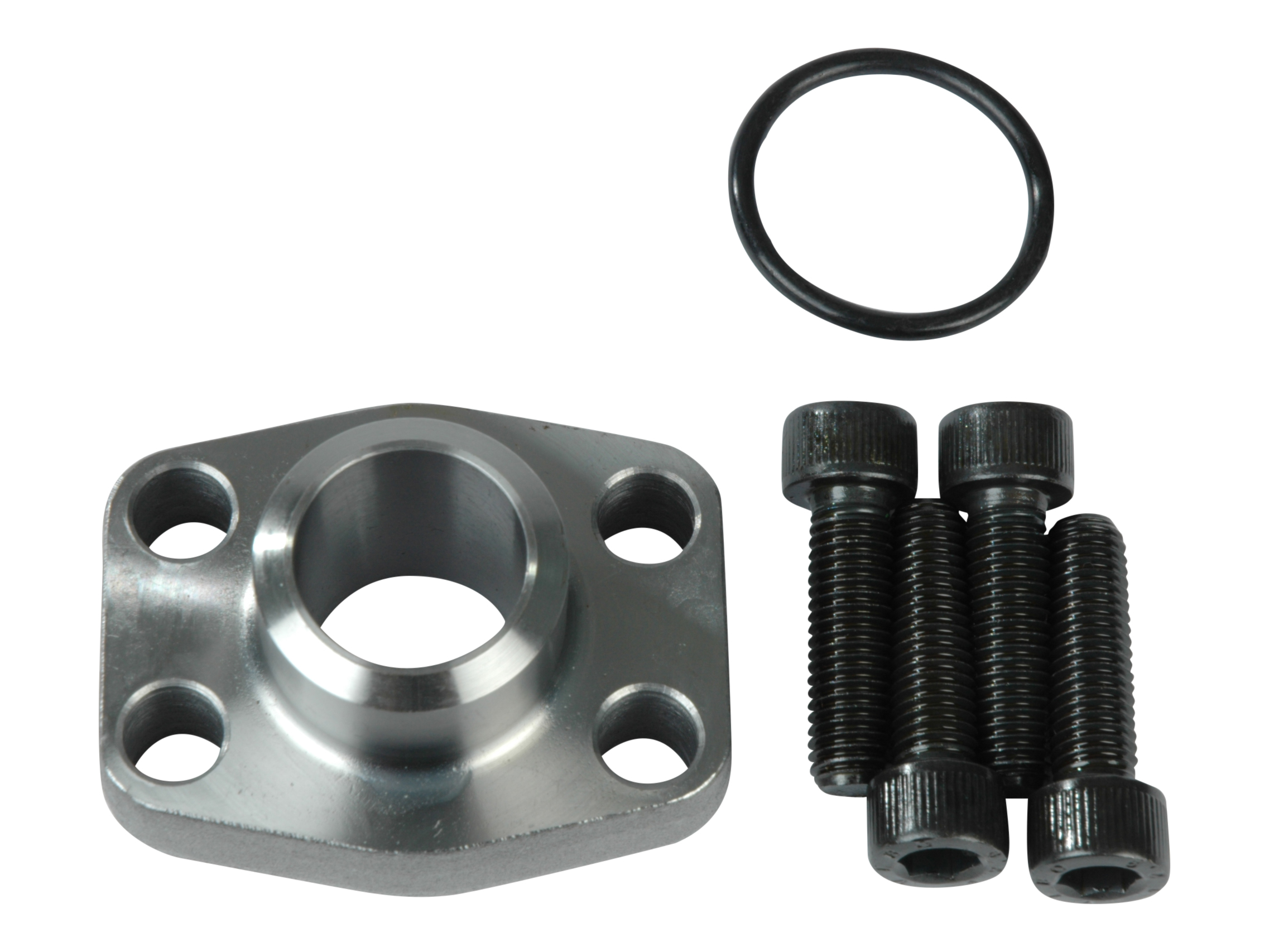

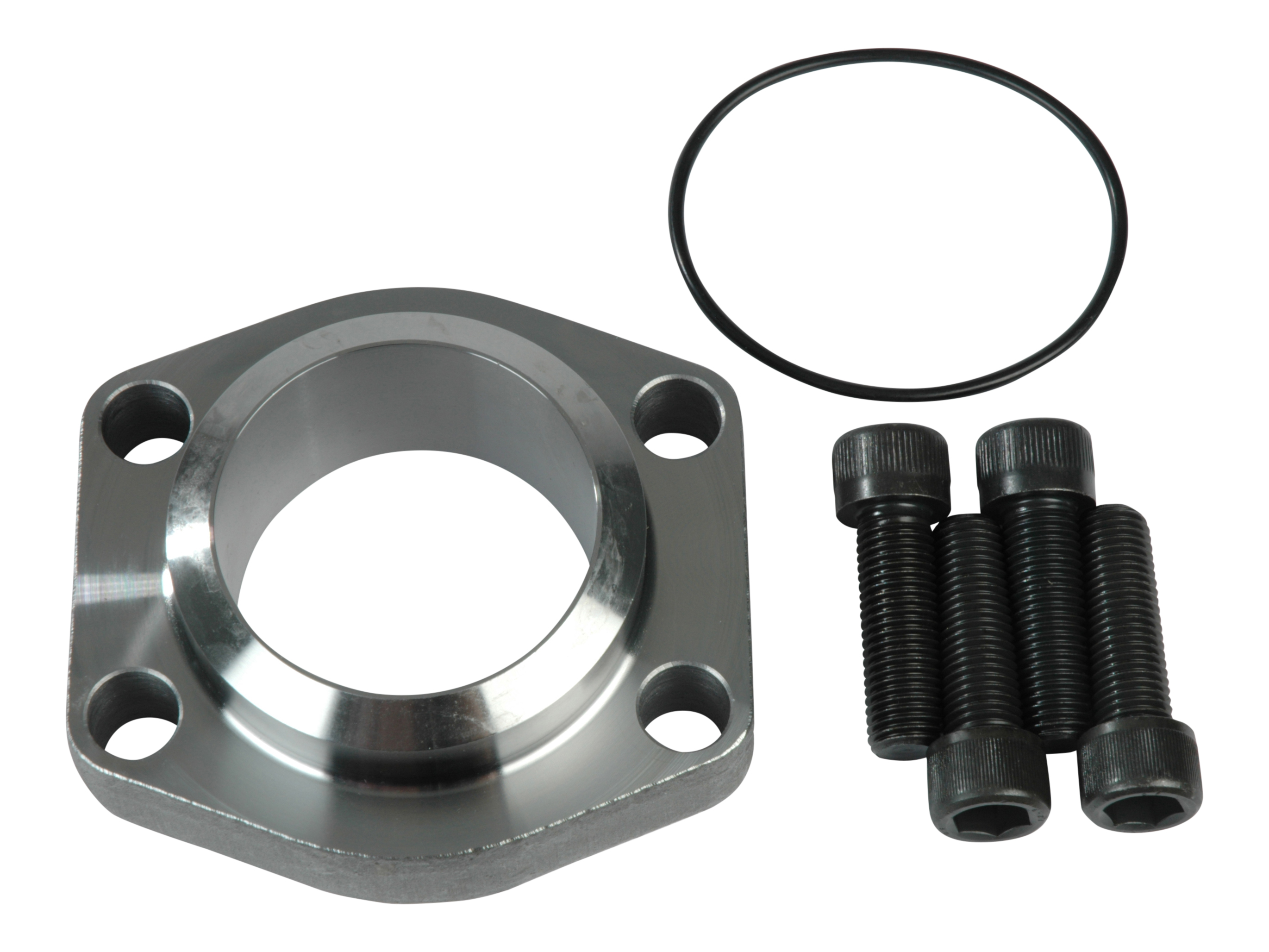

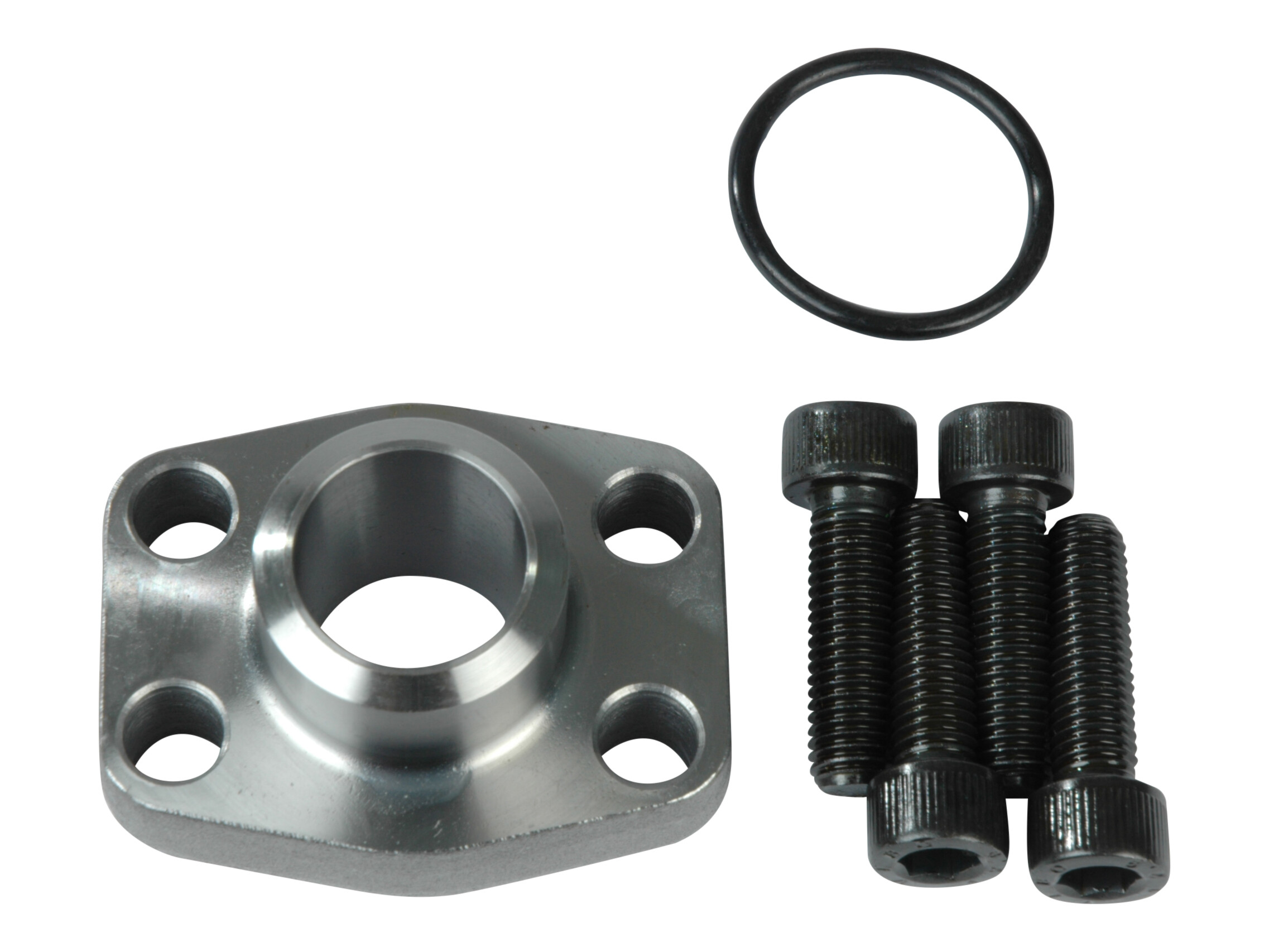

Butt weld flange 0° SAE 3000 PSI with O-ring and MM bolts - AFS-STM /AFX-STM

SELECT VARIANT

Partnumber	Description	Flange SAE/DIN	Flange
AFS100ST-M	Butt weld flange 3/4" SAE3000 - complete	3000 PSI	3/4 "
AFS102ST-M	Butt weld flange 1" SAE3000 - complete	3000 PSI	1 "
AFS104ST-M	Butt weld flange 1.1/4" SAE3000 - complete	3000 PSI	1.1/4 "
AFS106ST-M	Butt weld flange 1.1/2" SAE3000 - complete	3000 PSI	1.1/2 "
AFS110ST-M	Butt weld flange 2.1/2" SAE3000 - complete	3000 PSI	2.1/2 "
AFS112ST-M	Butt weld flange 3" SAE3000 - complete	3000 PSI	3 "
AFS116STM	Butt weld flange 4" SAE3000 - complete	3000 PSI	4 "
AFS118STM	Butt weld flange 5" SAE3000 - complete	3000 PSI	5 "

Brand Name

Havit

Flange SAE/DIN

3000 PSI

Material

Steel

Number of bolts

Sealing material

NBR

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperature max.

+90

Temperature min.

-40
