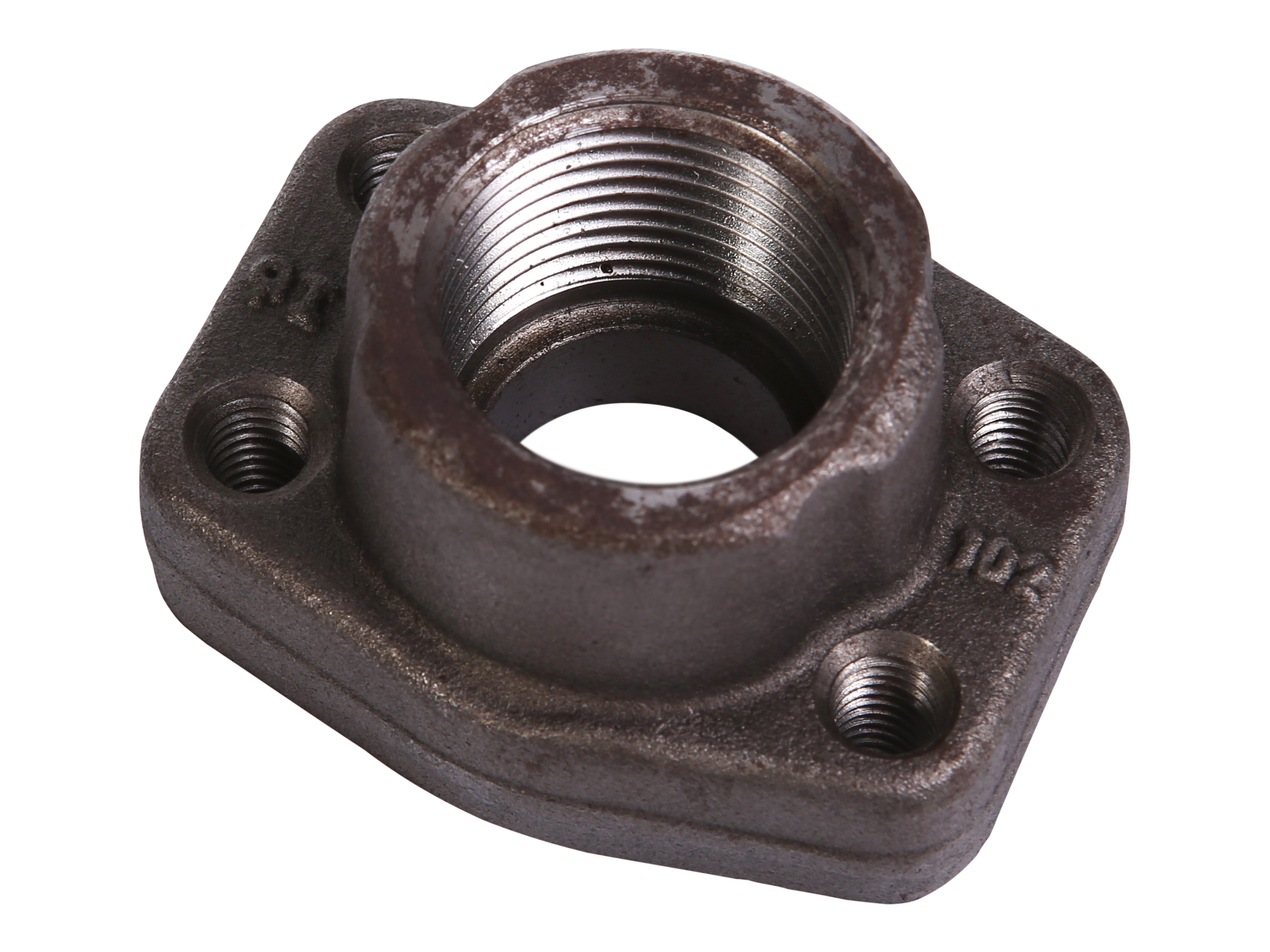

Threaded flange 0° SAE 3000 PSI x BSP female for UNC bolts - GFS-GU

Threaded flange 0° SAE 3000 PSI x BSP female for UNC bolts - GFS-GU

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flange Thread inner Pressure max. O-ring
GFS102GUSORT Threaded flange 1" SAE3000 x 1" BSP - UNC - Black 1 " G 1 BSP 320 bar 32.93X3.53 mm
GFS104GUSORT Threaded flange 1.1/4" SAE3000 - x 1.1/4" BSP - UNC - Black 1.1/4 " G 1.1/4 BSP 280 bar 37.69X3.53 mm
Angle
0
Brand Name
Havit
Flange SAE/DIN
3000 PSI
Material
Steel
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Phosphated (black)
Temperature max.
+90
Temperature min.
-40
