1/4" Shuttle valve

1/4" Vekselventil

Artikelnummer:

VU2P-14

Förpackningsstorlek:

1 pcs

Minsta beställningskvantitet:

1 pcs

Specifikationer
Dimensioner og forsendelse

Brand Name

OM Oleodinamica Marchesini

Dimension H

40 mm

Dimension L

60 mm

Dimension L1

104 mm

Dimension L2

9 mm

Dimension L3

44 mm

Dimension P

1/4 BSP

Dimension S

30 mm

Dimension U

1/4 BSP

Dimension ØD

8.5 mm

Flow max.

30 lpm

Flow rate nominal LMin

30 lpm

Material

Steel

Oil Temperature Recommended

50 °C

Oil viscocity recommended

30 cSt

Pressure max.

350 bar

Sealing material

NBR

Surface treatment

Zinc-plated

Temperature max.

+100 °C

Temperature min.

-30 °C

Thread

G 1/4 BSP

Pakke str.

1 pcs

Stregkode

5704334776734

Brutto vægt

Netto vægt

Oprindelsesland

ITA

Intrastat varekode

84812010

Produkt information

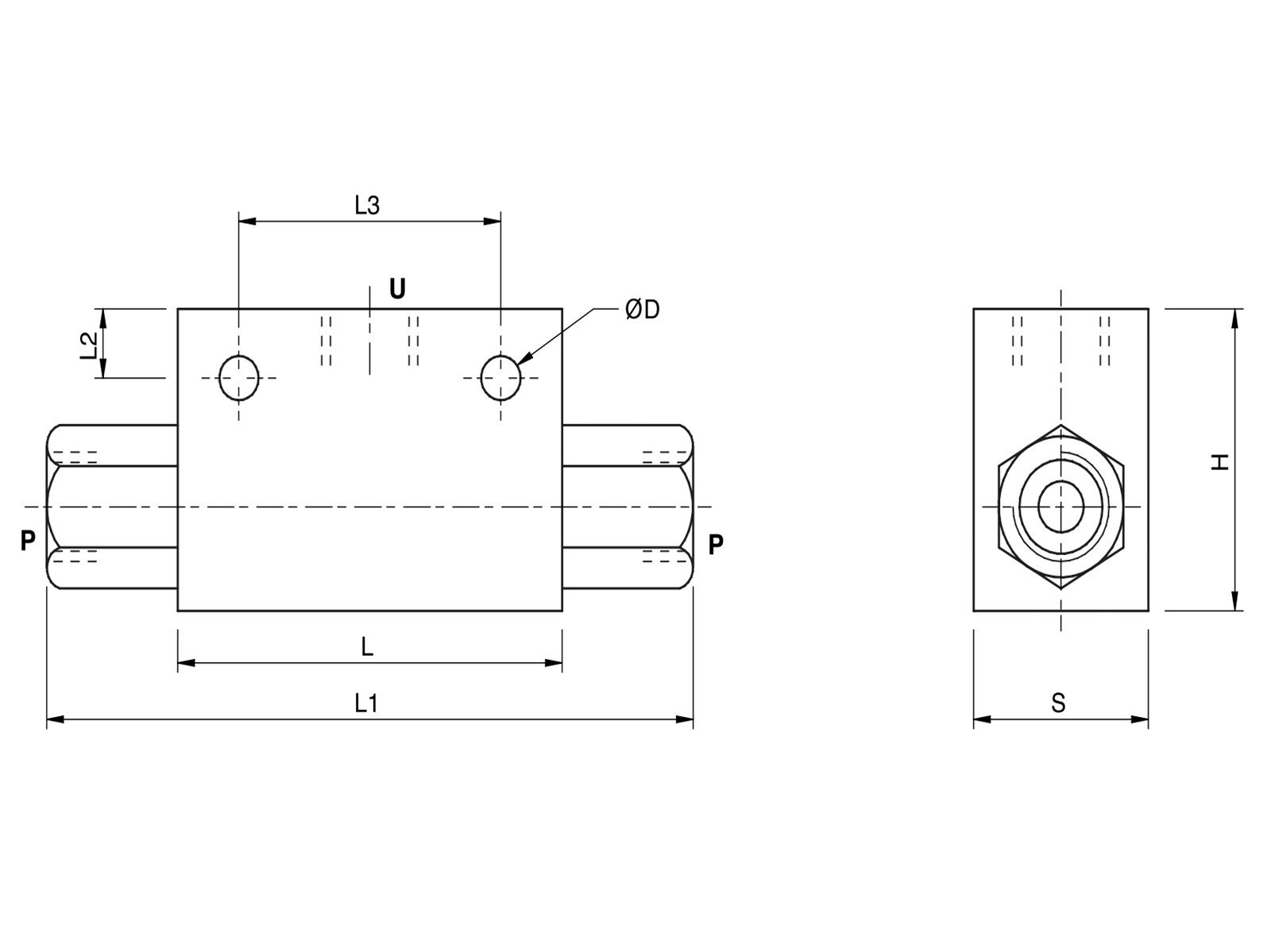

Målskitse

1/4" Vekselventil
