Breakaway coupling male VF - DN06 - M22x1.5 (15L) - bulk
Quick-coupling for hydraulic brakes on agricultural trailers.
Male part is mounted on the tractor, female part on the trailer etc.
Partnumber:
VF22MM
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Faster
Corrosion resistance
500 hours salt spray ISO 9227

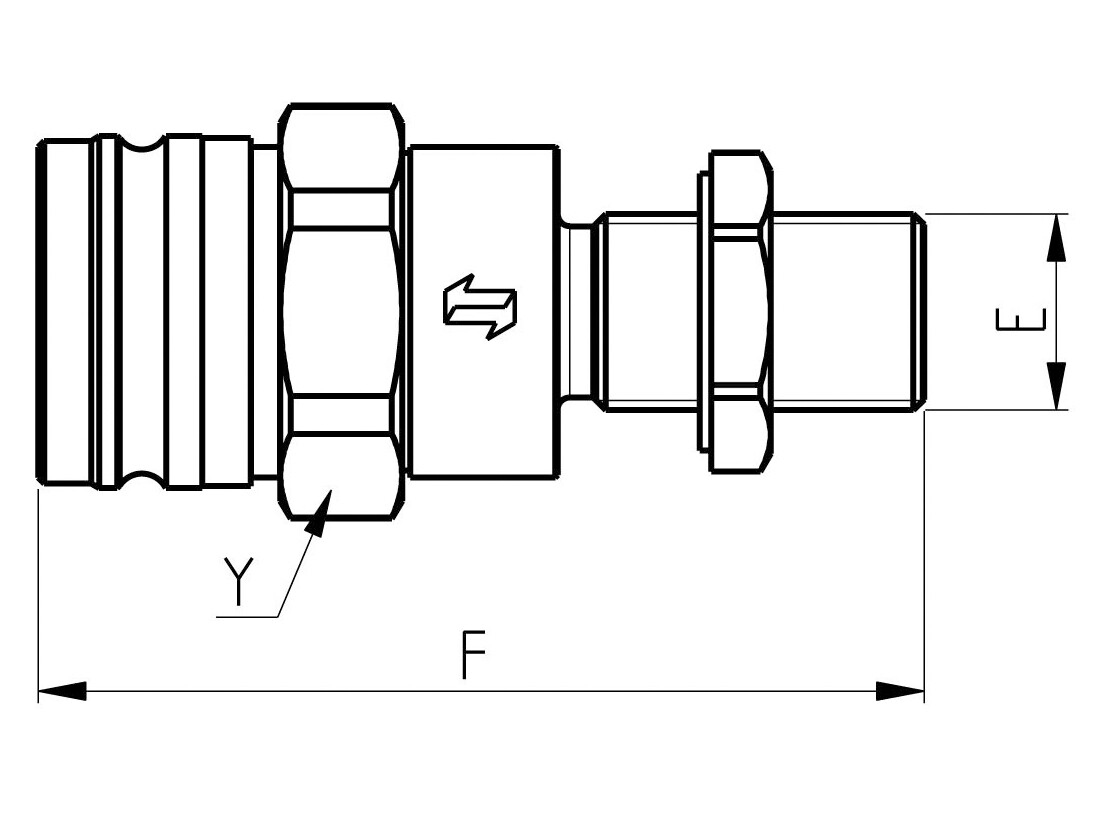

E
M22x1,5
F
59 mm
Flow Rate
40 lpm
Flow rate nominal LMin
40 lpm
Force To Connect
100 N
Hexagon
32 mm
L
59 mm
Material
Steel
Model code
VF 5/2215 M
Pressure burst min.
900 bar
Pressure eliminator
No
Pressure max.
150 bar
Pressure max. connected
150 bar
Pressurized connection
Not allowed
Sealing material
NBR
Size
10 mm
Size
3/8 "
Size nominal
06
Spillage
0,05 ml
Standard ISO
ISO 5676
Surface treatment
MATE 500 (CrIII)
Temperature max.
+125 °C
Temperature min.
-25 °C
Thread outer metric
M22x1,5
Valve type
Flat
Working Pressure
150 bar
Working Pressure
15 MPa
Y
32 mm
Package size
0 pcs
Barcode
5704334306221
Gross weight
0,18 Kg
Net weight
0,18 Kg
Country of origin
ITA
Intrastat code
84812010
Quick-coupling for hydraulic brakes on agricultural trailers.
Male part is mounted on the tractor, female part on the trailer etc.
