Logic valve Sterling

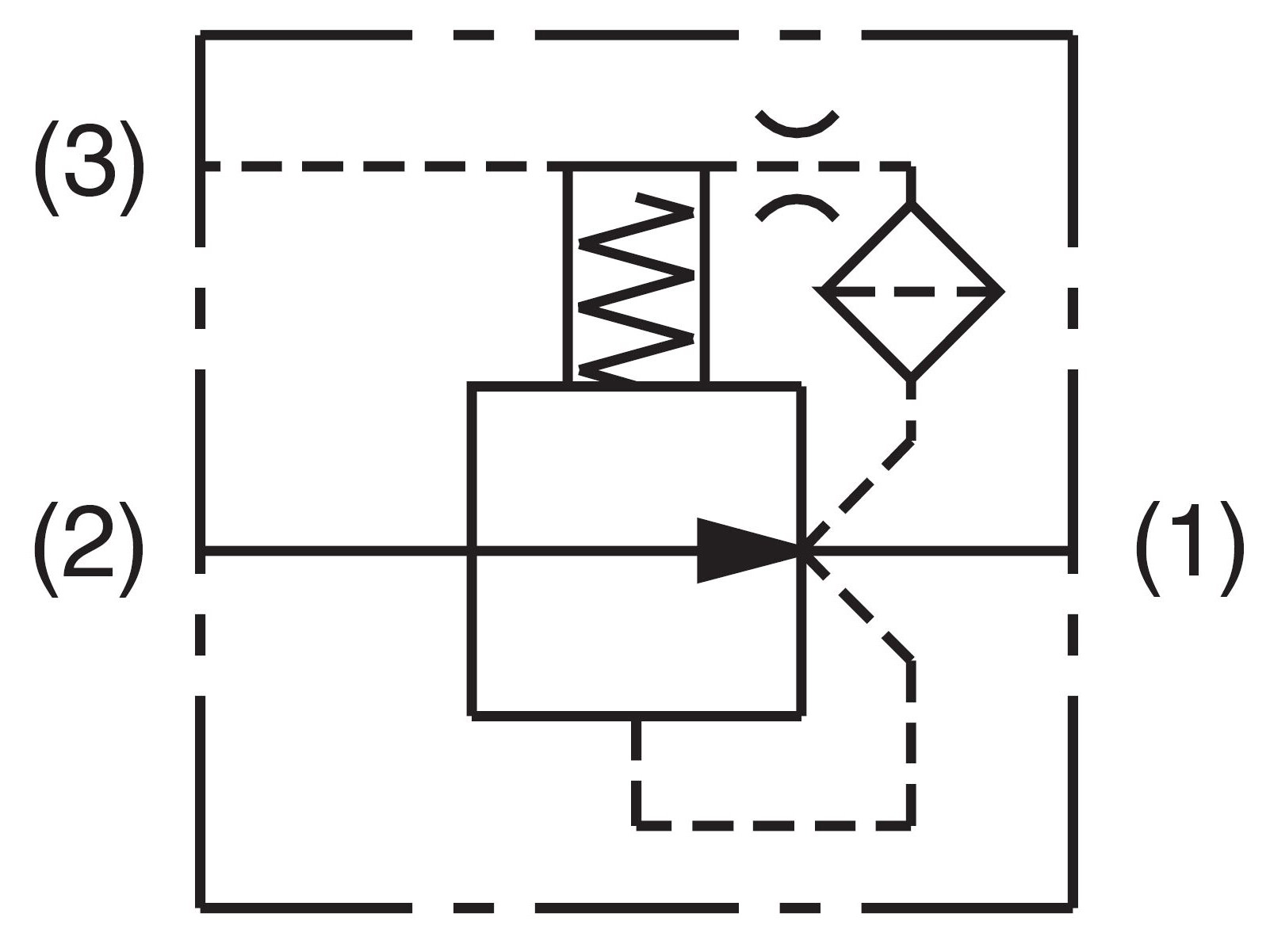

Spool Type , Normally Open, Vent to Close Logic element.

Features:

  • High flow capacity
  • Used as high flow switching or metering element
  • Can be used as pressure regulator with mainstage controlled remotely by a pilot relief valve or a proportional valve
  • Various switching pressures available
  • Integral 250-micron pilot flow filter
  • Hardened working parts for maximum durability
  • All external parts zinc plated

Varenummer:
R06G3-5.5N

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Seal kit for Sterling valve
Partnumber: 3-0508
Brand Name
Hydraspecma

Cavity
CAV06-S3

Contamination level max.
-/16/13 - ISO 4406

Flow rate nominal LMin
90 lpm

Oil viscocity recommended
15 - 50 cSt

Pressure max.
420 bar

Temperature max.
+93 °C

Temperature min.
-40 °C

Torque tightening
100 Nm
Package size
0 pcs

Barcode
5704295930008

Gross weight
0,41 Kg

Net weight
0,41 Kg

Country of origin

Intrastat code
84812010

Spool Type , Normally Open, Vent to Close Logic element.

Features:

  • High flow capacity
  • Used as high flow switching or metering element
  • Can be used as pressure regulator with mainstage controlled remotely by a pilot relief valve or a proportional valve
  • Various switching pressures available
  • Integral 250-micron pilot flow filter
  • Hardened working parts for maximum durability
  • All external parts zinc plated
