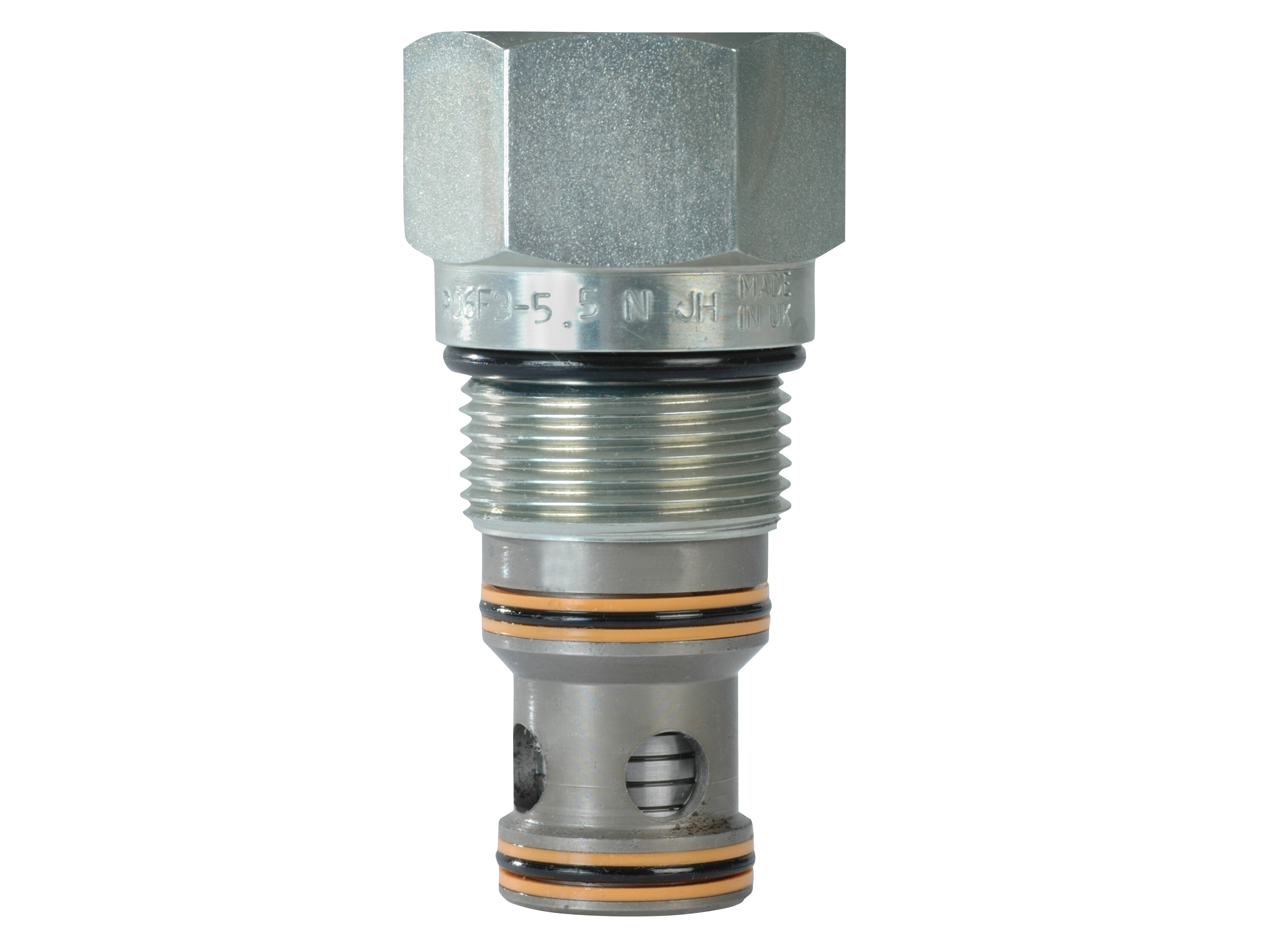

LOGIKV. S-H 16-3S NC 420 BAR
Spool Type , Normally Closed, Vent to Open Logic element
Features
- High flow capacity
- Used as high flow switching or metering element
- Can be used as main stage for a pilot operated relief or sequence valve
- Integral 250 micron pilot flow filter
- Various switching pressures available
- 1:1 pilot pressure ratio
- Hardened working parts for maximum durability
- All external parts zinc plated
Varenummer:
R06F3-5.5N
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Hydraspecma
Cavity
CAV06-S3
Contamination level max.
-/16/13 - ISO 4406
Flow rate nominal LMin
270 lpm
Oil viscocity recommended
15 - 50 cSt
Pressure max.
420 bar
Temperature max.
+93 °C
Temperature min.
-40 °C
Torque tightening
100 Nm
Package size
0 pcs
Barcode
5704295357133
Gross weight
0,43 Kg
Net weight
0,43 Kg
Country of origin
gbr
Intrastat code
84812010
Spool Type , Normally Closed, Vent to Open Logic element
Features
- High flow capacity
- Used as high flow switching or metering element
- Can be used as main stage for a pilot operated relief or sequence valve
- Integral 250 micron pilot flow filter
- Various switching pressures available
- 1:1 pilot pressure ratio
- Hardened working parts for maximum durability
- All external parts zinc plated
