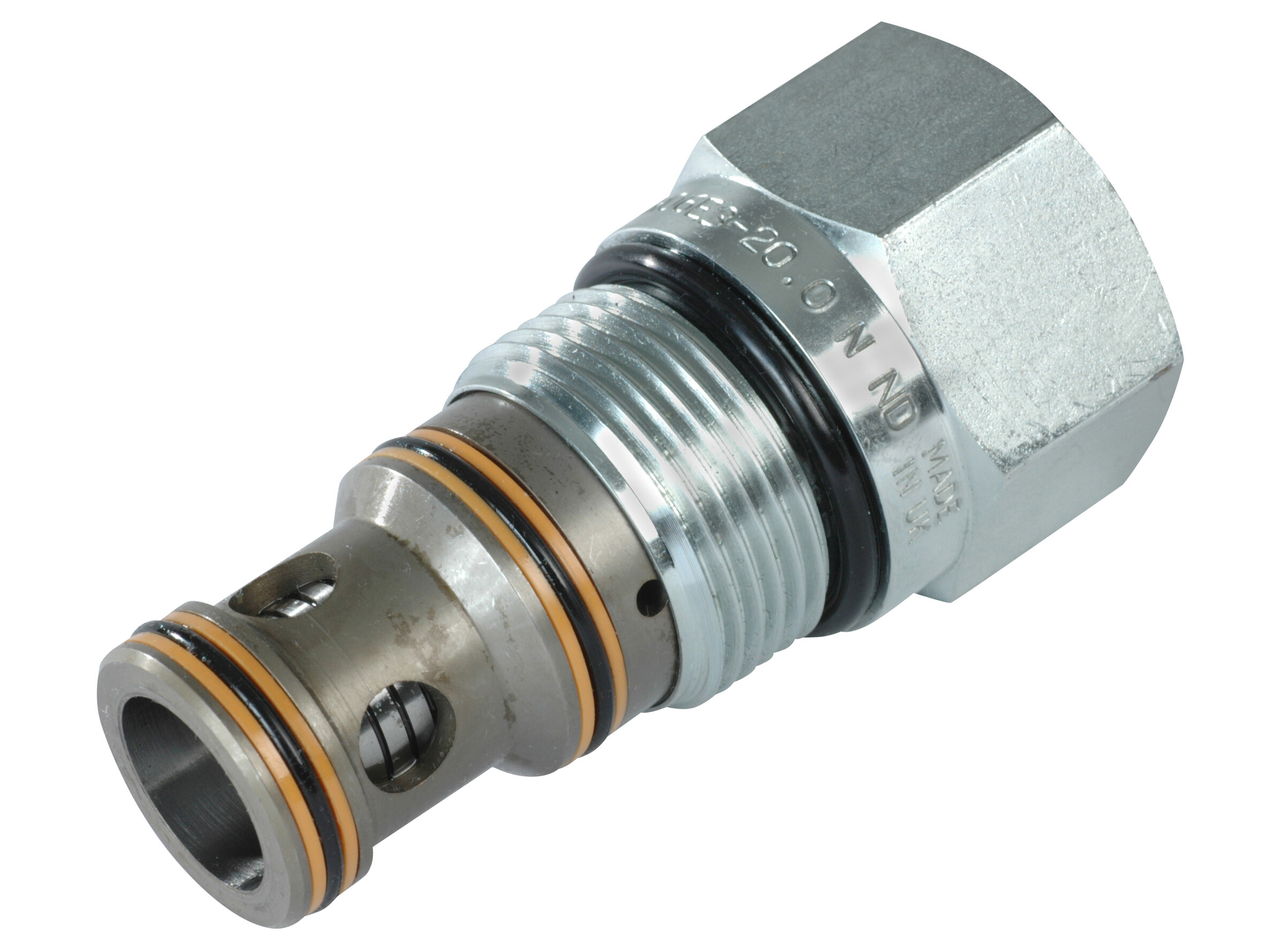

Logic valve Sterling

Spool Type , Normally Closed, Pilot to Close Logic Element.



Features:

  • High flow capacity
  • Used as high flow switching or metering element
  • Can be used as bleed off style pressure compensated flow regulator when used with restrictor
  • More stable than poppet type
  • 1:1 pilot pressure ratio
  • Hardened working parts for maximum durability
  • All external parts zinc plated

Partnumber:
R06E3-20.0N

Package size:
0 pcs

Min. order quantity is:
20 pcs
Seal kit for Sterling valve
Partnumber: 3-0508
Brand Name
Hydraspecma

Cavity
CAV06-S3

Contamination level max.
-/16/13 - ISO 4406

Flow rate nominal LMin
270 lpm

Oil viscocity recommended
15 - 50 cSt

Pressure max.
420 bar

Pressure opening
20 bar

Temperature max.
+93 °C

Temperature min.
-40 °C

Torque tightening
100 Nm
Package size
0 pcs

Barcode
5704334177739

Gross weight
0,45 Kg

Net weight
0,45 Kg

Country of origin

Intrastat code
84812010

Spool Type , Normally Closed, Pilot to Close Logic Element.



Features:

  • High flow capacity
  • Used as high flow switching or metering element
  • Can be used as bleed off style pressure compensated flow regulator when used with restrictor
  • More stable than poppet type
  • 1:1 pilot pressure ratio
  • Hardened working parts for maximum durability
  • All external parts zinc plated
