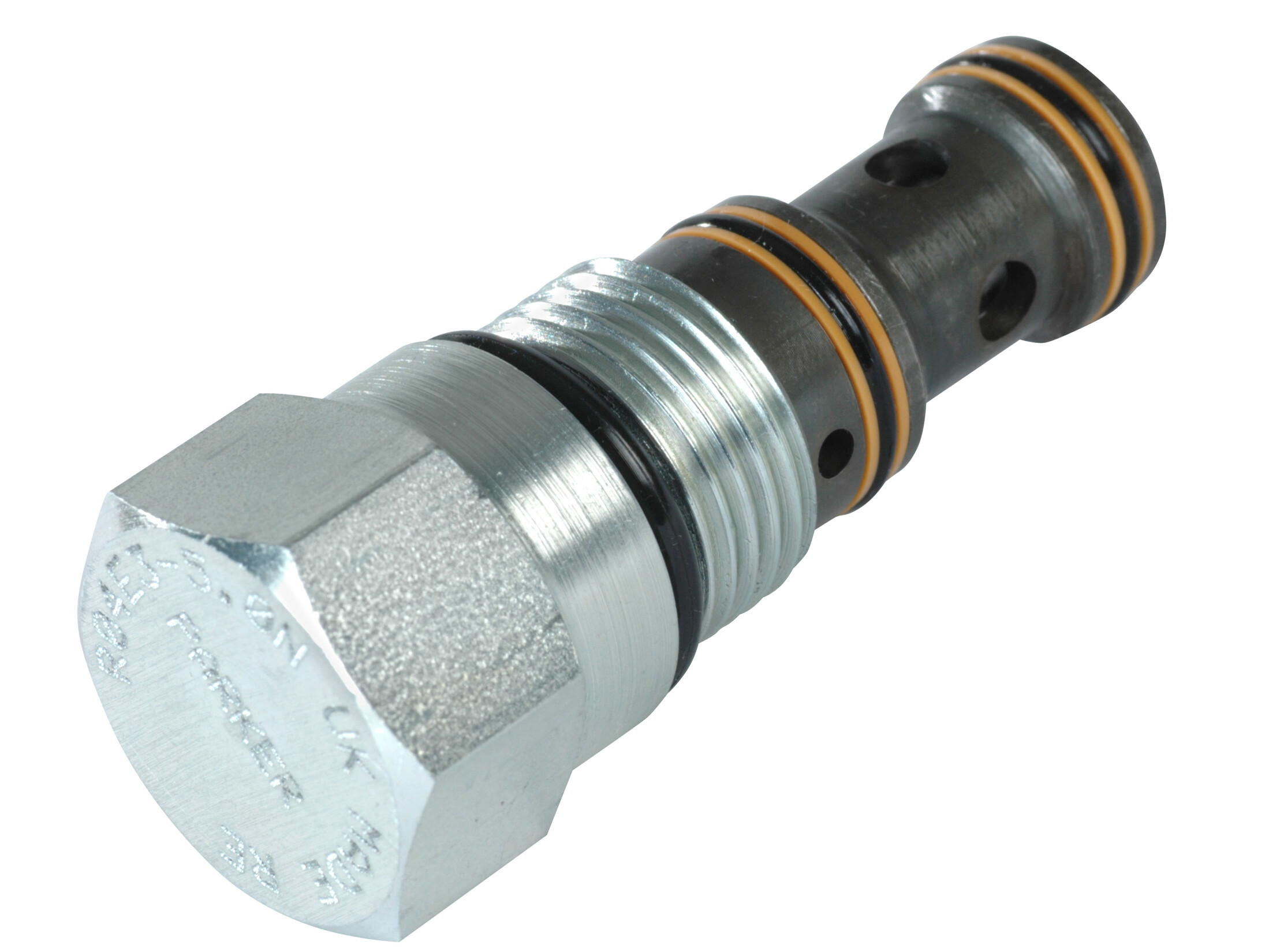

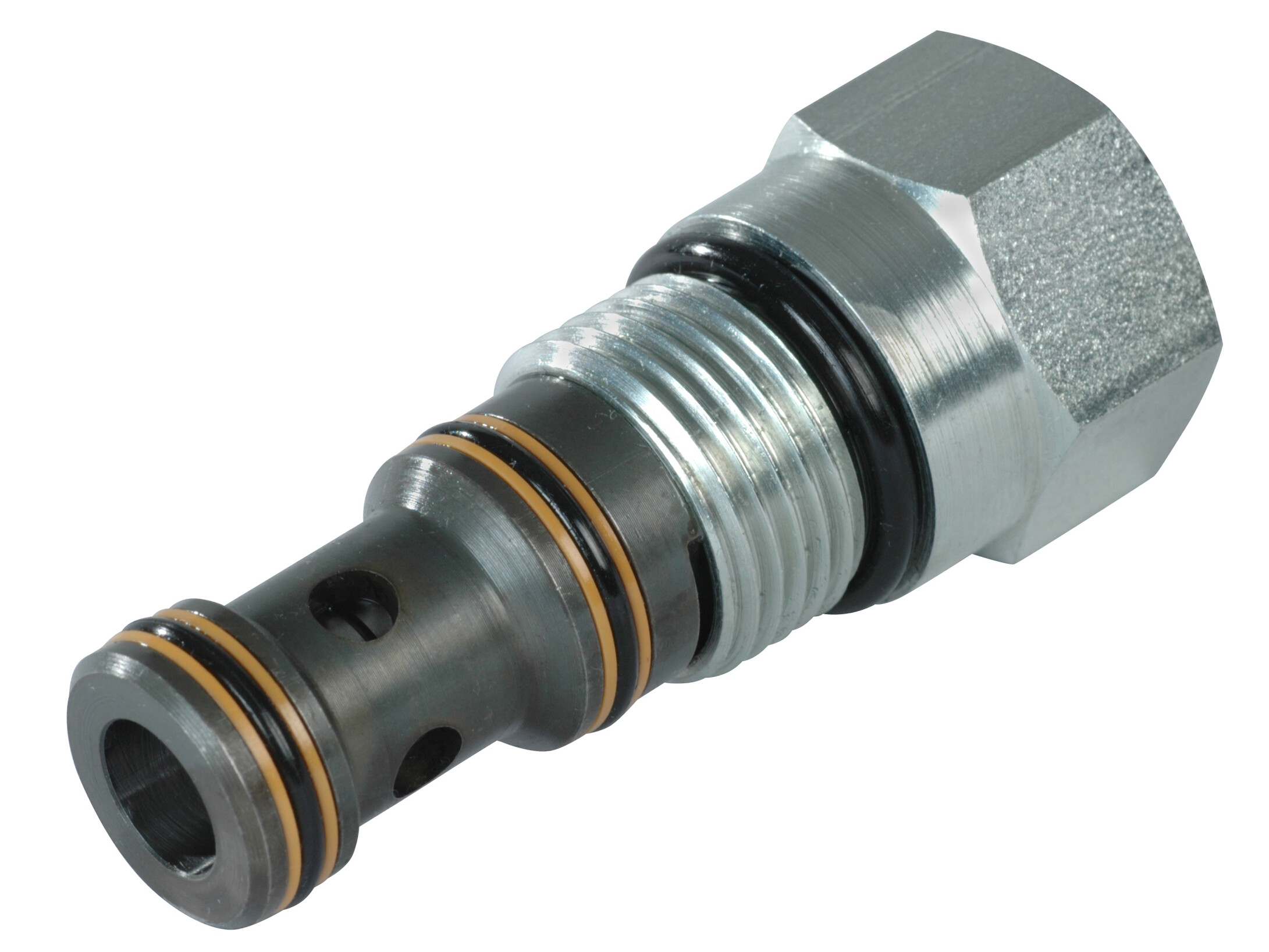

LOGIKV. S-H 10-3S 420 BAR
Spool Type , Normally Closed, Pilot to Close Logic element.
Features:
- High flow capacity
- Used as high flow switching or metering element
- Can be used as bleed off style pressure compensated flow regulator when used with restrictor
- 1:1 pilot pressure ratio
- Hardened working parts for maximum durability
- All external parts zinc plated
Artikelnummer:
R04E3-5.0N
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Hydraspecma
Cavity
CAV04-S3
Contamination level max.
-/16/13 - ISO 4406
Flow rate nominal LMin
100 lpm
Oil viscocity recommended
15 - 50 cSt
Pressure max.
420 bar
Pressure opening
15 bar
Temperature max.
+93 °C
Temperature min.
-40 °C
Torque tightening
50 Nm
Förpackningsstorlek
0 pcs
Streckkod
5704295899534
Bruttovikt
0,16 Kg
Nettovikt
0,16 Kg
Ursprungsland
gbr
Intrastat artikelkod
84812010
Spool Type , Normally Closed, Pilot to Close Logic element.
Features:
- High flow capacity
- Used as high flow switching or metering element
- Can be used as bleed off style pressure compensated flow regulator when used with restrictor
- 1:1 pilot pressure ratio
- Hardened working parts for maximum durability
- All external parts zinc plated
