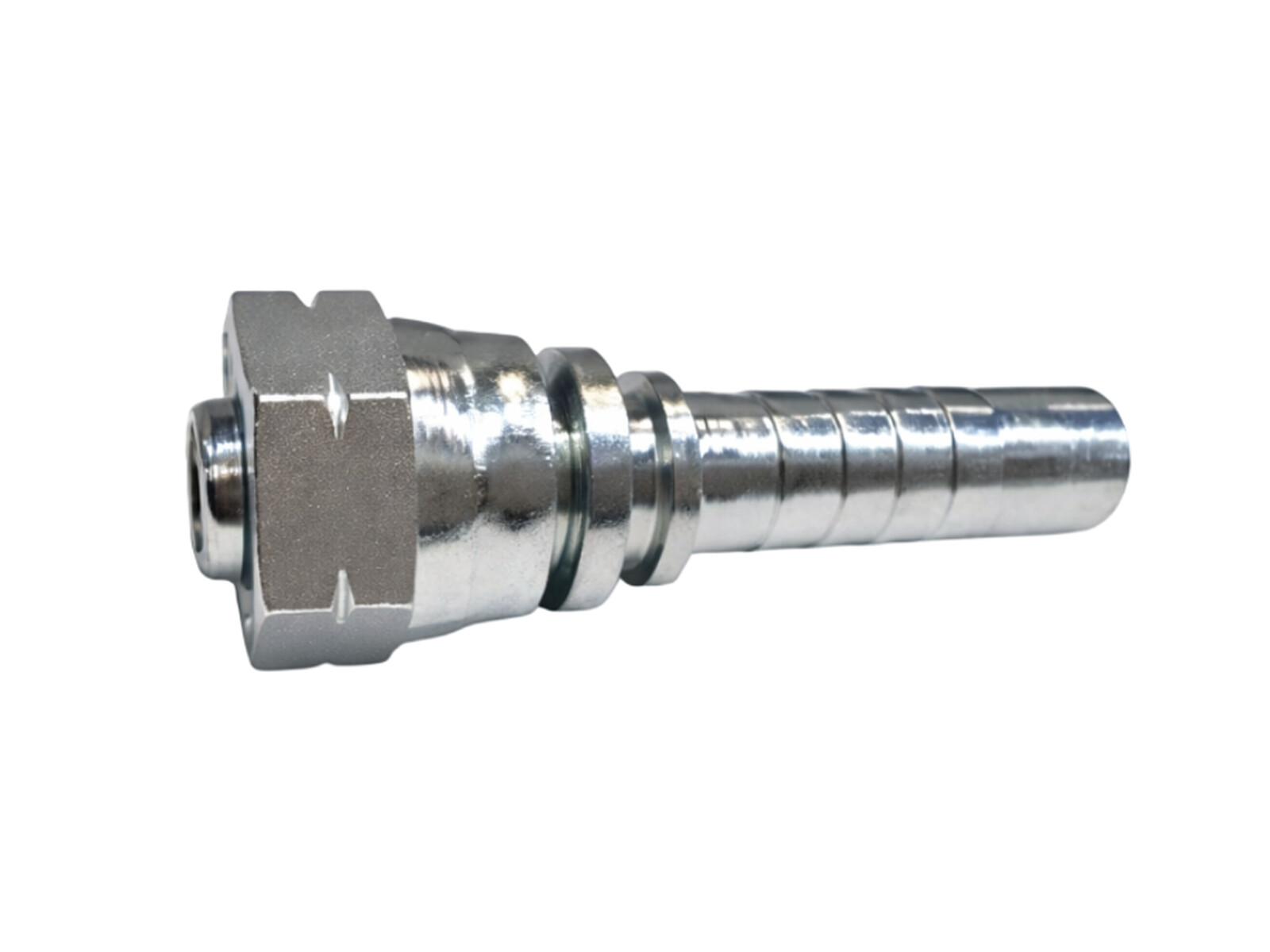

Insert 3/8" - M16x1.5 nut 10L
Insert with MM female thread in nut and 24° cone face with o-ring.
Connection: MM female thread and 24° cone face with o-ring (DIN2353).
Sealing: O-ring against cone face.
Partnumber:
P0610RO16A
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter rør
10 mm

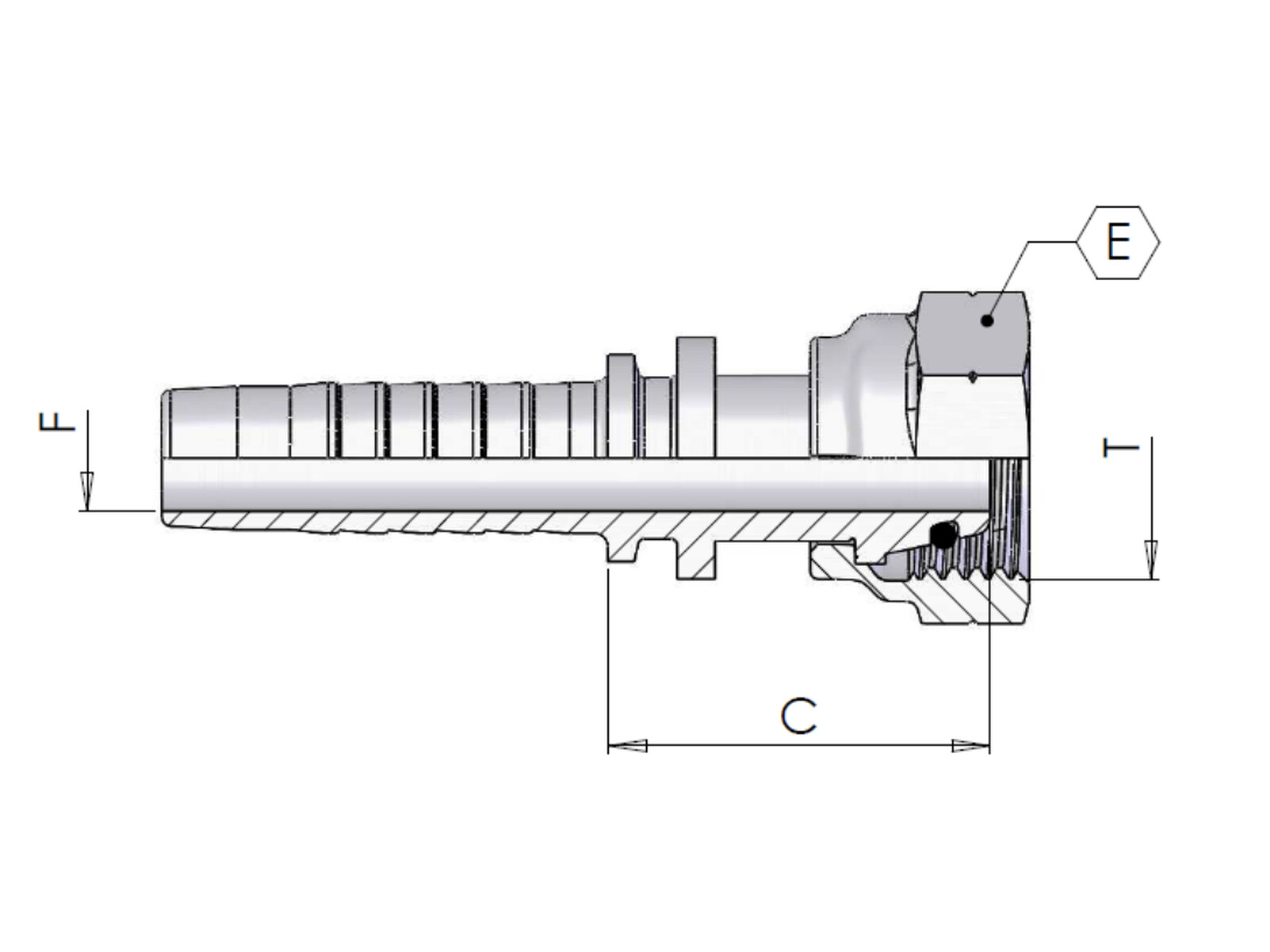

Dimension C
25 mm
Dimension E
19 mm
Dimension T metrisk
M16x1,5
Korrosions resistens
720 hours salt spray DIN EN ISO 9227
Materiale
Steel
Model kode
0085-06-16
Mærke navn
I.M.M Hydraulics
Nøglevidde
19 mm
Overfladebehandling
Electro-galvanized / White chromatized
Pakningsmateriale
NBR
Serie
L
Slangekoblingstype
For separate ferrule
Slangestørrelse
3/8 "
Temperatur maks.
+100 °C
Temperatur min.
-30 °C
Tilspændingsmoment
30 Nm
Tryk maks.
350 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704295691305
Gross weight
0,033 Kg
Net weight
0,033 Kg
Country of origin
ita
Intrastat code
73269098
Insert with MM female thread in nut and 24° cone face with o-ring.
Connection: MM female thread and 24° cone face with o-ring (DIN2353).
Sealing: O-ring against cone face.
