STRYPV. S-H 8-2 420 BAR

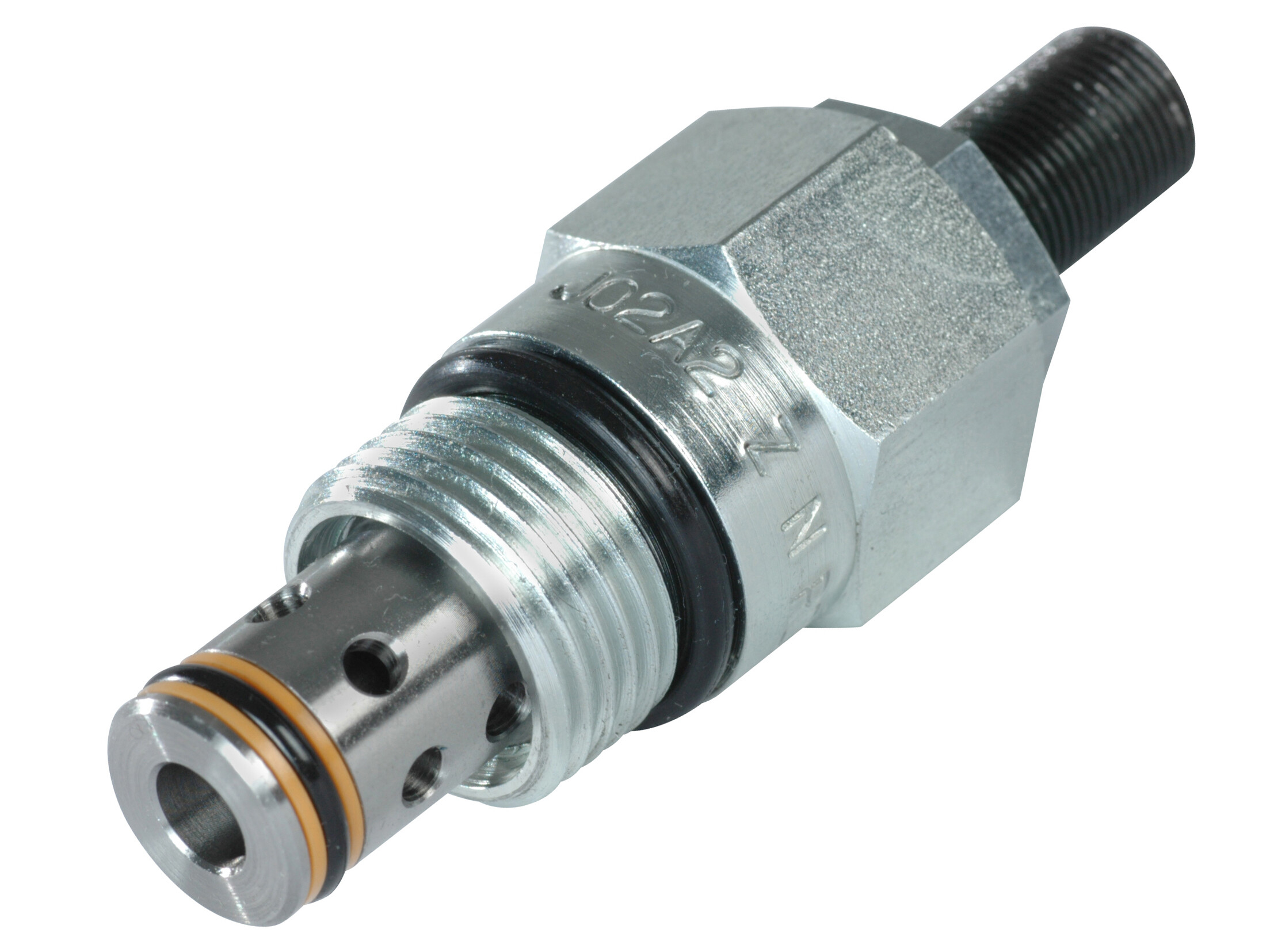

Catridge stype needle valve.
Features
- Shuts off to at very low leakage level
- High flow capacity from a small cavity
- Good adjustment sensitivity – ideal for fine control
- Good contamination tolerant
- All external parts zinc plated.
Varenummer:
J02A2ZN
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Hydraspecma
Cavity
CAV02-2
Flow max. regulated
45 lpm
Flow min. regulated
0 lpm
Flow rate nominal LMin
45 lpm
Inlet flow min.
0 lpm
Oil viscocity recommended
15 - 50 cSt
Pressure compensated
No
Pressure max.
420 bar
Temperature max.
+93 °C
Temperature min.
-40 °C
Torque tightening
40 Nm
Valve type
Throttlevalve
Package size
0 pcs
Barcode
5704295443713
Gross weight
0,11 Kg
Net weight
0,11 Kg
Country of origin
gbr
Intrastat code
84812010
Catridge stype needle valve.
Features
- Shuts off to at very low leakage level
- High flow capacity from a small cavity
- Good adjustment sensitivity – ideal for fine control
- Good contamination tolerant
- All external parts zinc plated.
