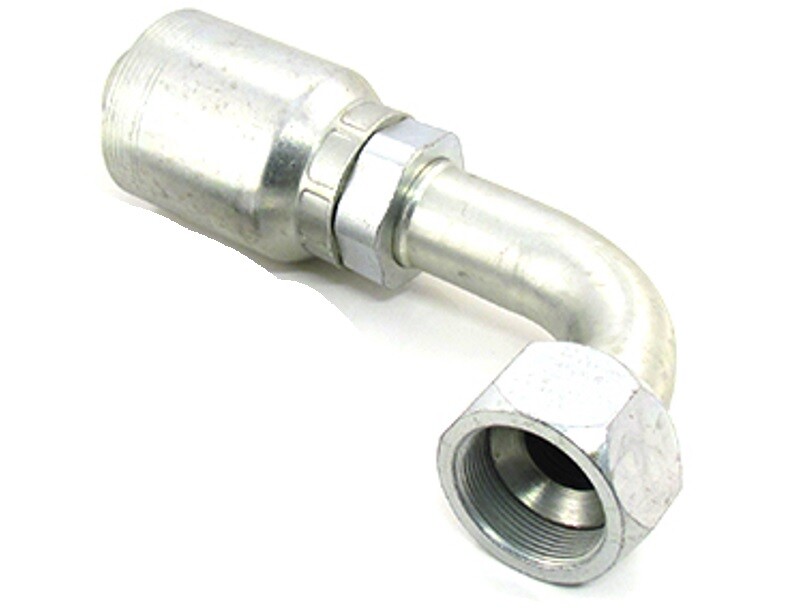

1.1/2" Coupling - 1.7/8"-12 JIC female - 90°

Connector description: Internally threaded JIC hose connector, with UNF thread and 37° internal cone.

Artikelnummer:
GSM2424NJ90

Förpackningsstorlek:
0 pcs

Minsta beställningskvantitet:
1 pcs
Angle
90 °

Brand Name
Gates

Corrosion resistance
500 hours salt spray ASTM B-117

Dimension A
227.5 mm

Dimension B
132.3 mm

Dimension D
1.1/2 "

Dimension E
86 mm

Dimension H1
60 mm

Dimension H2
55 mm

Hose coupling type
With fixed ferrule

Hose size
1.1/2 "

Material
Steel

REACH compliant
Yes

RoHs compliant
Yes

Surface treatment
TuffCoat™

Thread
1.7/8-12 JIC
Pakke str.
0 pcs

Stregkode
5704334379614

Brutto vægt
1,78 Kg

Netto vægt
1,78 Kg

Oprindelsesland
USA

Intrastat varekode
73269098

Connector description: Internally threaded JIC hose connector, with UNF thread and 37° internal cone.
