Coupling 1 , 1.1/4 SAE 3000psi 16G-20FL45S Gates MegaCrimp

Connection: SAE flange. Code 61.

Sealing: O-ring against metal.

Partnumber:

G1620PA45

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

45 °

Brand Name

Gates

Corrosion resistance

500 hours salt spray ASTM B-117

Diameter flange

50.8 mm

Dimension A

149 mm

Dimension B

92.2 mm

Dimension E

32 mm

Dimension K

50.8 mm

Flange

1.1/4 "

Flange SAE/DIN

3000 PSI

Hose coupling type

With fixed ferrule

Hose size

1 "

Model code

16G-20FL45S

O-ring

37,69X3,53 mm

Pressure max.

280 bar

REACH compliant

Yes

RoHs compliant

Yes

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Surface treatment

TuffCoat™

Torque tightening

48 - 62 Nm

Package size

0 pcs

Barcode

5412571969412

Gross weight

0,58 Kg

Net weight

0,58 Kg

Country of origin

USA

Intrastat code

73269098

Product information

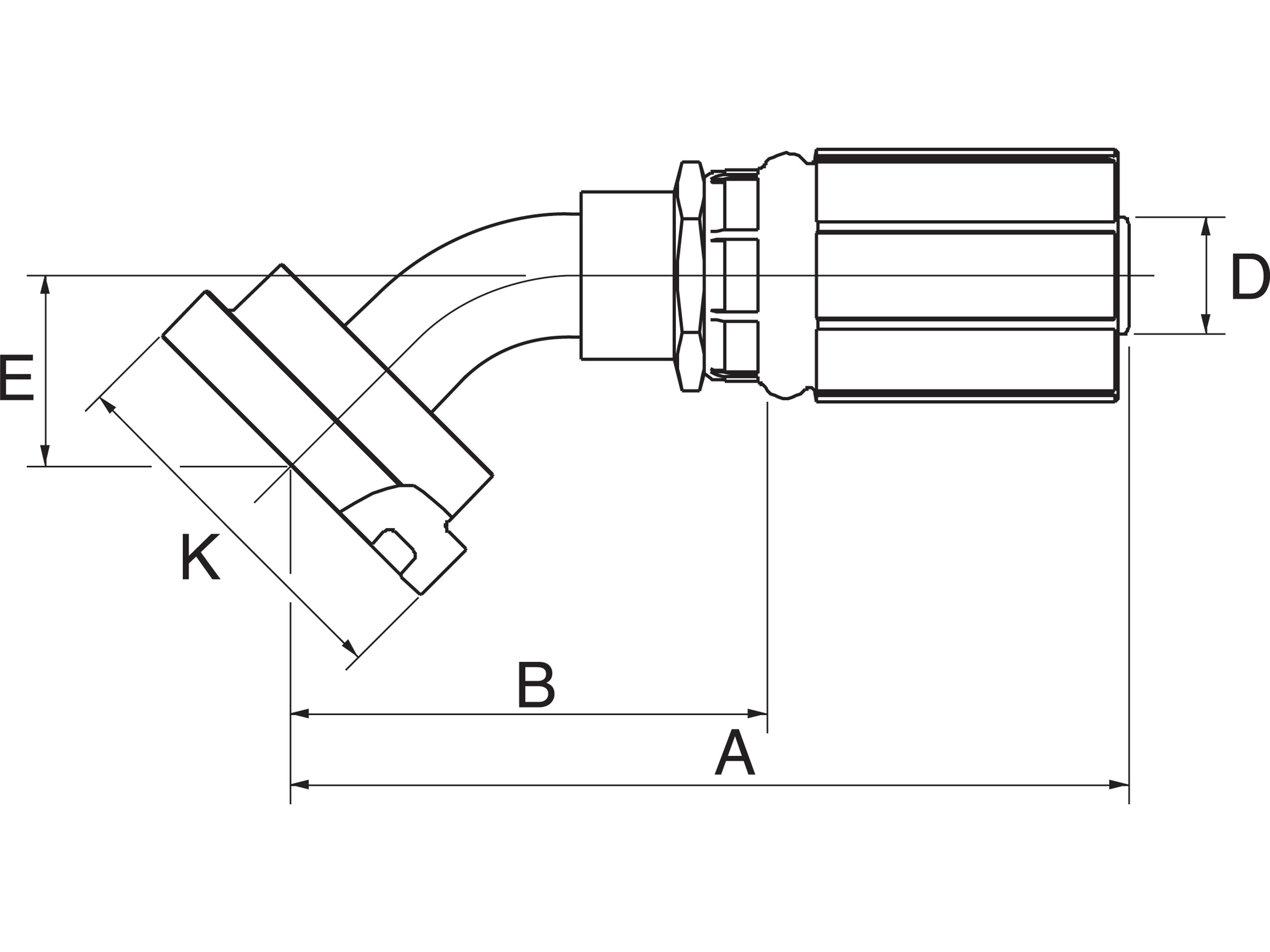

Measure sketch

Connection: SAE flange. Code 61.

Sealing: O-ring against metal.
