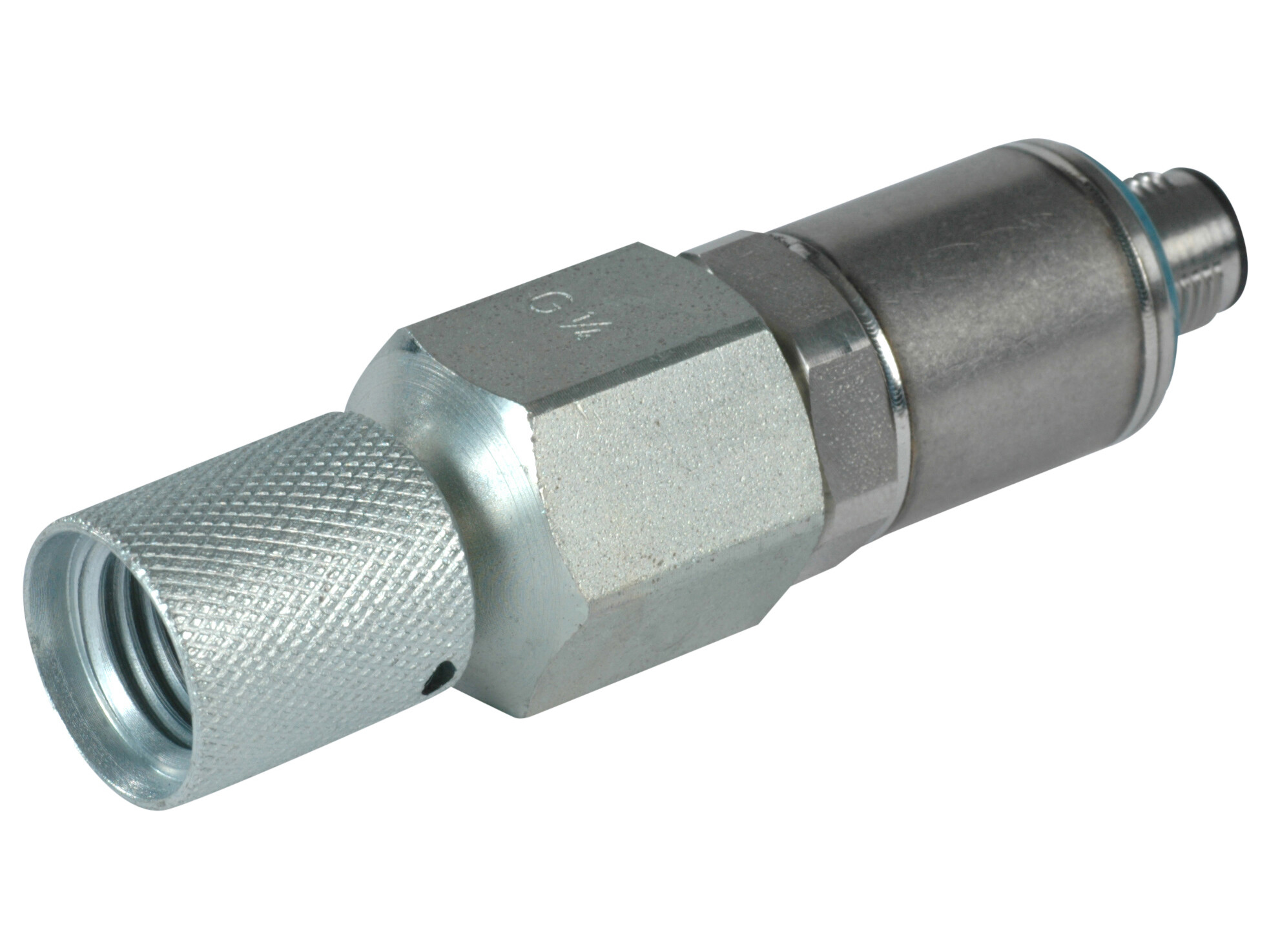

TRYKSENSOR CAN -1-16 bar SR-PTN-016-05-0C-CAN
The PT /2 pressure transmitters can be used with all hydraulic testers of the HPM series, due to their 5-pin connection. The pressure transmitters are a reliable and flexible solution for the HPM series because of their sturdy stainless-steel design, the quick response times (< 1 ms) and the high accuracy (± 0,25% FS* typ.) with automatic sensor recognition. *FS: Full scale.
Artikelnummer:
FT10649-016
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Forsyningsspænding maks.
40 V
Forsyningsspænding min.
8 V
Materiale
Stainless steel
Mærke navn
Webtec
Sensor type
CAN
Strømtype
DC
Temperatur maks.
+105 °C
Temperatur min.
-25 °C
Temperatur omgivelse maks.
+85 °C
Temperatur omgivelse min.
-25 °C
Tryk maks.
32 bar
Tryk sprængning min.
48 bar
Trykmåling
-1 - 16 Bar
Pakke str.
0 pcs
Stregkode
5704334412656
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
Intrastat varekode
90261021
The PT /2 pressure transmitters can be used with all hydraulic testers of the HPM series, due to their 5-pin connection. The pressure transmitters are a reliable and flexible solution for the HPM series because of their sturdy stainless-steel design, the quick response times (< 1 ms) and the high accuracy (± 0,25% FS* typ.) with automatic sensor recognition. *FS: Full scale.
