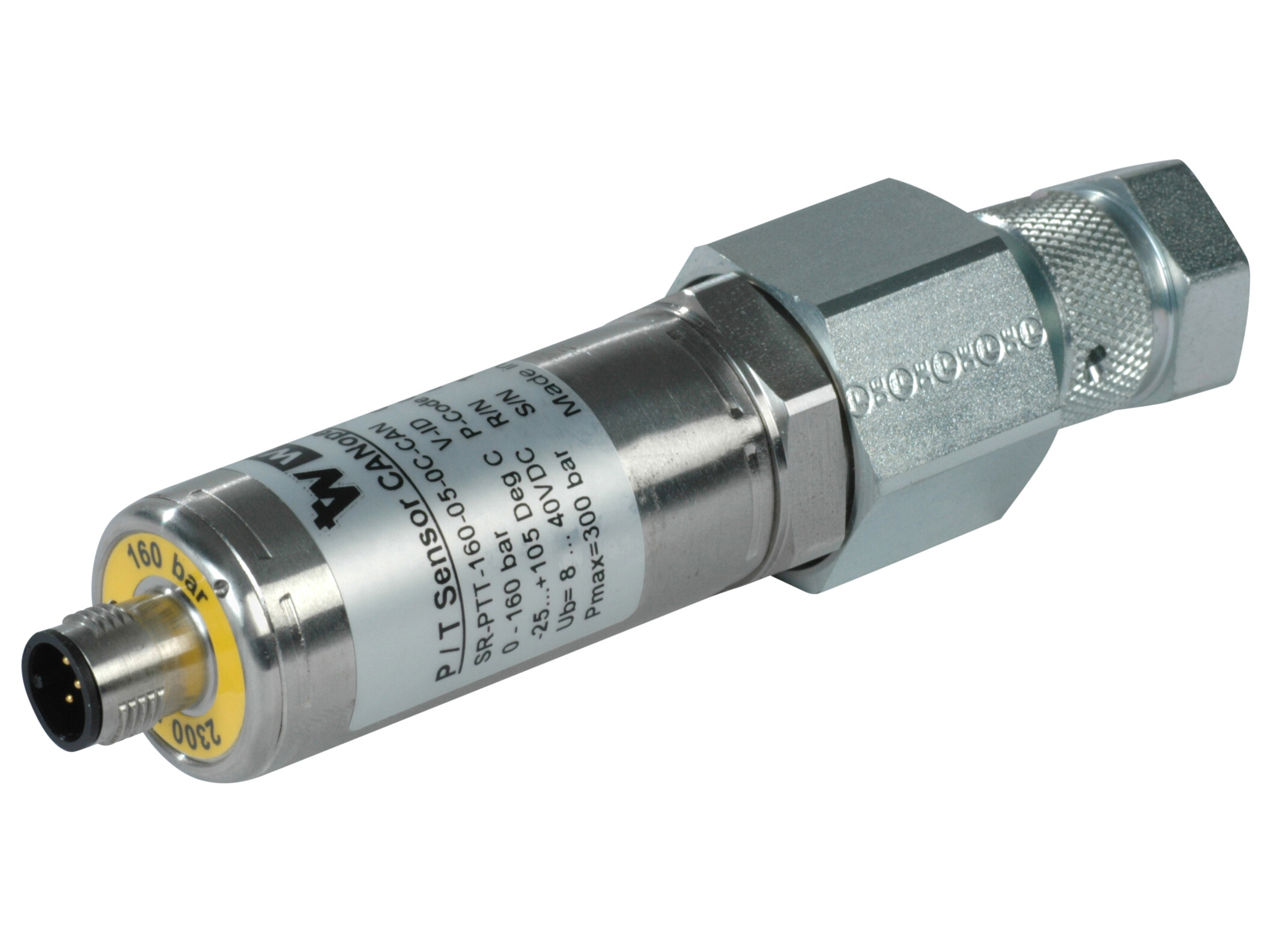

TRYK/TEMP.SENSOR CAN 0-160 bar SR-PTT-160-05-0C-CAN
The PT /2 pressure transmitters can be used with all hydraulic testers of the HPM series, due to their 5-pin connection. The pressure transmitters are a reliable and flexible solution for the HPM series because of their sturdy stainless-steel design, the quick response times (< 1 ms) and the high accuracy (± 0,25% FS* typ.) with automatic sensor recognition. *FS: Full scale.
Partnumber:
FT10422-160
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Webtec
Output signal max.
3 V
Output signal min.
0 V
Pressure Measurement Bar
0 - 160 Bar
Pressure burst min.
480 bar
Pressure max.
320 bar
Sensor type
CAN
Supply voltage max.
40 V
Supply voltage min.
8 V
Temperature ambient max.
+85 °C
Temperature ambient min.
-25 °C
Temperature max.
+105 °C
Temperature min.
-25 °C
Package size
0 pcs
Barcode
5704334287384
Gross weight
0,32 Kg
Net weight
0,32 Kg
Country of origin
Intrastat code
90261021
The PT /2 pressure transmitters can be used with all hydraulic testers of the HPM series, due to their 5-pin connection. The pressure transmitters are a reliable and flexible solution for the HPM series because of their sturdy stainless-steel design, the quick response times (< 1 ms) and the high accuracy (± 0,25% FS* typ.) with automatic sensor recognition. *FS: Full scale.
