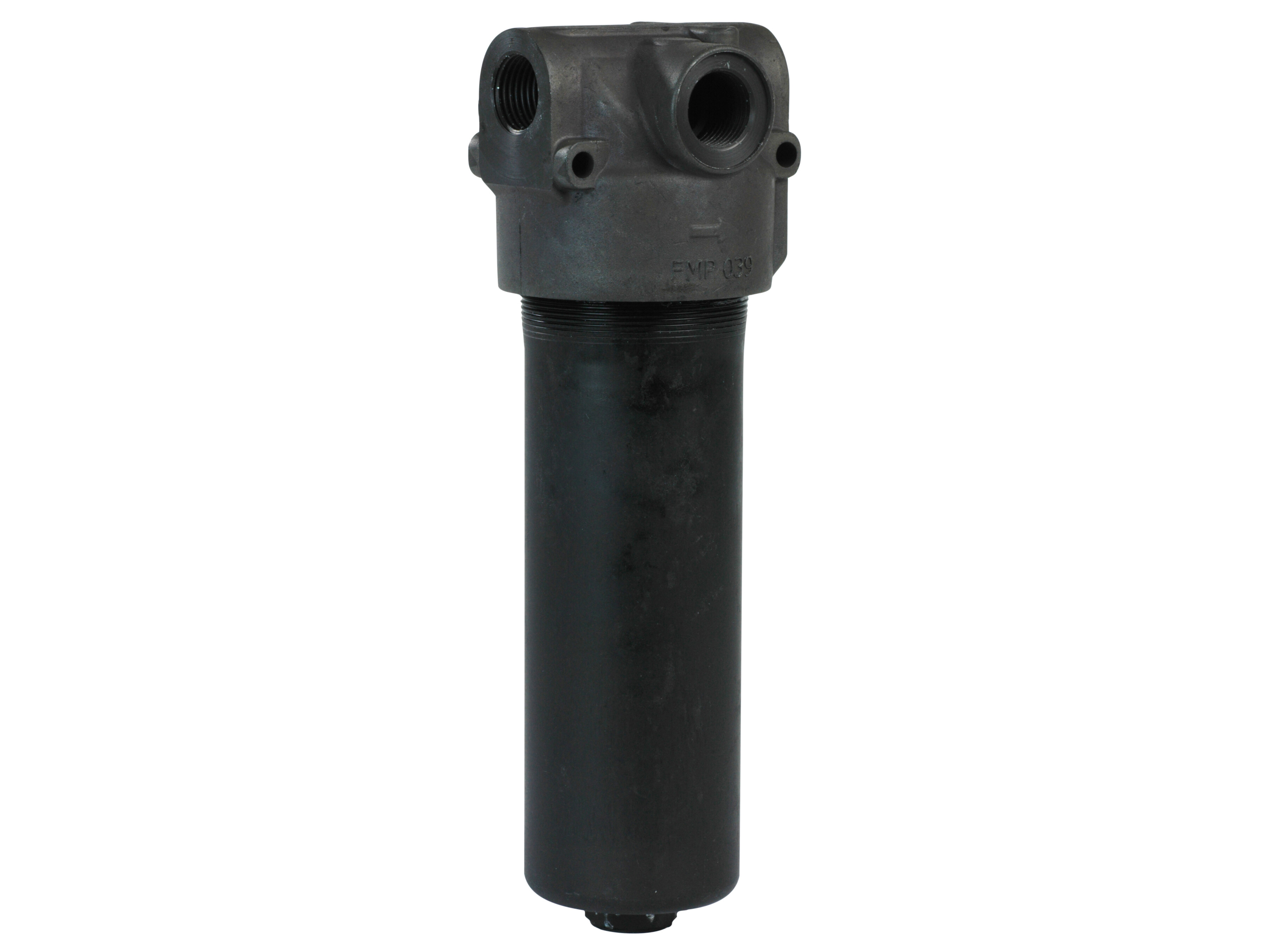

Pressure filter - 10my absolut - 1/2" BSP

Built-in by-pass valve, ensuring flow in case of flow through the filtrationelement is blocked due to contamination.

Partnumber:
FMP0394A10N

Package size:
0 pcs

Min. order quantity is:
1 pcs
Electrical differential pressure indicator - 5 bar
Partnumber: DEA50HA50P01
Electrical/visual differential pressure indicator - 2 bar
Partnumber: DLE20HF50
Electrical/visual differential pressure indicator - 5 bar
Partnumber: DLE50HA50P01
Visuel differential pressure indicator - 2 bar
Partnumber: DVA20HP01
Visuel differential pressure indicator - 5 bar
Partnumber: DVA50HP01
Seal kit FMP038/039
Partnumber: 02050310
High pressure filter element - FHP - 10my absolut
Partnumber: HP0394A10AN
Brand Name
MP Filtri

Dimension A
G 1/2 BSP

Dimension H
238 mm

Filtration
Absolute

Filtration degree
10 my

Flow rate nominal LMin
66 lpm

Model code
FMP0394-B-A-A-6-A10N-P01-T2H

Pressure max.
110 bar

Temperature max.
+110 °C

Temperature min.
-25 °C

Thread
G 1/2 BSP

Thread indicator port
G 1/2 BSP
Package size
0 pcs

Barcode
5704334379140

Gross weight
2,20 Kg

Net weight
2,20 Kg

Country of origin
ITA

Intrastat code
84212980

Built-in by-pass valve, ensuring flow in case of flow through the filtrationelement is blocked due to contamination.
