High pressure filter - 10my nominel - 1" BSP

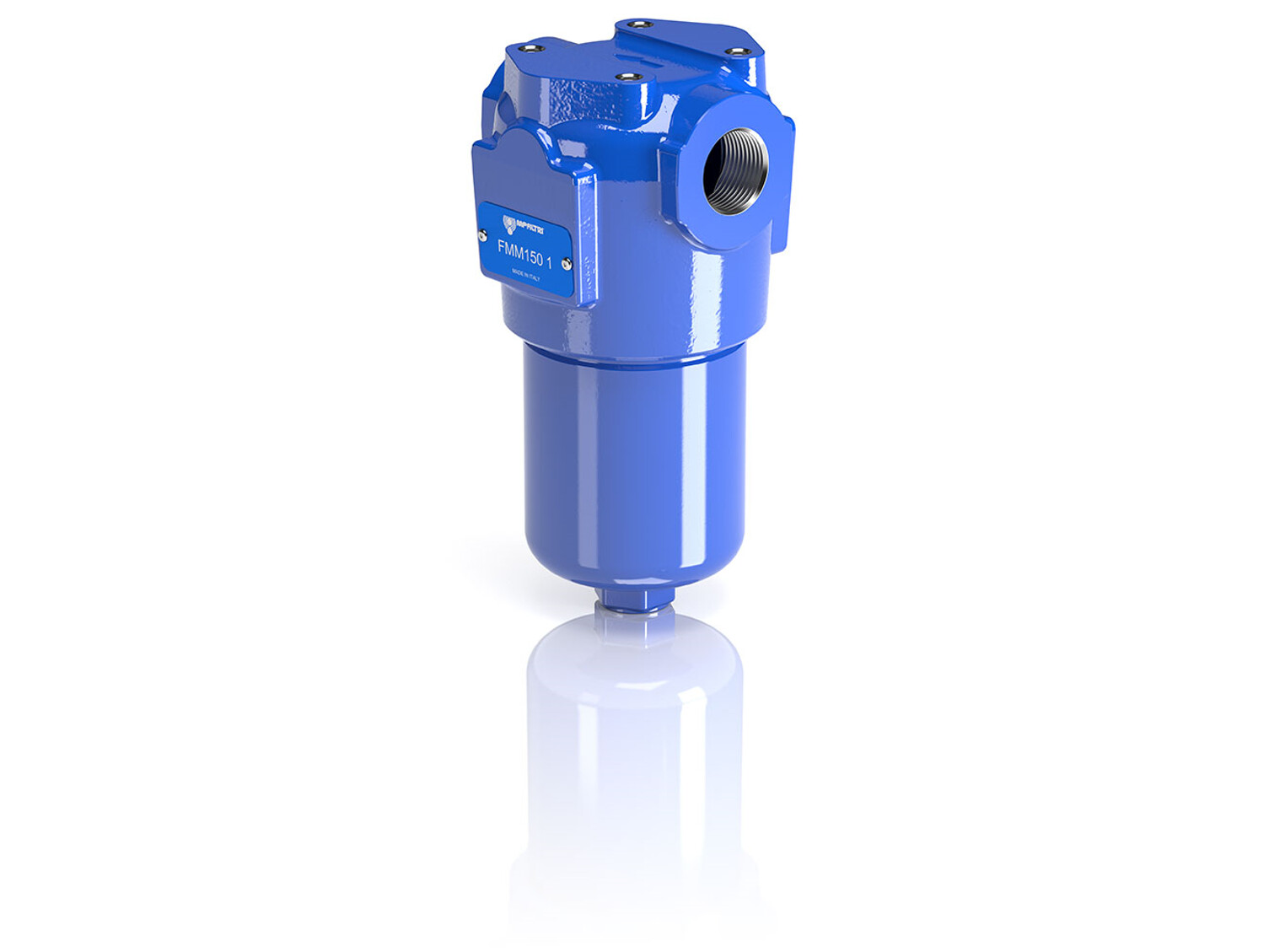

FMM is a range of versatile high-pressure filter for protection of sensitive components in high pressure hydraulic systems in the mobile machines. They are directly connected to the lines of the system through the hydraulic fittings. And should be installed with a clearance under the filter allowing the filter element to be changed.
Available features:
- Female threaded connections up to 1 1/4”, for a maximum flow rate of 250 l/min
- Fine filtration rating, to get a good cleanliness level into the system
- Bypass valve, to relieve excessive pressure drop across the filter media. And ensure flow, even if the filter element is clogged
- Low collapse filter element “N”, for use with filters provided with bypass valve
- Visual, electrical and electronic differential clogging indicators
Common applications:
- Agricultural machines
- Mobile machines
Varenummer:
FMM1501A10N
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Filtreringsgrad
10 my
Flow Nominel
156 lpm
Gevind
G 1 BSP
H
230 mm
Model kode
FMM1501BAC1A10NP01
Mærke navn
MP Filtri
Temperatur maks.
+110 °C
Temperatur min.
-25 °C
Tryk maks.
420 bar
Pakkestr.
0 pcs
Strekkode
5715803520178
Bruttovekt
Kg
Nettovekt
Kg
Opprinnelsesland
ita
Intrastat produktkode
84212980
FMM is a range of versatile high-pressure filter for protection of sensitive components in high pressure hydraulic systems in the mobile machines. They are directly connected to the lines of the system through the hydraulic fittings. And should be installed with a clearance under the filter allowing the filter element to be changed.
Available features:
- Female threaded connections up to 1 1/4”, for a maximum flow rate of 250 l/min
- Fine filtration rating, to get a good cleanliness level into the system
- Bypass valve, to relieve excessive pressure drop across the filter media. And ensure flow, even if the filter element is clogged
- Low collapse filter element “N”, for use with filters provided with bypass valve
- Visual, electrical and electronic differential clogging indicators
Common applications:
- Agricultural machines
- Mobile machines
