Straight fitting ø42L/38S with O-ring

Partnumber:

FISNV42L38S

Package size:

1 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

Stauff

Diameter pipe

42 - 38 mm

Dimension D1

42 mm

Dimension D1

42 mm

Dimension D2

38 mm

Dimension D3

30 mm

Dimension D4

30 mm

Dimension L1

55 mm

Dimension L2

67 mm

Dimension S1

60 mm

Dimension S2

60 mm

Material

Steel

Model code

FI-SNV-42L/38S-V-W3-DKO

Pressure max.

250 bar

Safety factor

Sealing material

FKM/FPM (Viton®)

Series

Series 1

Series 2

Surface treatment

Zinc-Nickel plated

Temperature max.

+200 °C

Temperature min.

-25 °C

Package size

1 pcs

Barcode

5704334885986

Gross weight

Net weight

0,782 Kg

Country of origin

deu

Intrastat code

73071110

Product information

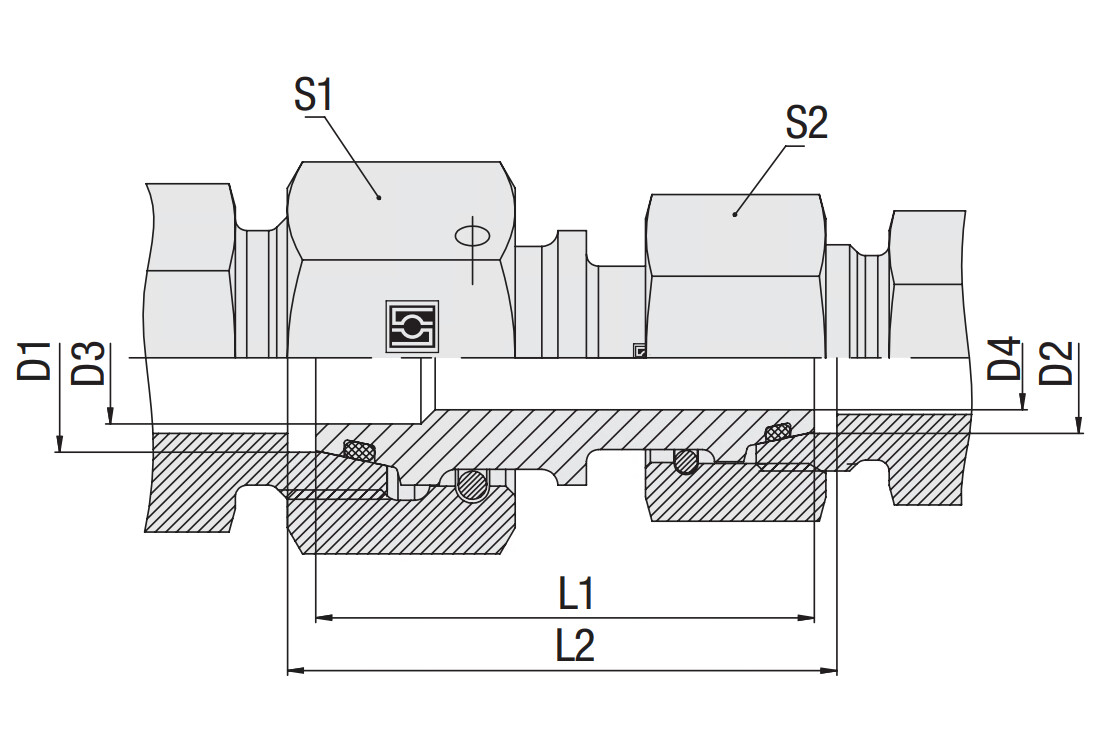

Measure sketch

Straight fitting ø42L/38S with O-ring

Note: Opening 3D files requires a program that supports the file format
