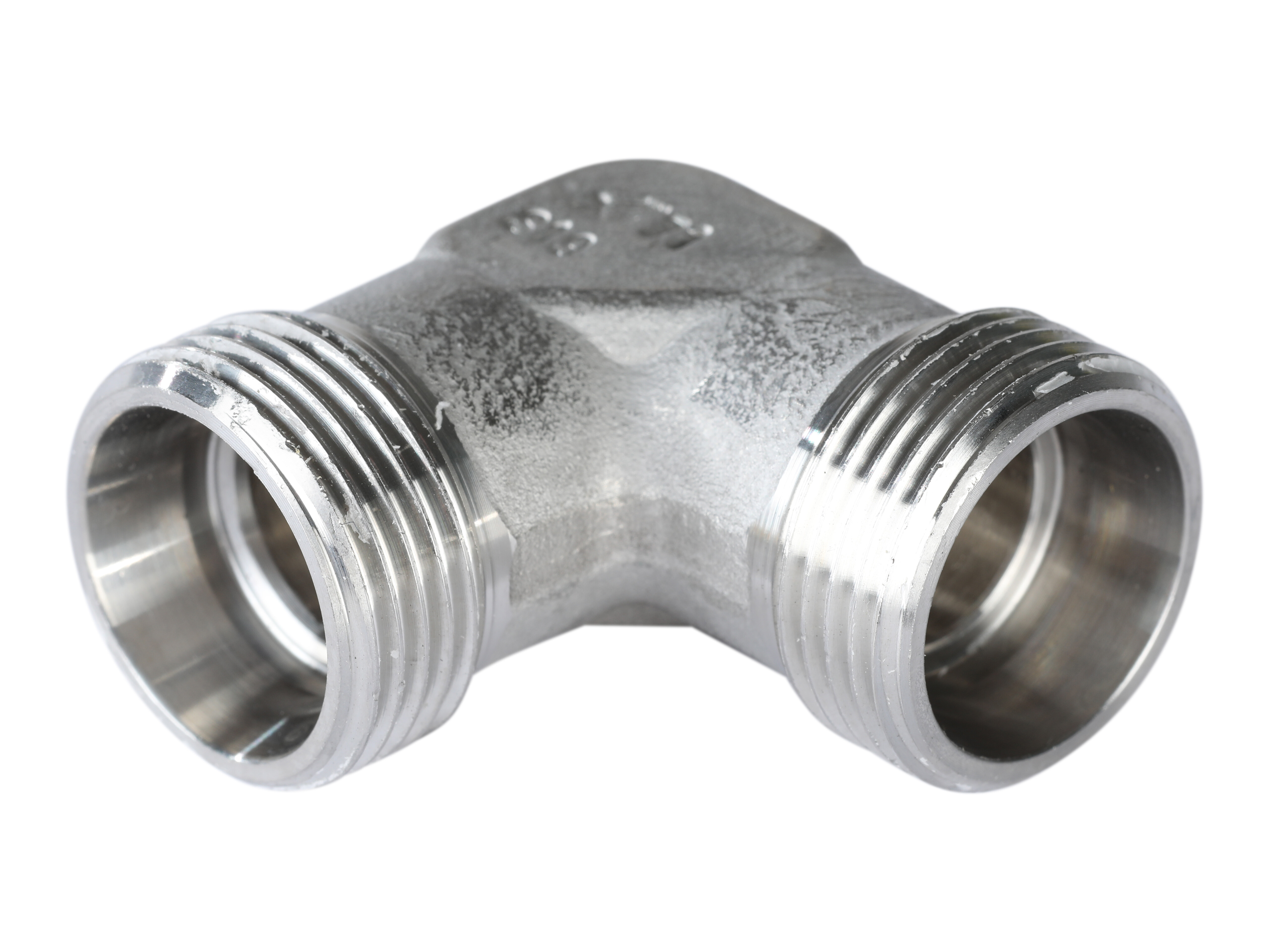

Elbow fitting 90° - ø6LL - AISI316
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
F06LLX/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter rör
6 mm
Gevind T
M10x1
Gänga utv. metrisk
M10x1
L1
21 mm
L2
15 mm
L3
9,5 mm
Materialkvalitet
1.4571 / AISI316Ti
Modell kod
XWV 06 LL
Märke namn
Volz
S1
9 mm
S2
12 mm
Serie
LL
Säkerhetsfaktor
4
Temperatur max.
+400 °C
Temperatur min.
-60 °C
Tillverkningsmaterial
Stainless steel
Tryck max.
100 bar
Typ
Forged
Vinkel
90 °
d1
6 mm
d2
4,5 mm
Package size
0 pcs
Barcode
5704334278719
Gross weight
0,01 Kg
Net weight
0,01 Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Note: Opening 3D files requires a program that supports the file format
