SEKV.V S-H 10-3S NC 10-420 BAR

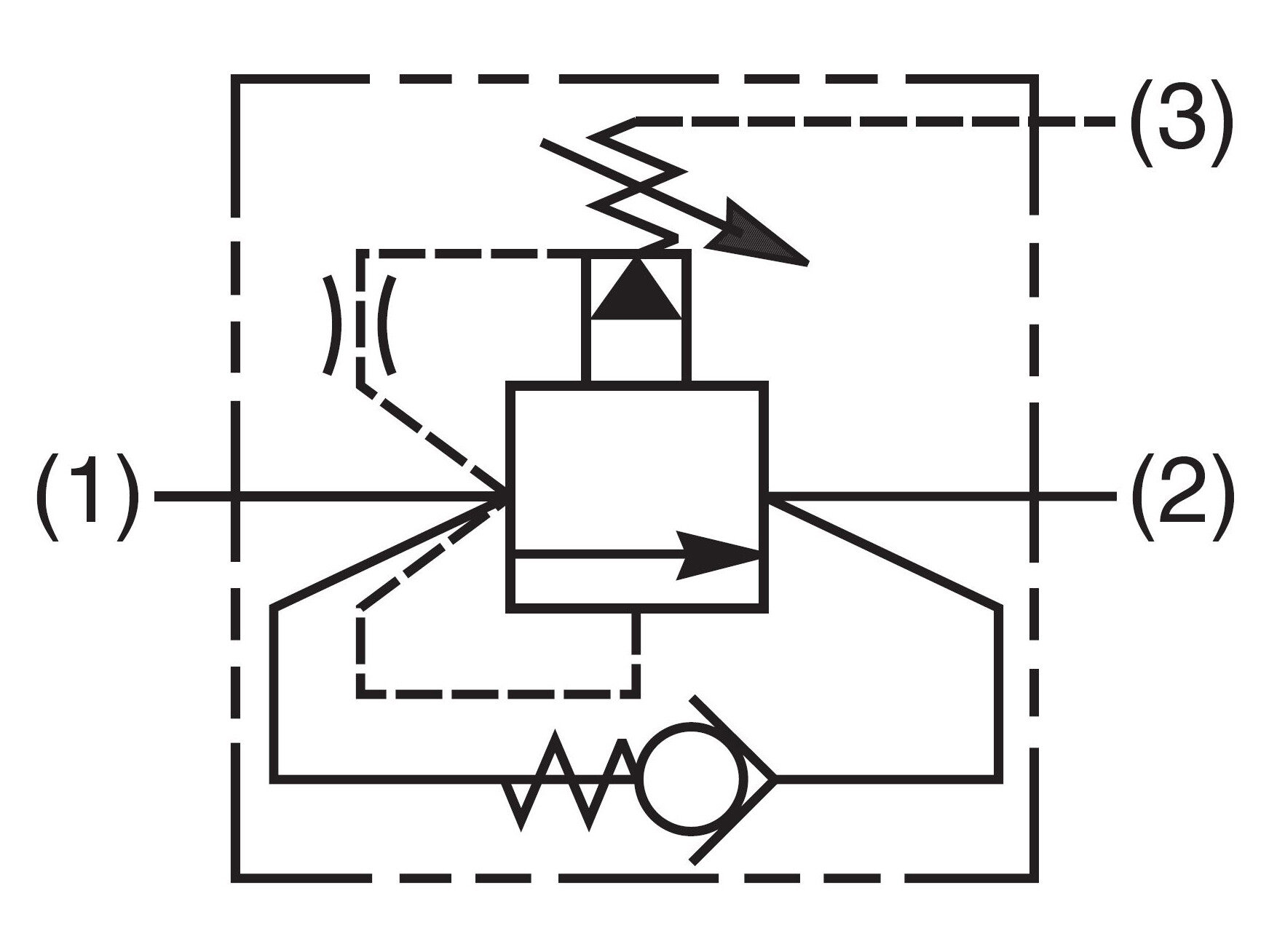

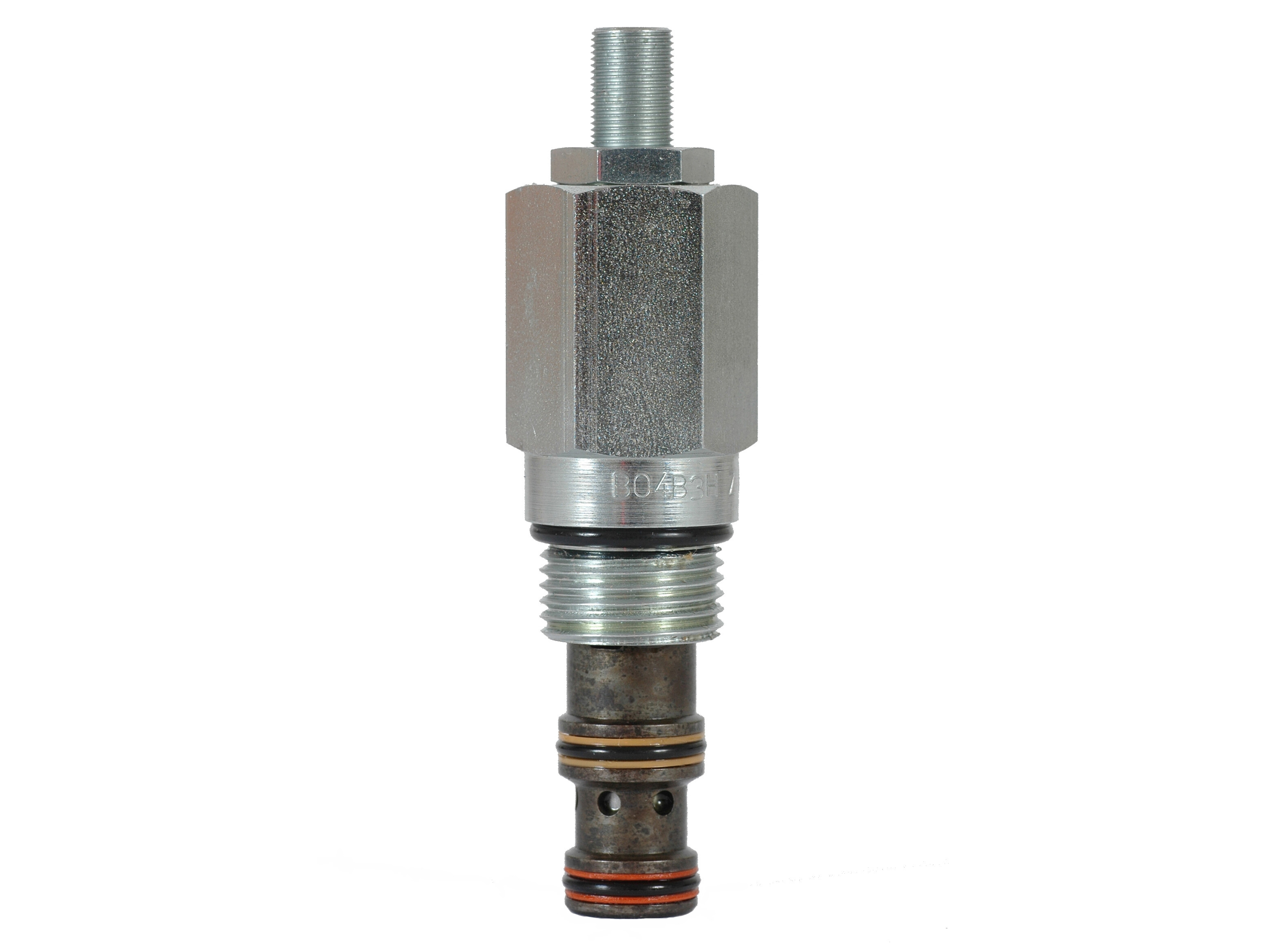

Pilot Operated Sequence Valve with Reverse Flow Check.
Features
- High flow capacity
- For use on clamp and drill circuits where pressure is to be maintained regardless of drop in system pressure
- Integral 250 micron pilot flow filter
- Hardened working parts for maximum durability
- All external parts zinc plated
Application
Note: Drain line should be piped directly back to tank. Any back pressure in the drain line will be additive to the sequence pressure.
Partnumber:
B04D3PZN
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Hydraspecma
Cavity
CAV04-S3
Contamination level max.
18/16/13 - ISO 4406
Flow rate nominal LMin
70 lpm
Oil viscocity recommended
15 - 50 cSt
Pressure max.
420 bar
Pressure setting max.
420 bar
Pressure setting min.
10 bar
Sealing material
NBR
Torque tightening
50 Nm
Package size
0 pcs
Barcode
5704295371719
Gross weight
0,25 Kg
Net weight
0,25 Kg
Country of origin
gbr
Intrastat code
84812010
Pilot Operated Sequence Valve with Reverse Flow Check.
Features
- High flow capacity
- For use on clamp and drill circuits where pressure is to be maintained regardless of drop in system pressure
- Integral 250 micron pilot flow filter
- Hardened working parts for maximum durability
- All external parts zinc plated
Application
Note: Drain line should be piped directly back to tank. Any back pressure in the drain line will be additive to the sequence pressure.
