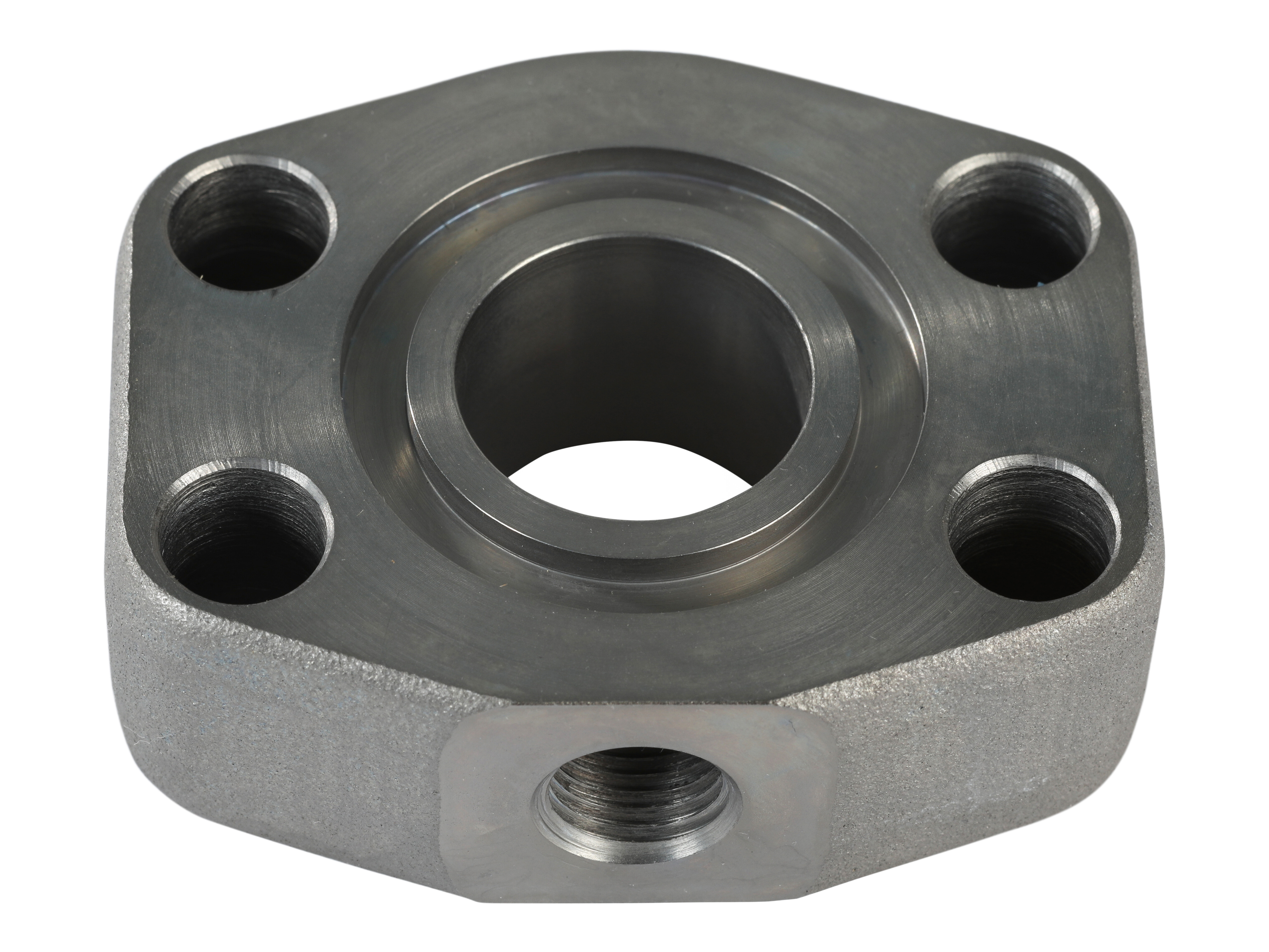

Adapter flange w. test point 1" SAE3000
Adapter flange w. test point 1" SAE3000
Varenummer:
AGL102
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Dimension C
52.4 mm
Dimension E
26.2 mm
Flange
1 "
Flange SAE/DIN
3000 PSI
Material
Steel
Material thickness
24 mm
Number of bolts
4
O-ring
32.93X3.53 mm
Pressure max.
320 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 1/4 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704295877396
Bruttovikt
0,60 Kg
Nettovikt
0,60 Kg
Ursprungsland
DEU
Intrastat artikelkod
73079100
Adapter flange w. test point 1" SAE3000
