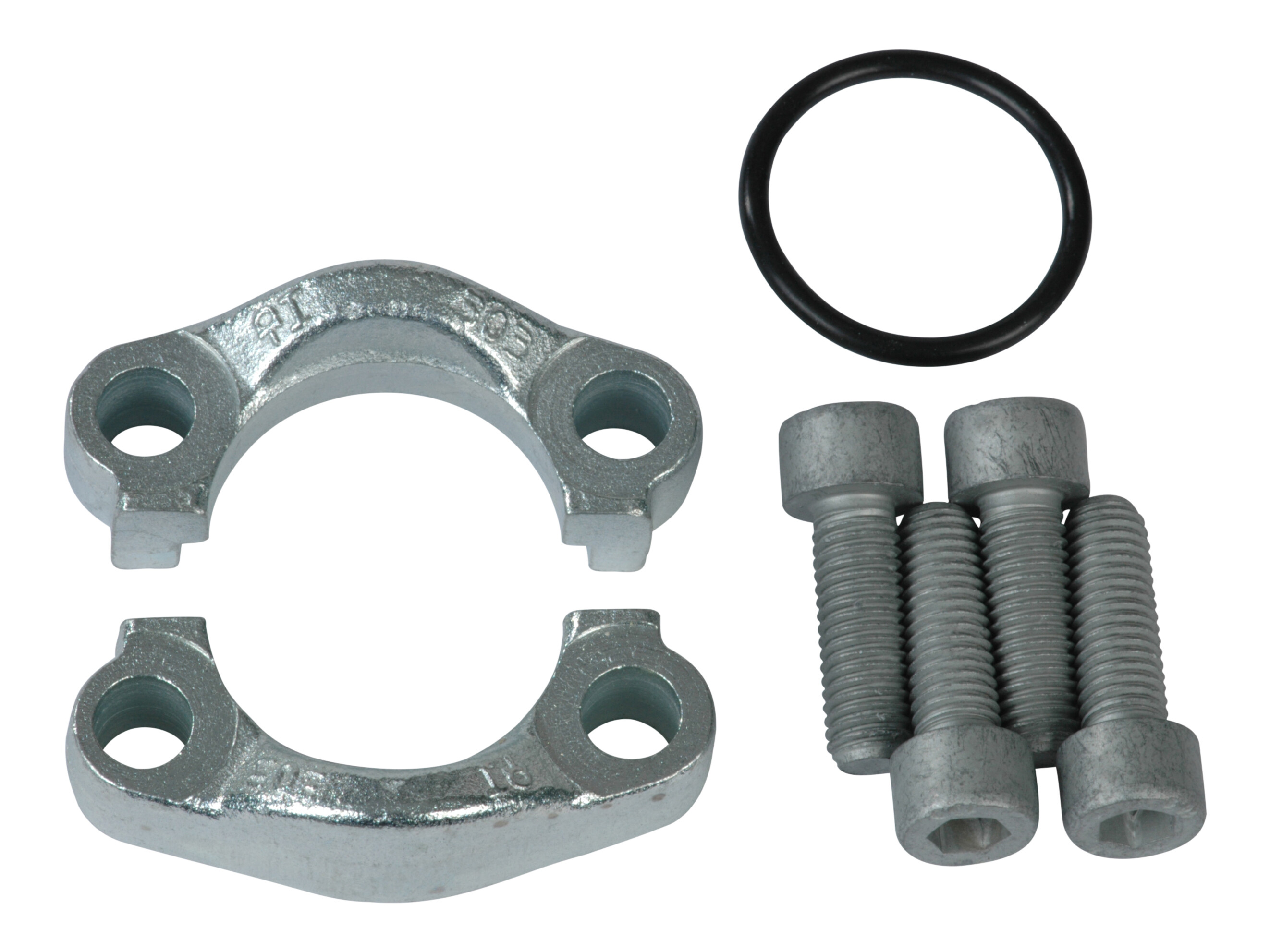

Split flange 3/4" SAE3000 - complete w. M10
Split flange 3/4" SAE3000 - complete w. M10
Varenummer:
AFS302M
Pakke str.:
0 Set
Min. bestillingsenhed er:
1 Set
Bolt dimension
M10x30 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
38.1 mm
Dimension C
47.6 mm
Dimension E
22.3 mm
Flange
3/4 "
Flange SAE/DIN
3000 PSI
Material
Steel
Number of bolts
4
O-ring
24.99X3.53 mm
Pressure max.
350 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
0 Set
Barcode
5704295921334
Gross weight
0,30 Kg
Net weight
0,30 Kg
Country of origin
DEU
Intrastat code
73079100
