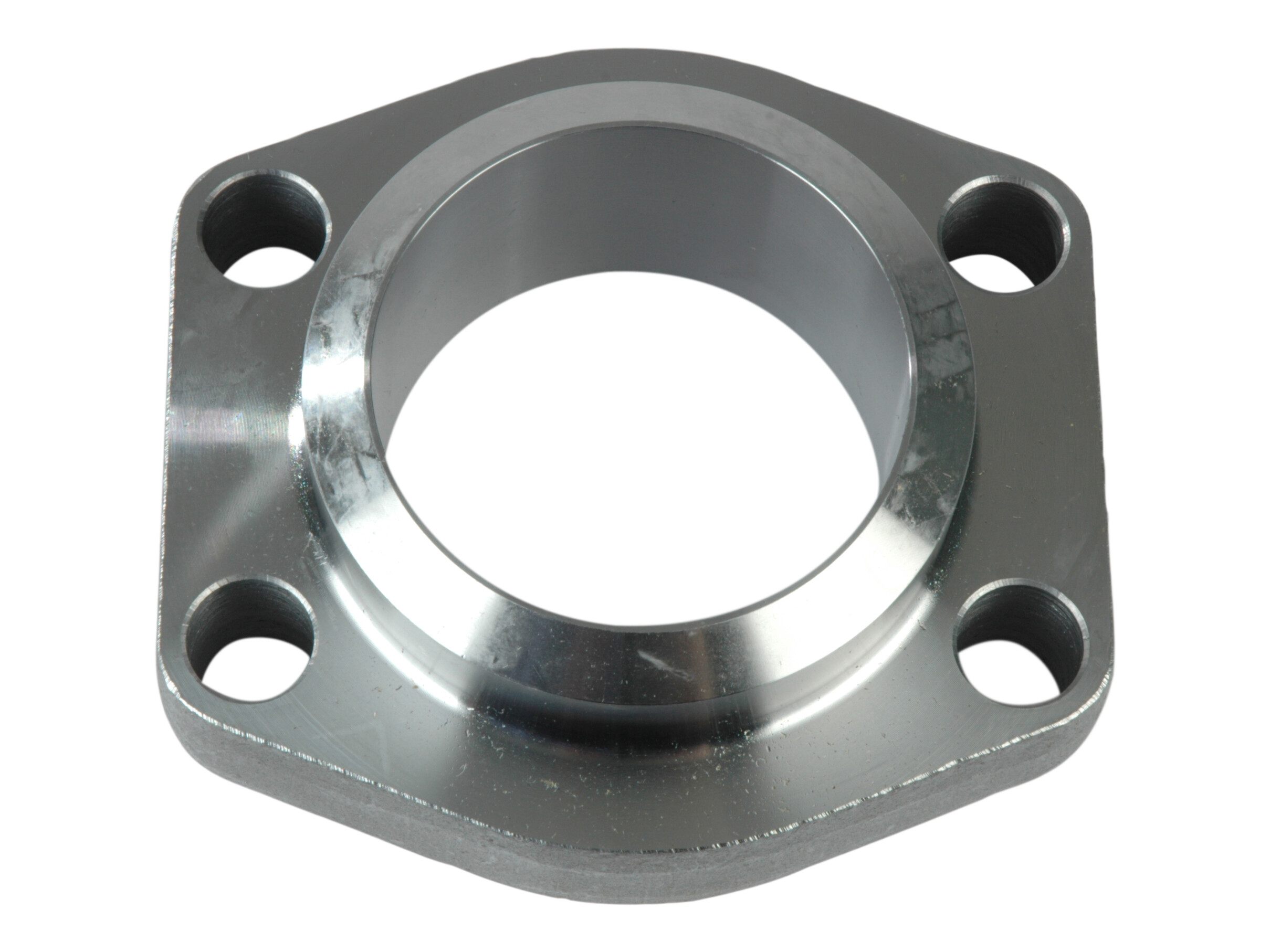

Butt weld flange 3.1/2" SAE3000
Butt weld flange 3.1/2" SAE3000
Partnumber:
AFS114ST
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Bolt dimension
M16x50 mm
Brand Name
Havit
Diameter flange
114.3 mm
Dimension C
120.7 mm
Dimension E
69.9 mm
Flange
3.1/2 "
Flange SAE/DIN
3000 PSI
Material
Steel
Number of bolts
4
O-ring
98.02X3.53 mm
Pressure max.
35 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
0 pcs
Barcode
5704295320731
Gross weight
2,40 Kg
Net weight
2,40 Kg
Country of origin
DEU
Intrastat code
73079100
Butt weld flange 3.1/2" SAE3000
