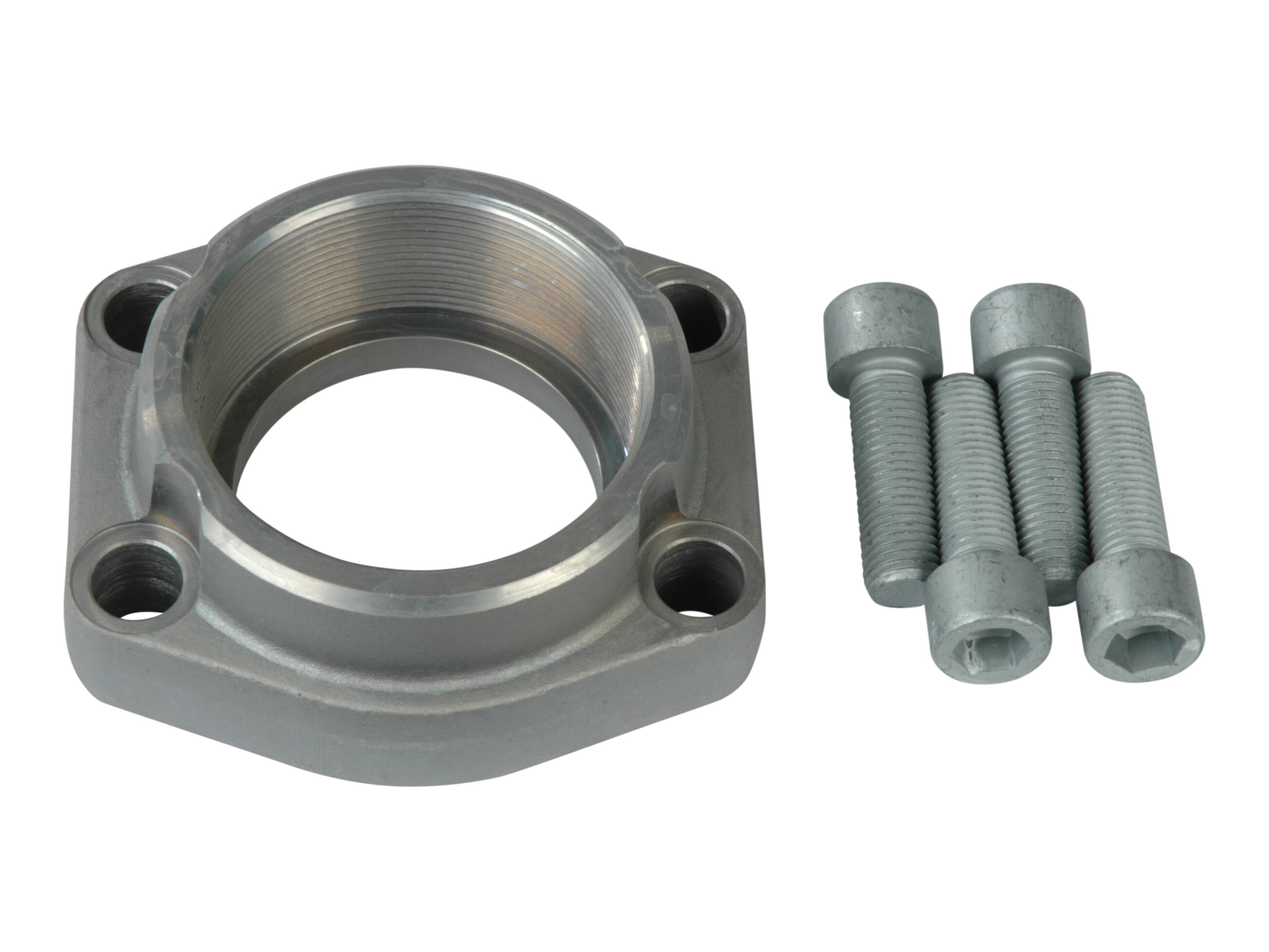

Threaded flange 3" SAE3000 x 3" BSP - complete
Threaded flange 3" SAE3000 x 3" BSP - complete
Partnumber:
AFS112GM
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Bolt dimension
M16x50 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
101.6 mm
Dimension C
106.4 mm
Dimension E
61.9 mm
Flange
3 "
Flange SAE/DIN
3000 PSI
Material
Steel
Number of bolts
4
O-ring
85.32X3.53 mm
Pressure max.
160 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 3 BSP
Pakke str.
0 pcs
Stregkode
5704295921273
Brutto vægt
2,28 Kg
Netto vægt
2,28 Kg
Oprindelsesland
DEU
Intrastat varekode
73079100
Threaded flange 3" SAE3000 x 3" BSP - complete
