TRYCKB.V S-H 16-2 10-420

Pilot Operated, Spool Type, Relief Valve.

  • Very high flow capacity.
  • Minimal pressure variation with flow change.
  • Full line back pressure capability, ideal for crossline relief applications.
  • Integral 250 micron pilot flow filter.
  • Hardened working parts for maximum durability.

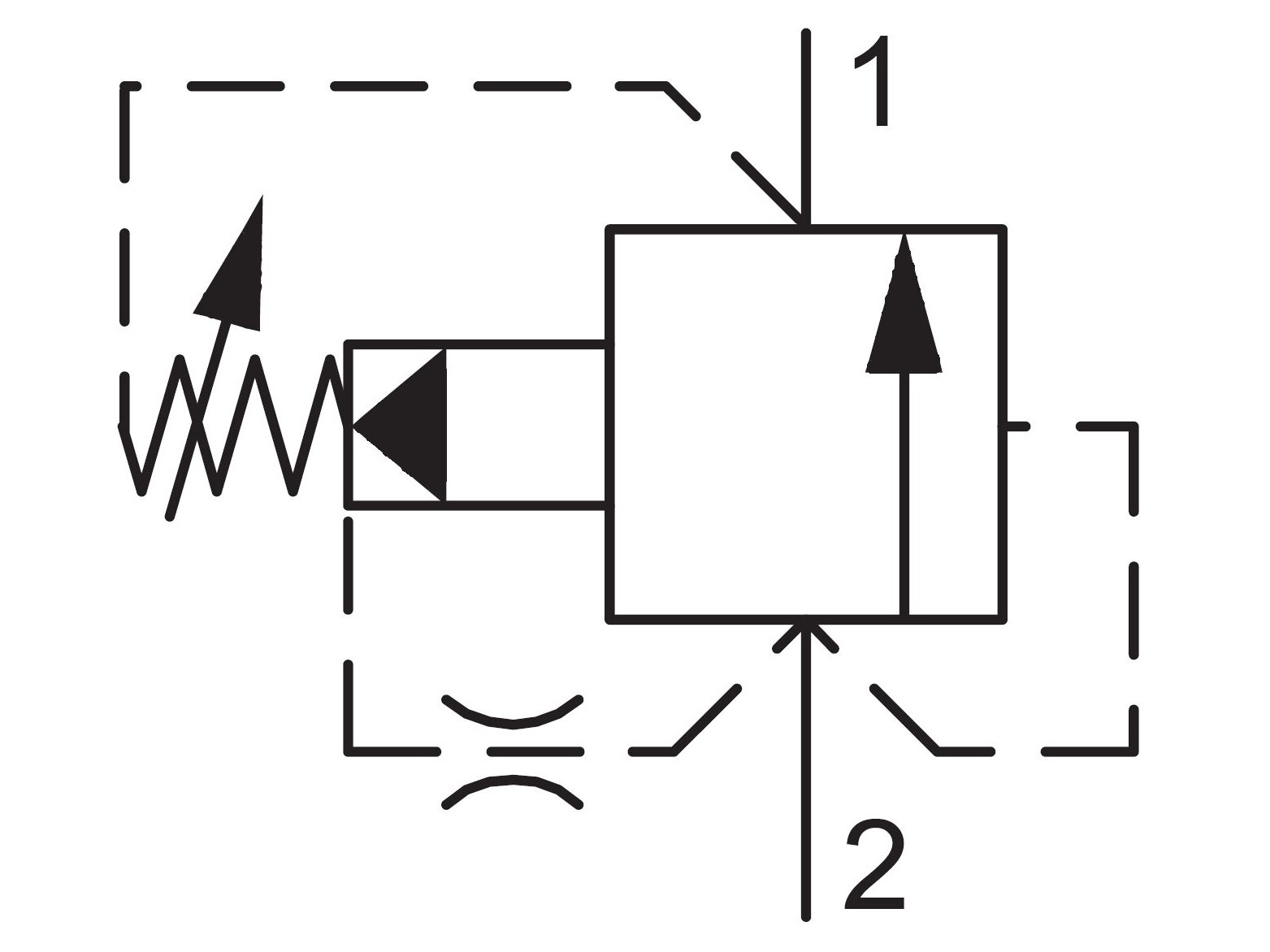

Operation

The adjustable spring-loaded ball in the pilot section is shifted at valve setting by pressure sensed through an orifice in the main spool from port [2]. The resulting pilot flow creates a pressure drop across the spring-loaded main spool that then opens allowing relief flow to port [1].

Reverse flow [1] to [2], is blocked. Back pressure on port [1] adds to the valve setting.

Partnumber:
A06G2PZN

Package size:
0 pcs

Min. order quantity is:
1 pcs
Valve Block alu. 1 (CAV06-2)
Partnumber: 575A
Valve Block steel 1 (CAV06-2)
Partnumber: 575S
Lock cap Sterling
Partnumber: TC1130
RATT S-H M10 YD=38mm
Partnumber: W3
Brand Name
Hydraspecma

Cavity
CAV06-2

Contamination level max.
18/16/13 - ISO 4406

Flow rate nominal LMin
400 lpm

Oil viscocity recommended
15 - 50 cSt

Pressure T max.
420 bar

Pressure max.
420 bar

Pressure setting max.
420 bar

Pressure setting min.
10 bar

Sealing material
NBR

Torque tightening
100 Nm
Package size
0 pcs

Barcode
5704295930381

Gross weight
0,58 Kg

Net weight
0,58 Kg

Country of origin
gbr

Intrastat code
84812010

Pilot Operated, Spool Type, Relief Valve.

  • Very high flow capacity.
  • Minimal pressure variation with flow change.
  • Full line back pressure capability, ideal for crossline relief applications.
  • Integral 250 micron pilot flow filter.
  • Hardened working parts for maximum durability.



Operation

The adjustable spring-loaded ball in the pilot section is shifted at valve setting by pressure sensed through an orifice in the main spool from port [2]. The resulting pilot flow creates a pressure drop across the spring-loaded main spool that then opens allowing relief flow to port [1].

Reverse flow [1] to [2], is blocked. Back pressure on port [1] adds to the valve setting.
