3-way flowdivider 1 steel VPR/3/EP/100/V/AC, Oleosta
3-way pressure compensated flowdivider. Valve block in steel. Regulation type "V": Handwheel with counter nut. "EP": Counterpressure allowed on regulated port

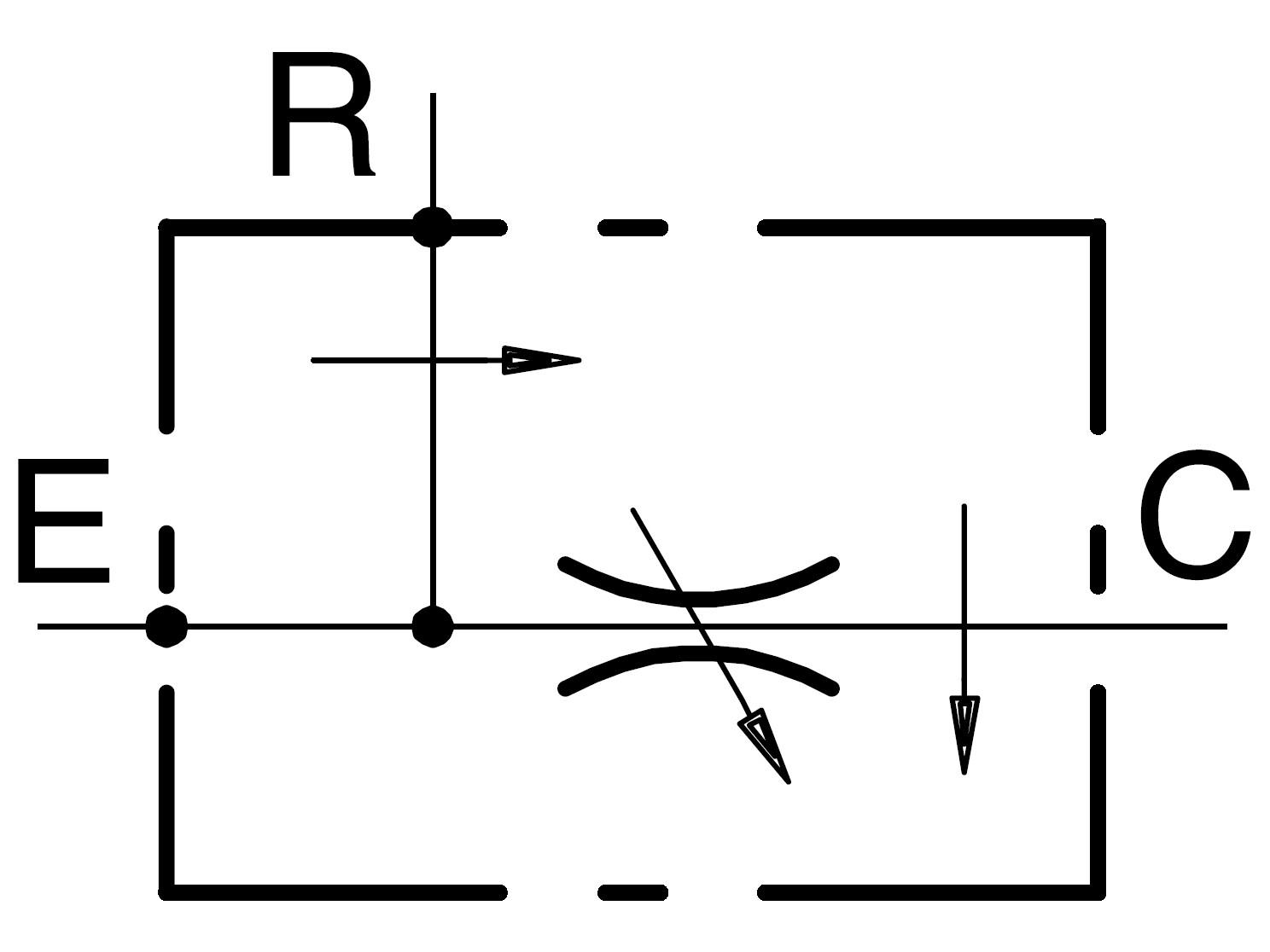

Port names: E: Inlet C: Constant (regulated) flow. R: By-pass flow.
OBS: Make sure that a pressure relief valve is always used between the pump and the valve.
Partnumber:
1630052100
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Walvoil
Contamination level max.
18/16/13 - ISO 4406
Flow max. regulated
150 lpm
Inlet flow max.
240 lpm
Model code
VPR/3/EP/100/V/AC
Number of ways
3
Oil viscocity recommended
10 - 100 cSt
Pressure max.
350 bar
Temperature max.
+90 °C
Temperature min.
-25 °C
Thread
G 1 BSP
Package size
0 pcs
Barcode
5704295992433
Gross weight
9,45 Kg
Net weight
9,45 Kg
Country of origin
ITA
Intrastat code
84812010
3-way pressure compensated flowdivider. Valve block in steel. Regulation type "V": Handwheel with counter nut. "EP": Counterpressure allowed on regulated port
Port names: E: Inlet C: Constant (regulated) flow. R: By-pass flow.
OBS: Make sure that a pressure relief valve is always used between the pump and the valve.
