Weo adaptor 3/4 BSP
WEO adapter with BSP thread.
Partnumber:
14.810.1212
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Cejn

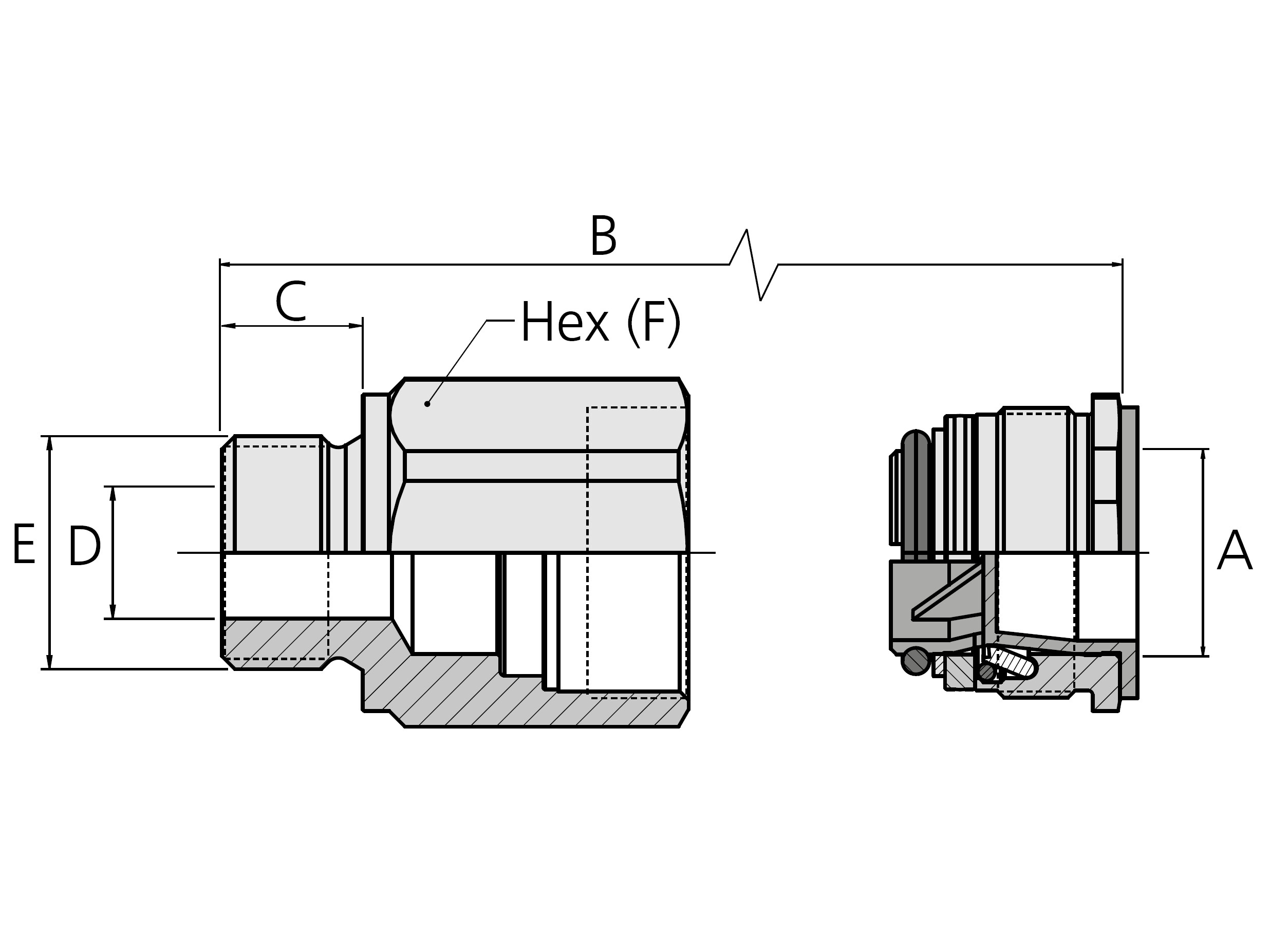

Dimension A
23 mm
Dimension B
56 mm
Dimension C
16 mm
Dimension D
9.5 mm
Dimension F
36 mm
Material
Steel
Pressure max.
350 bar
Safety factor
4
Sealing material
NBR
Surface treatment
Electro zinc plated
Temperature intermittent max.
+120 °C
Temperature max.
+100 °C
Temperature min.
-30 °C
Thread
G 3/4 BSP
WEO plug-in
3/4 "
Package size
0 pcs
Barcode
5704295474113
Gross weight
0,25 Kg
Net weight
0,25 Kg
Country of origin
Intrastat code
73269098
WEO adapter with BSP thread.
