Adaptor 1 BSP x 1.7/16" ORFS
\ufeff
-

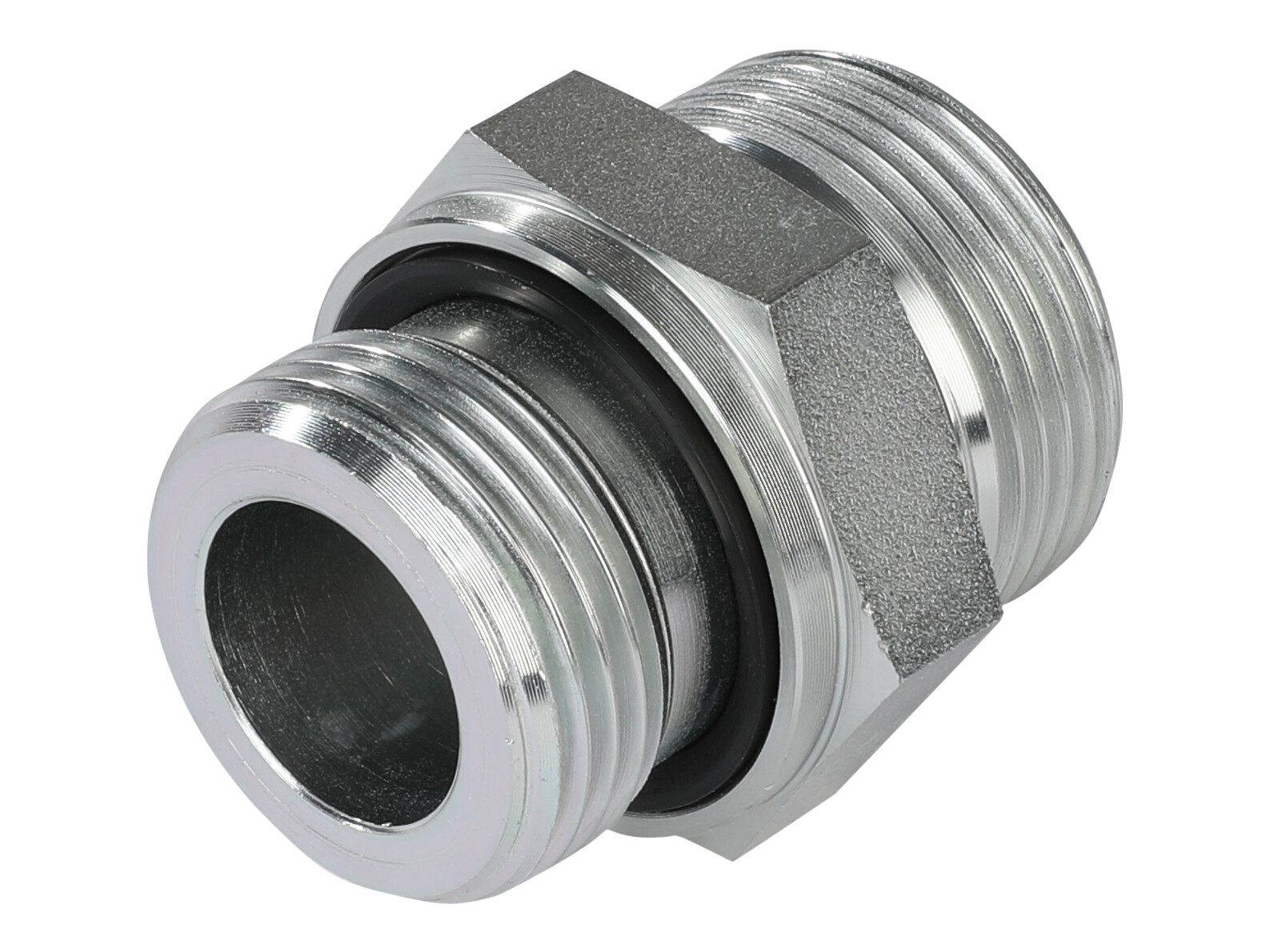

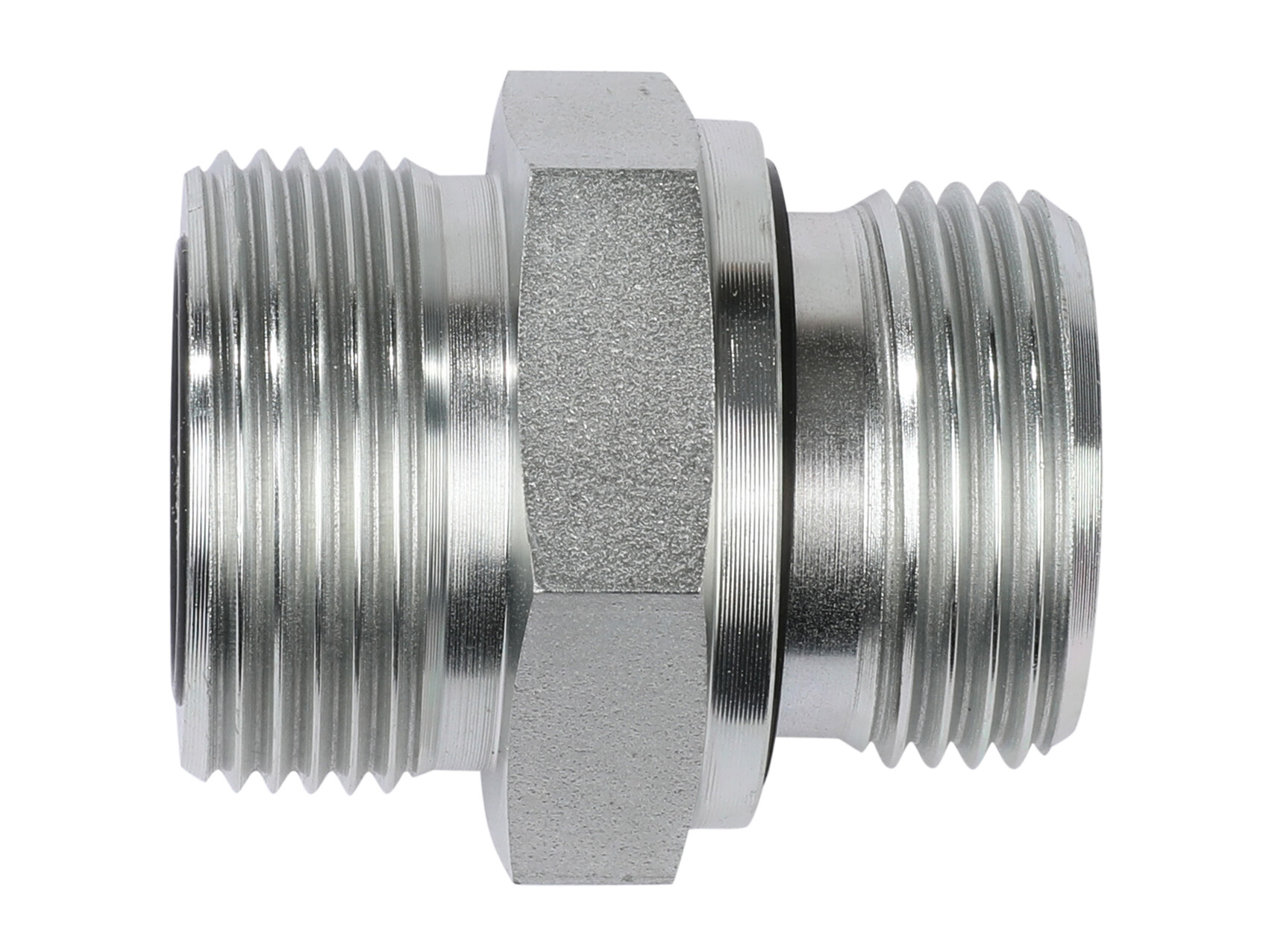

ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Partnumber:
103FB1616
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
50 mm
B
17,5 mm
CH
41 mm
D
18 mm
F
1.7/16-12 ORFS
F1
G 1 BSP
Gevind udvendig
1.7/16-12 ORFS
Gevind udvendig
G 1 BSP
Korrosions resistens
1400 hours salt spray DIN EN ISO 9227
Materiale
Steel
Model kode
A502146/2533
Mærke navn
FOR
Overfladebehandling
Electro zinc plated
Pakningsmateriale
NBR
Standard ISO
ISO 1179
T
22-25 mm
Temperatur maks.
+100 °C
Temperatur min.
-35 °C
Tryk maks.
250 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704334584315
Gross weight
0,26 Kg
Net weight
0,26 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Note: Opening 3D files requires a program that supports the file format
