PLM20.6.3R0-82E2-LEA/EA-N-EL-DH Polaris motor, Casappa

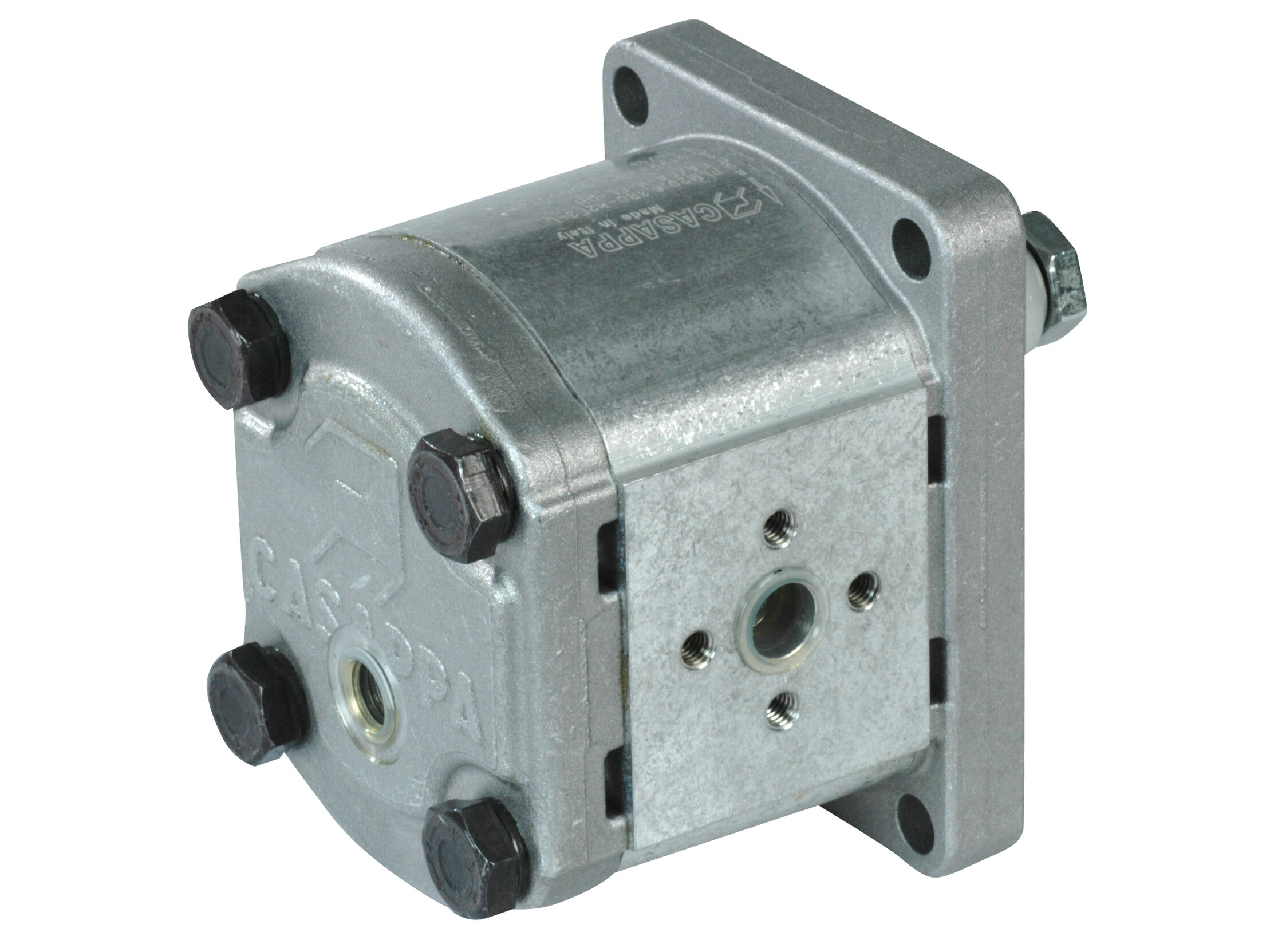

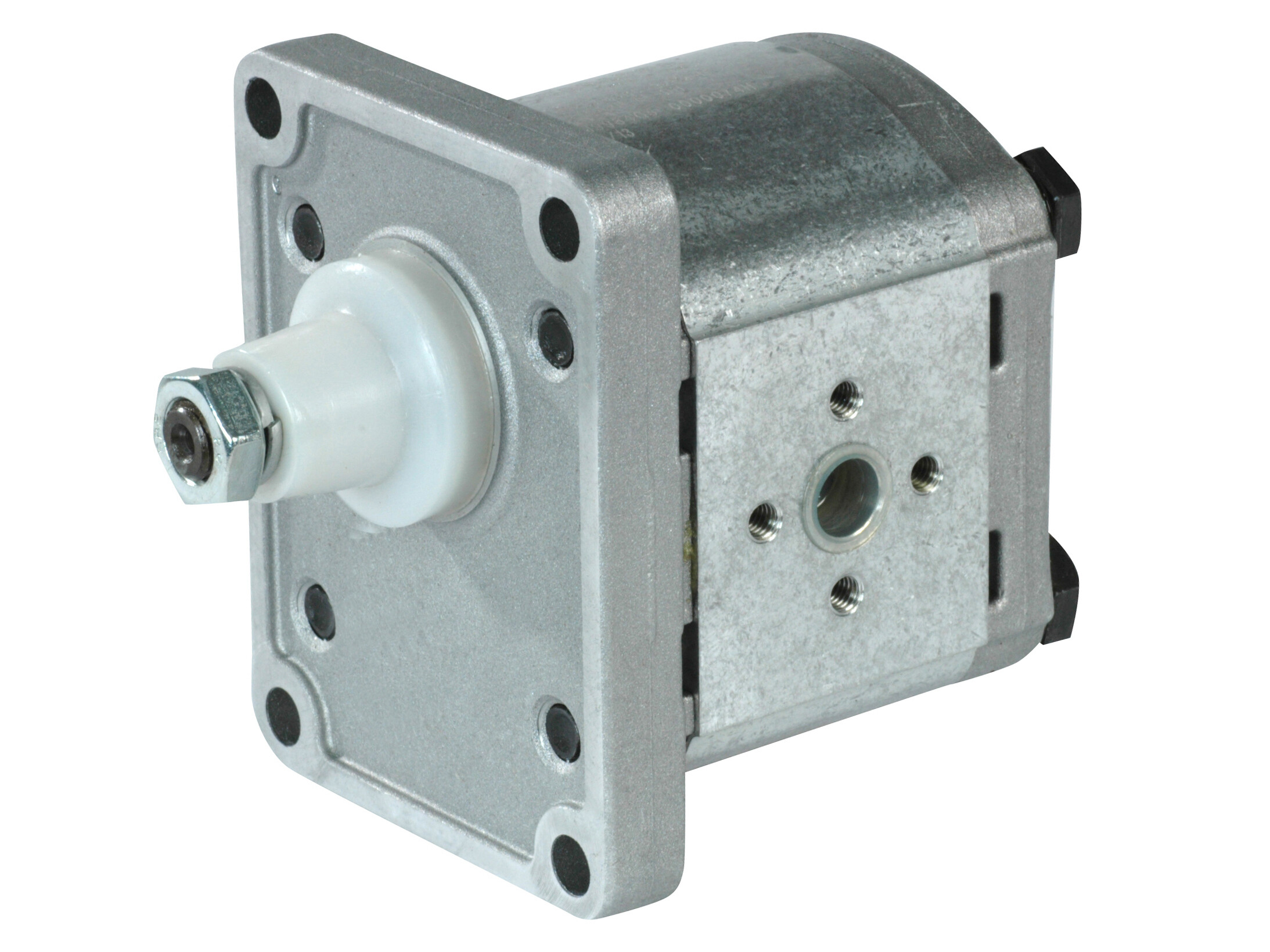

Casappa Polaris, series 2 gear motor..
Housing: Aluminium..
Gear wheels with slide bearings and two aluminium end plates..
Front- and rear cover: Aluminium.
Connection flanges must be ordered separately.
Varenummer:
019984G5
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Casappa
Contamination level max.
19/17/14 - ISO 4406
Displacement
6.61 cm3
Inlet
G 1/2 BSP
Model code
PLM20.6,3R0-82E2-LEA/EA-N-EL-DH
Mounting flange
EU37 - 96x72
Number of mounting holes
4
Oil viscocity recommended
12 - 100 cSt
Port inlet
EU30
Port outlet
EU30
Pressure continous max.
250 bar
Pressure intermittent max.
280 bar
Rotation direction
Reversible (CW/CCW)
Rotational speed max.
4000 rpm
Rotational speed min.
600 rpm
Shaft cone
1:8
Shaft keyway
3,2 mm
Shaft type
Tapered
Package size
0 pcs
Barcode
5704334402527
Gross weight
2,28 Kg
Net weight
2,28 Kg
Country of origin
ITA
Intrastat code
84122981
Casappa Polaris, series 2 gear motor..
Housing: Aluminium..
Gear wheels with slide bearings and two aluminium end plates..
Front- and rear cover: Aluminium.
Connection flanges must be ordered separately.
