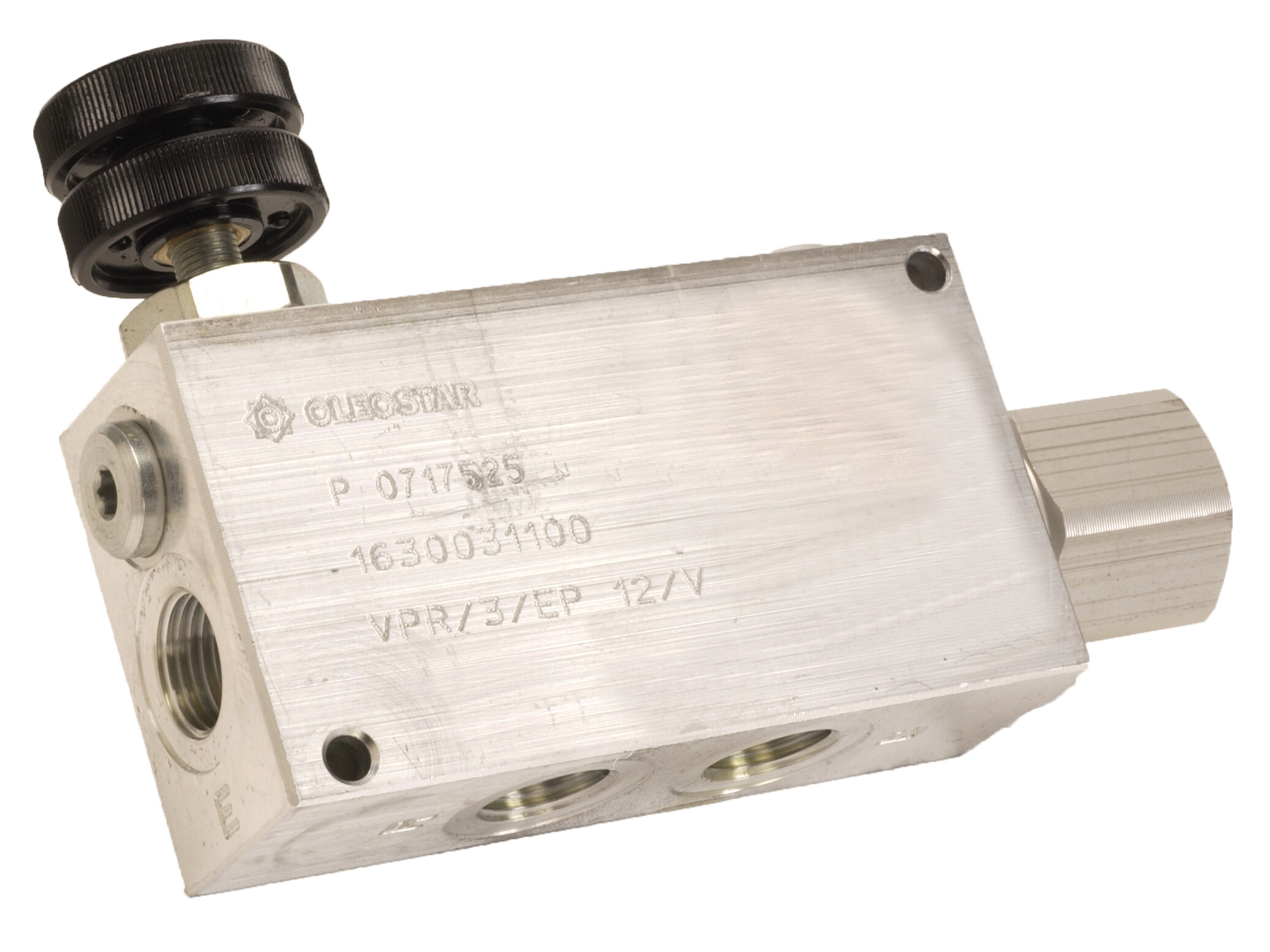

3-way flowdivider 1/2
3-way pressure compensated flowdivider. Valve block in aluminium. Regulation type "V": Handwheel with counter nut. "EP": Counterpressure allowed on regulated port
Port names: E: Inlet C: Constant (regulated) flow. R: By-pass flow.
OBS: Make sure that a pressure relief valve is always used between the pump and the valve.
Artikelnummer:
1630031100
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Flöde in max.
90 lpm
Flöde max. reglerat
50 l/min
Föroreningsgrad max.
18/16/13 - ISO 4406
Gänga
G 1/2 BSP
Modell kod
VPR/3/EP/12/V
Märke namn
Walvoil
Oljeviskositet rekommanderad
10 - 100 cSt
Temperatur max.
+90 °C
Temperatur min.
-25 °C
Tryck max.
210 bar
antal vägar
3
Pakke str.
0 pcs
Stregkode
5704295823119
Brutto vægt
1,22 Kg
Netto vægt
1,22 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
3-way pressure compensated flowdivider. Valve block in aluminium. Regulation type "V": Handwheel with counter nut. "EP": Counterpressure allowed on regulated port
Port names: E: Inlet C: Constant (regulated) flow. R: By-pass flow.
OBS: Make sure that a pressure relief valve is always used between the pump and the valve.
