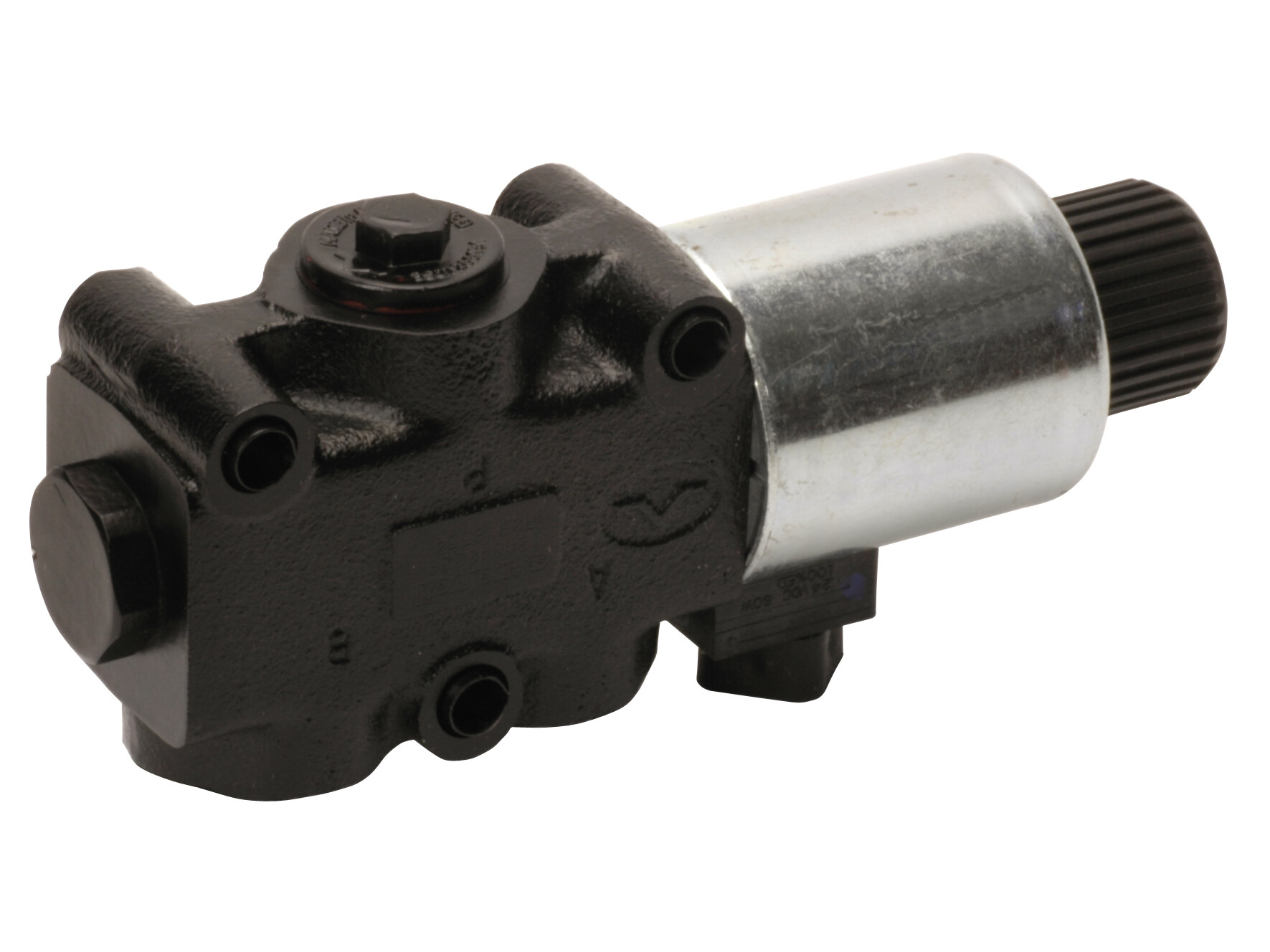

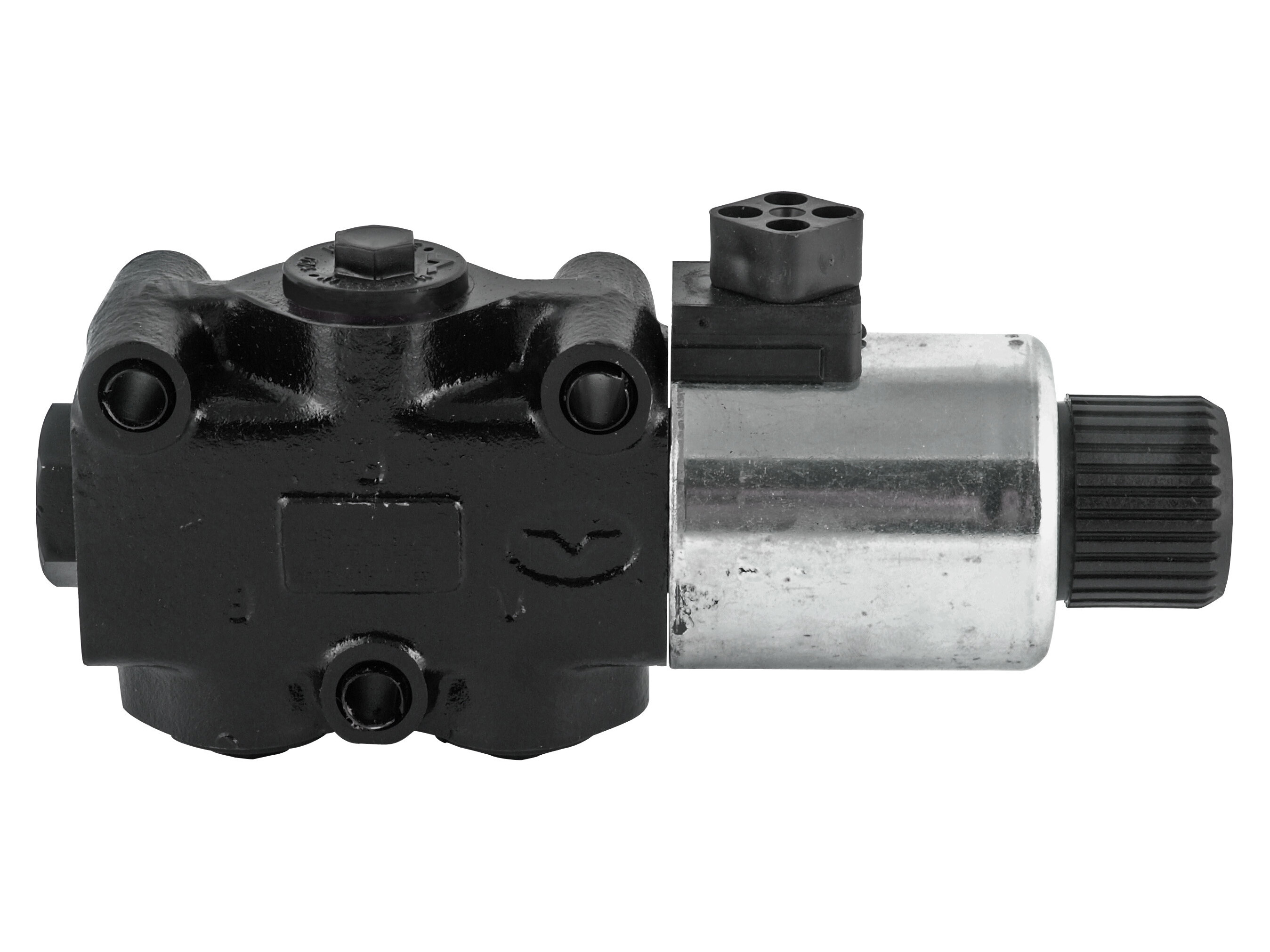

DFE20/3A18ES-W-201-24Vdc Walvoil 3/2 vejs ventil 3/4"
El-betjent Walvoil omskifterventiler af glidertype.
Ved ombygning af ventil til eksternt dræn, skal anvendes monteringssæt 5GIU*** (skal bestilles separat).
Partnumber:
12A640026
Package size:
0 stk
Min. order quantity is:
1 stk
Activation
Magnetspole
Brand Name
Walvoil
Contamination level max.
20/18/15 - ISO 4406
Current type
DC
Drainport
G 1/4 BSP
Flow rate nominal LMin
140 lpm
Model
DFE20
Model code
DFE20/3A18ES-W-201-24VDC
Number of ways/positions
3/2
Oil viscocity recommended
12 - 400 cSt
Plug type
DIN 43650 Form A
Pressure with drain max.
315 bar
Pressure without drain max.
200 bar
Protection class
IP 65
Temperature ambient max.
+50 °C
Temperature max.
+80 °C
Temperature min.
-20 °C
Temperature working fluid max.
+80 °C
Thread
G 3/4 BSP
Voltage
24 V
Package size
0 stk
Barcode
5704295924342
Gross weight
4,21 Kg
Net weight
4,21 Kg
Country of origin
ITA
Intrastat code
84812010
El-betjent Walvoil omskifterventiler af glidertype.
Ved ombygning af ventil til eksternt dræn, skal anvendes monteringssæt 5GIU*** (skal bestilles separat).
