    • Aluminiumbrickor DIN7603A

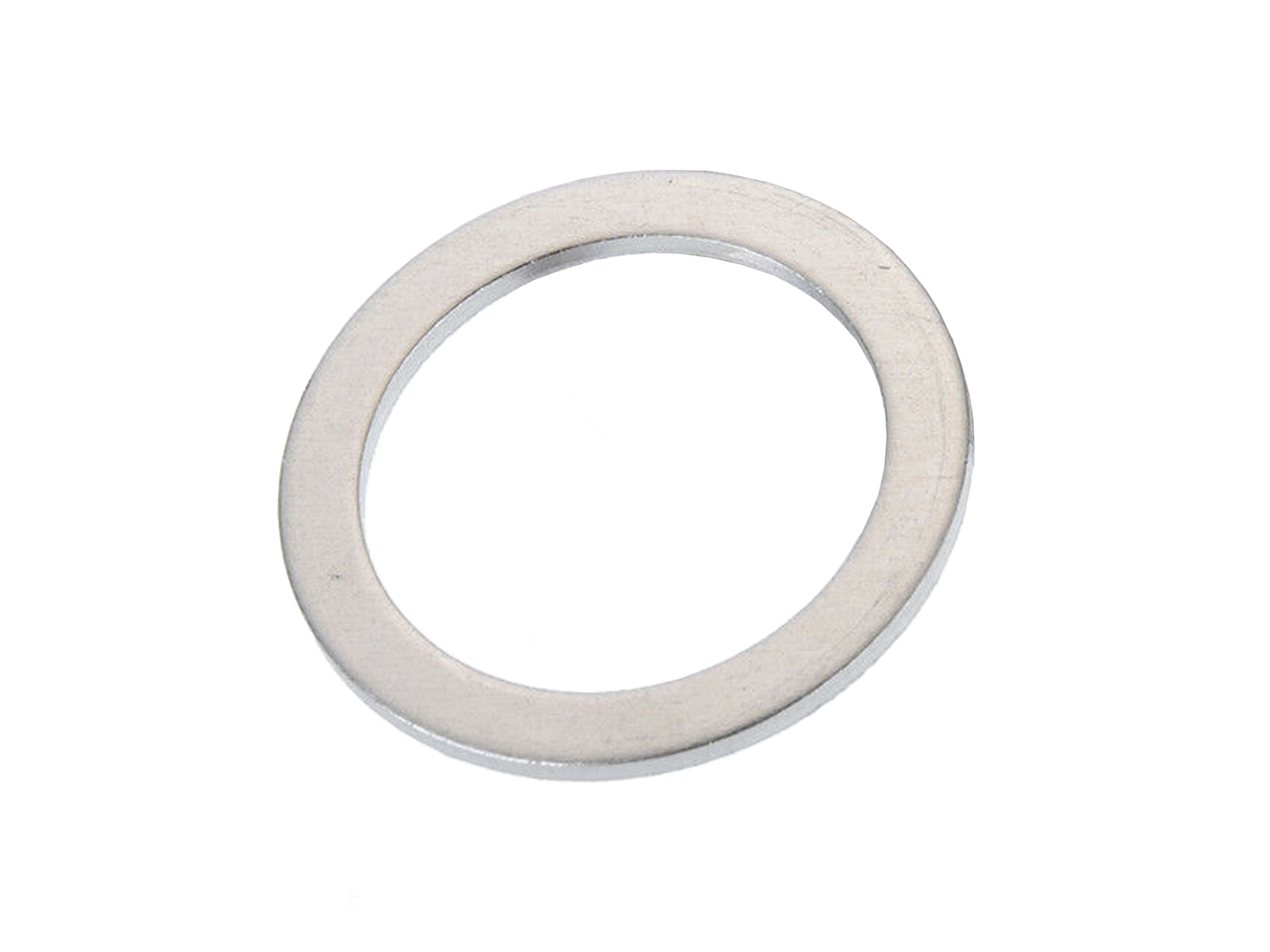

    Aluminiumbrickor DIN7603A

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Materialtjocklek Passar till metrisk gänga Passar till BSP gänga
    ABM-05 ABM-05 - ALUMINIUMBRICKA M5 5.0-9.0-1.0 DIN7603A 1 mm M5
    ABM-06 ABM-06 - ALUMINIUMBRICKA M6 6.0-10.0-1.0 DIN7603A 1 mm M6
    ABM-08 ABM-08 - ALUMINIUMBRICKA M8 8.0-12.0-1.0 DIN7603A 1 mm M8
    ABM-10 ABM-10 - ALUMINIUMBRICKA M10 10.0-16.0-1.0 DIN7603A 1 mm M10 G 1/8
    ABM-12 ABM-12 - ALUMINIUMBRICKA M12 12.0-16.0-1.5 DIN7603A 1.5 mm M12
    ABM-14 ABM-14 - ALUMINIUMBRICKA M14 14.0-20.0-1.5 DIN7603A 1.5 mm M14 G 1/4
    ABM-16 ABM-16 - ALUMINIUMBRICKA M16 16.0-22.0-1.5 DIN7603A 1.5 mm M16
    ABM-18 ABM-18 - ALUMINIUMBRICKA M18 18.0-24.0-1.5 DIN7603A 1.5 mm M18 G 3/8
    ABM-20 ABM-20 - ALUMINIUMBRICKA M20 20.0-26.0-1.5 DIN7603A 1.5 mm M20
    ABM-22 ABM-22 - ALUMINIUMBRICKA M22 22.0-27.0-1.5 DIN7603A 1.5 mm M22 G 1/2
    ABM-24 ABM-24 - ALUMINIUMBRICKA M24 24.0-30.0-2.0 DIN7603A 2 mm M24 G 5/8
    ABM-26 ABM-26 - ALUMINIUMBRICKA M26 26.0-32.0-2.0 DIN7603A 2 mm M26
    ABM-28 ABM-28 - ALUMINIUMBRICKA M28 28.0-34.0-2.0 DIN7603A 2 mm M28 G 3/4
    ABM-30 ABM-30 - ALUMINIUMBRICKA M30 30.0-36.0-2.0 DIN7603A 2 mm M30
    ABM-32 ABM-32 - ALUMINIUMBRICKA M32 32.0-38.0-2.0 DIN7603A 2 mm M32
    ABM-36 ABM-36 - ALUMINIUMBRICKA M36 36.0-42.0-2.0 DIN7603A 2 mm M36 G 1
    ABM-38 ABM-38 - ALUMINIUMBRICKA M38 38.0-44.0-2.0 DIN7603A 2 mm M38
    ABM-40 ABM-40 - ALUMINIUMBRICKA M40 40.0-47.0-2.0 DIN7603A 2 mm M40
    ABM-42 ABM-42 - ALUMINIUMBRICKA M42 42.0-49.0-2.0 DIN7603A 2 mm M42 G 1.1/4
    ABM-45 ABM-45 - ALUMINIUMBRICKA M45 45.0-52.0-2.0 DIN7603A 2 mm M45 G 1.1/4
    ABM-48 ABM-48 - ALUMINIUMBRICKA M48 48.0-55.0-2.0 DIN7603A 2 mm M48 G 1.1/2
    ABR-02 ABR-02 - ALUMINIUMBRICKA G1/8 10.0-14.0-1.0 DIN7603A G 1/8
    ABR-04 ABR-04 - ALUMINIUMBRICKA G1/4 14.0-18.0-1.5 DIN7603A G 1/4
    ABR-06 ABR-06 - ALUMINIUMBRICKA G3/8 18.0-24.0-1.5 DIN7603A 1.5 mm M18 G 3/8
    ABR-08 ABR-08 - ALUMINIUMBRICKA G1/2 22.0-27.0-1.5 DIN7603A 1.5 mm M22 G 1/2
    ABR-10 ABR-10 - ALUMINIUMBRICKA G5/8 24.0-30.0-2.0 DIN7603A 2 mm M24 G 5/8
    ABR-12 ABR-12 - ALUMINIUMBRICKA G3/4 28.0-34.0-2.0 DIN7603A 2 mm M28 G 3/4
    ABR-16 ABR-16 - ALUMINIUMBRICKA G1 35.0-41.0-2.0 DIN7603A G 1
    ABR-20 ABR-20 - ALUMINIUMBRICKA G1.1/4 42.0-49.0-2.0 DIN7603A 2 mm M42 G 1.1/4
    ABR-24 ABR-24 - ALUMINIUMBRICKA G1.1/2 48.0-55.0-2.0 DIN7603A 2 mm M48 G 1.1/2
    ABR-32 ABR-32 - ALUMINIUMBRICKA G2 60.0-68.0-2.5 DIN7603A G 2
    Märke namn
    Hydraspecma
    Packningsmaterial
    Aluminium
    Standard DIN
    DIN 7603A
    Temperatur max.
    +200
    Temperatur min.
    -200
    Tillverkningsmaterial
    Aluminium
