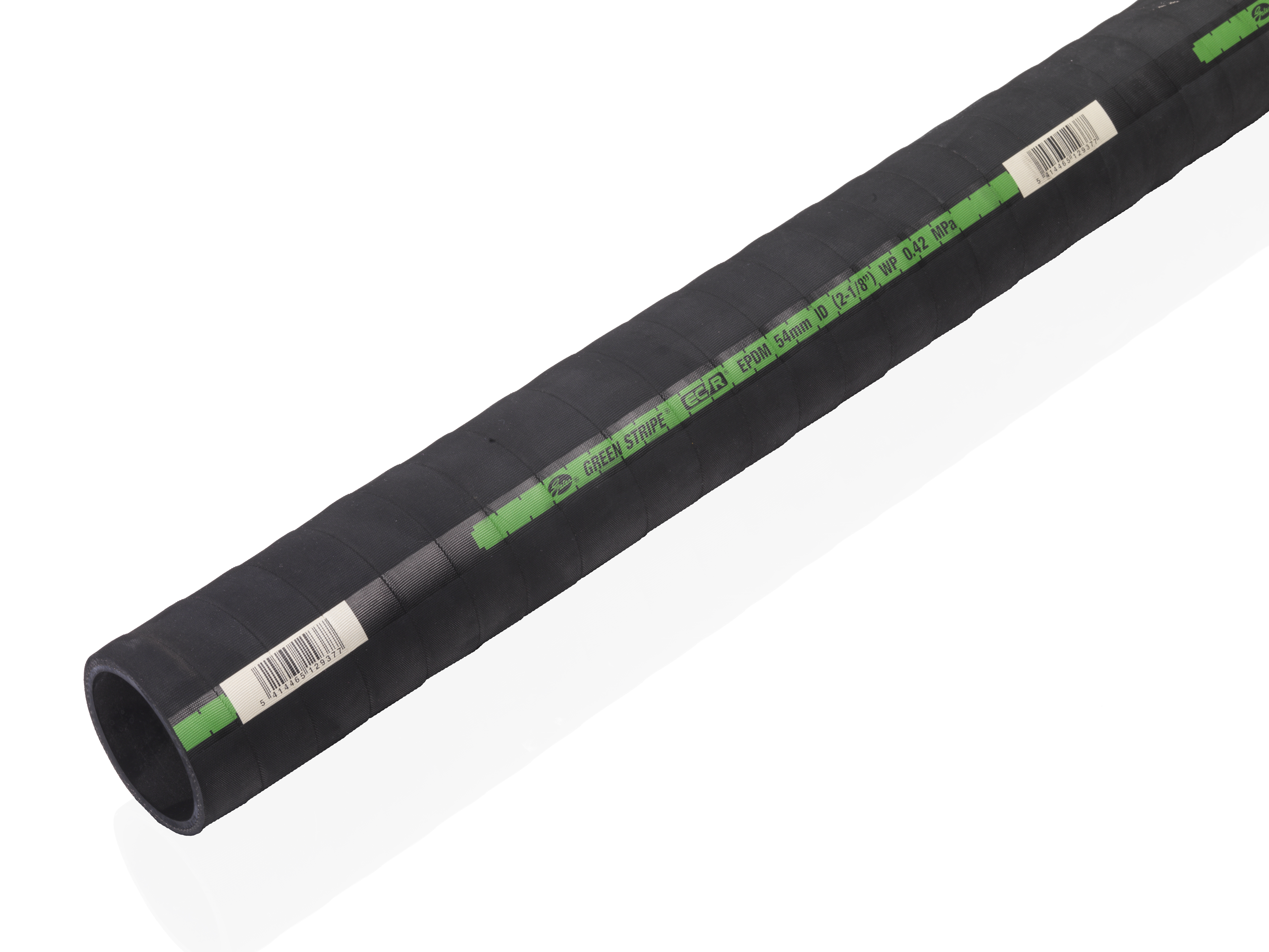

Cooler hose Gates 4168, Greenstripe

VÄLJ VARIANT

Artikelnummer	Beskrivning	Diameter inv.	Diameter utv.
4168-08019	KYLARSLANG GREEN STRIPE 19/30 X 1MT -40C - +135C, 3/4 Marin	19 mm	30 mm
4168-08022	KYLARSLANG GREEN STRIPE 22/33 X 1MT -40C - +135C, 7/8 Marin	22 mm	33 mm
4168-08025	KYLARSLANG GREEN STRIPE 25/36 X 1MT -40C - +135C, 1tum Marin	25 mm	36 mm
4168-08029	KYLARSLANG GREEN STRIPE 29/39 X 1MT -40C - +135C, 1.1/8	29 mm	39 mm
4168-08032	KYLARSLANG GREEN STRIPE 32/42 X 1MT -40C - +135C, 1.1/4	32 mm	42 mm
4168-08035	KYLARSLANG GREEN STRIPE 35/46 X 1MT -40C - +135C, 1.3/8	35 mm	46 mm
4168-08038	KYLARSLANG GREEN STRIPE 38/49 X 1MT -40C - +135C, 1.1/2	38 mm	49 mm
4168-08041	KYLARSLANG GREEN STRIPE 41/52 X 1MT -40C - +135C, 1.5/8	41 mm	52 mm
4168-08044	KYLARSLANG GREEN STRIPE 44/55 X 1MT -40C - +135C, 1.3/4	44 mm	55 mm
4168-08048	KYLARSLANG GREEN STRIPE 48/58 X 1MT -40C - +135C, 1.7/8	48 mm	58 mm
4168-08051	KYLARSLANG GREEN STRIPE 51/61 X 1MT -40C - +135C, 2tum	51 mm	61 mm
4168-08054	KYLARSLANG GREEN STRIPE 54/65 X 1MT -40C - +135C, 2.1/8	54 mm	65 mm
4168-08057	KYLARSLANG GREEN STRIPE 57/68 X 1MT -40C - +135C, 2.1/4	57 mm	68 mm
4168-08060	KYLARSLANG GREEN STRIPE 60/71 X 1MT -40C - +135C, 2.3/8	60 mm	71 mm
4168-08064	KYLARSLANG GREEN STRIPE 64/74 X 1MT -40C - +135C, 2.1/2	64 mm	74 mm
4168-08067	KYLARSLANG GREEN STRIPE 67/77 X 1MT -40C - +135C, 2.5/8	67 mm	77 mm
4168-08070	KYLARSLANG GREEN STRIPE 70/81 X 1MT -40C - +135C, 2.3/4	70 mm	81 mm
4168-08073	KYLARSLANG GREEN STRIPE 73/84 X 1MT -40C - +135C, 2.7/8	73 mm	84 mm
4168-08076	KYLARSLANG GREEN STRIPE 76/87 X 1MT -40C - +135C, 3tum	76 mm	87 mm
4168-08083	KYLARSLANG GREEN STRIPE 83/93 X 1MT -40C - +135C, 3.1/4	83 mm	93 mm
4168-08089	KYLARSLANG GREEN STRIPE 89/100 X 1MT -40C - +135C, 3.1/2	89 mm	100 mm
4168-08102	KYLARSLANG GREEN STRIPE 102/112 X 1MT -40C - +135C, 4tum	102 mm	112 mm
4168-08114	KYLARSLANG GREEN STRIPE 114/125 X 1MT -40C - +135C, 4.1/2	114 mm	125 mm

Specifikationer
Dimensioner och frakt (välj variant)

Märke namn

Gates

REACH compliant

RoHs compliant

Standard SAE

SAE 20R1 EC Class D-1

Produktinformation
Måttskiss (välj variant)
