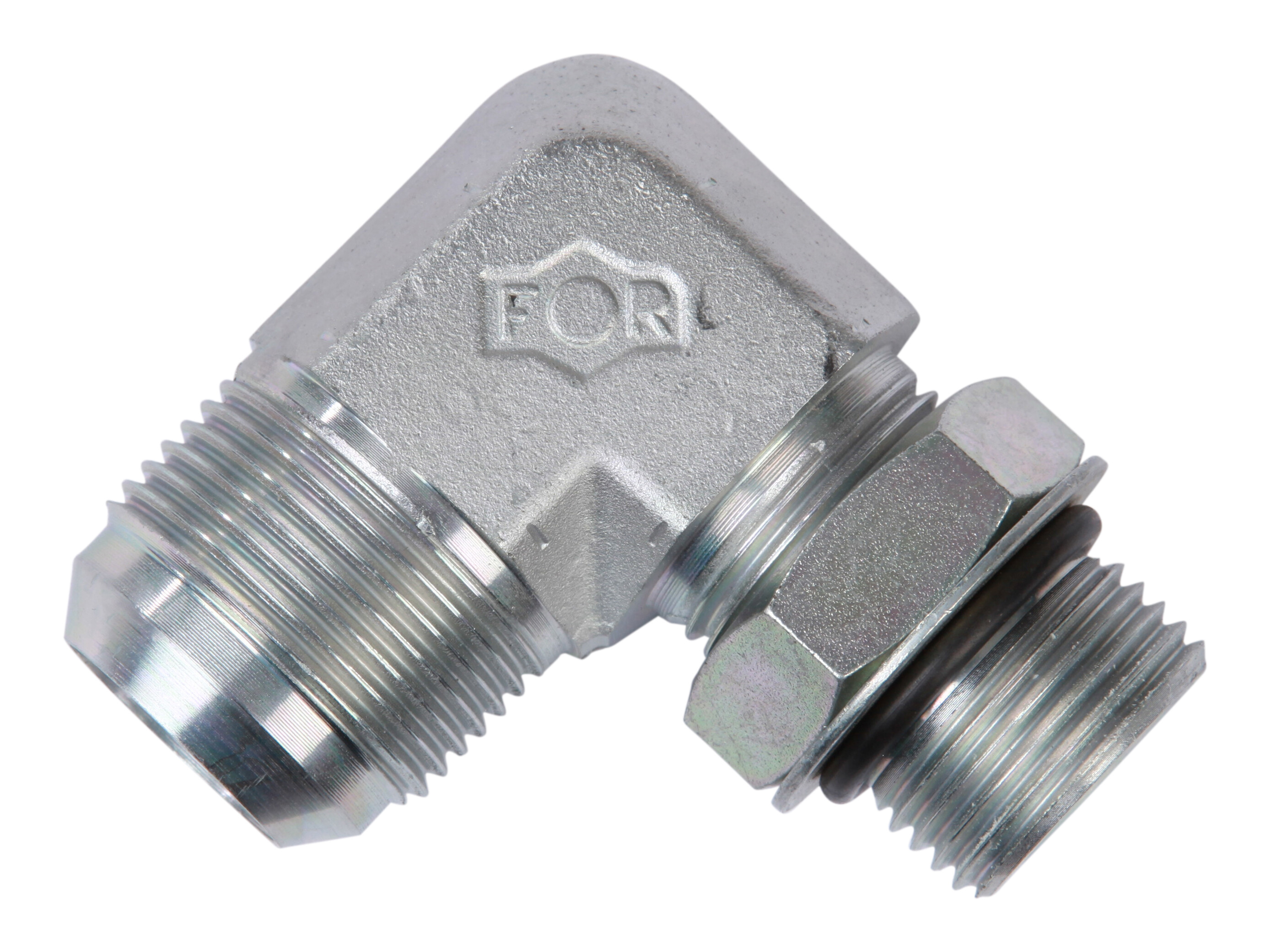

Adapter 90K, Utv-JIC, Utv-UNF, Ställbar
ADAPTER 90K UTV-JIC UTV-UNF
Varenummer:
JWEEU-08-06
Pakke str.:
5 st
Min. bestillingsenhed er:
5 st
Angle
90 °
B
31,5 mm
Brand Name
FOR
C
33,5 mm
CH
17 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm
Dimension F
9/16-18 UNF
F
9/16-18 UNF
J
3/4-16 JIC
Material
Stål
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
El-förzinkad / vitkromaterad
T
12 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
3/4-16 JIC
Thread outer
9/16-18 UNF
Package size
5 st
Barcode
129943
Gross weight
0,112 Kg
Net weight
0,112 Kg
Country of origin
ita
ADAPTER 90K UTV-JIC UTV-UNF
Note: Opening 3D files requires a program that supports the file format
