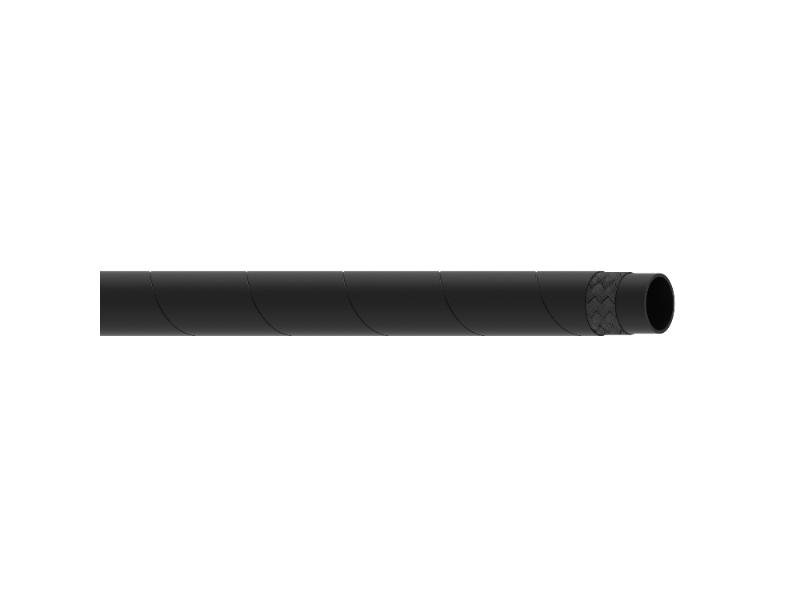

Oilhose SAE100R6 EN8541TE 19x26.4 21 Bar MSHA

Oilhose SAE100R6 EN8541TE 6.4x13.2 28 Bar MSHA

Oilhose SAE100R6 EN8541TE 7.9x14.7 28 Bar MSHA

Oilhose SAE100R6 EN8541TE 9.5x16.3 28 Bar MSHA

Oilhose SAE100R6 EN8541TE 12.7x19.7 28 Bar MSHA

Oilhose SAE100R6 EN8541TE 15.9x23.9 24 Bar MSHA

Oilhose SAE100R6 EN8541TE 19x26.4 21 Bar MSHA

Oilhose SAE100R6 EN8541TE 25.4x33.8 20 Bar MSHA

SELECT VARIANT

Partnumber	Description	Pressure max.	Pressure burst min.	Bend radius
WH005-04	Oilhose SAE100R6 EN8541TE 6.4x13.2 28 Bar MSHA	28 bar	112 bar	45 mm
WH005-05	Oilhose SAE100R6 EN8541TE 7.9x14.7 28 Bar MSHA	28 bar	112 bar	65 mm
WH005-06	Oilhose SAE100R6 EN8541TE 9.5x16.3 28 Bar MSHA	28 bar	112 bar	75 mm
WH005-08	Oilhose SAE100R6 EN8541TE 12.7x19.7 28 Bar MSHA	28 bar	112 bar	90 mm
WH005-10	Oilhose SAE100R6 EN8541TE 15.9x23.9 24 Bar MSHA	24 bar	96 bar	115 mm
WH005-12	Oilhose SAE100R6 EN8541TE 19x26.4 21 Bar MSHA	21 bar	84 bar	140 mm
WH005-16	Oilhose SAE100R6 EN8541TE 25.4x33.8 20 Bar MSHA	20 bar	80 bar	150 mm

Area of use

Air, Diesel, Grease, Oil, Water

Brand Name

Danfoss

Cover

Synthetic rubber

Field of application

Air, Olie, Water

Flameresistant

Yes

Hoseapprovals

MSHA

Reinforcement

Synthetic fiber

Standard EN

EN 854 1TE

Standard SAE

SAE 100R6

Temperature max.

+100

Temperature min.

-40

Tube

NBR (Nitrile)
