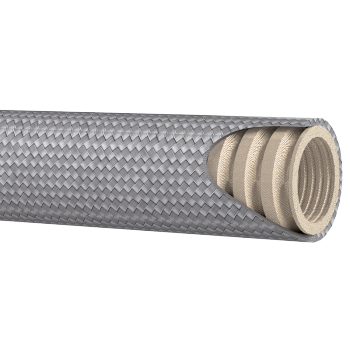

PTFE Hose 1W Convoluted DNV

SELECT VARIANT
Partnumber Description Pressure max. Pressure burst min. Bend radius
7401-06 PTFE Hose 3/8" 1W convoluted DNV 125 bar 500 bar 50 mm
7401-08 PTFE Hose 1/2" 1W Convoluted DNV 105 bar 420 bar 65 mm
7401-12 PTFE Hose 3/4" 1W Convoluted DNV 90 bar 360 bar 100 mm
7401-16 PTFE Hose 1" 1W Convoluted DNV 80 bar 320 bar 125 mm
7401-20 PTFE Hose 1.1/4" 1W Convoluted DNV 64 bar 256 bar 150 mm
Hoseapprovals
DNV-GL

Material
PTFE (Teflon®), Stainless steel

Material quality
1.4301 / AISI304

Temperature max.
+150

Temperature min.
-50
